6.8.5.4
SERIAL INTERFACE SETUP Screen
The SERIAL INTERFACE SETUP screen allows configuring the RS232 serial interface and is
accessed from the "INTERFACE SETUP" screen.
The following parameters can be set on this screen:
Bits per second
Data bits
Parity
Stop bits
Flow control
The following soft keys are available from the SERIAL INTERFACE SETUP screen:
SOFT KEY
Apply (SK1)
Cancel (SK2)
-
-
Back (SK5)
Entire Contents Copyright
2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual

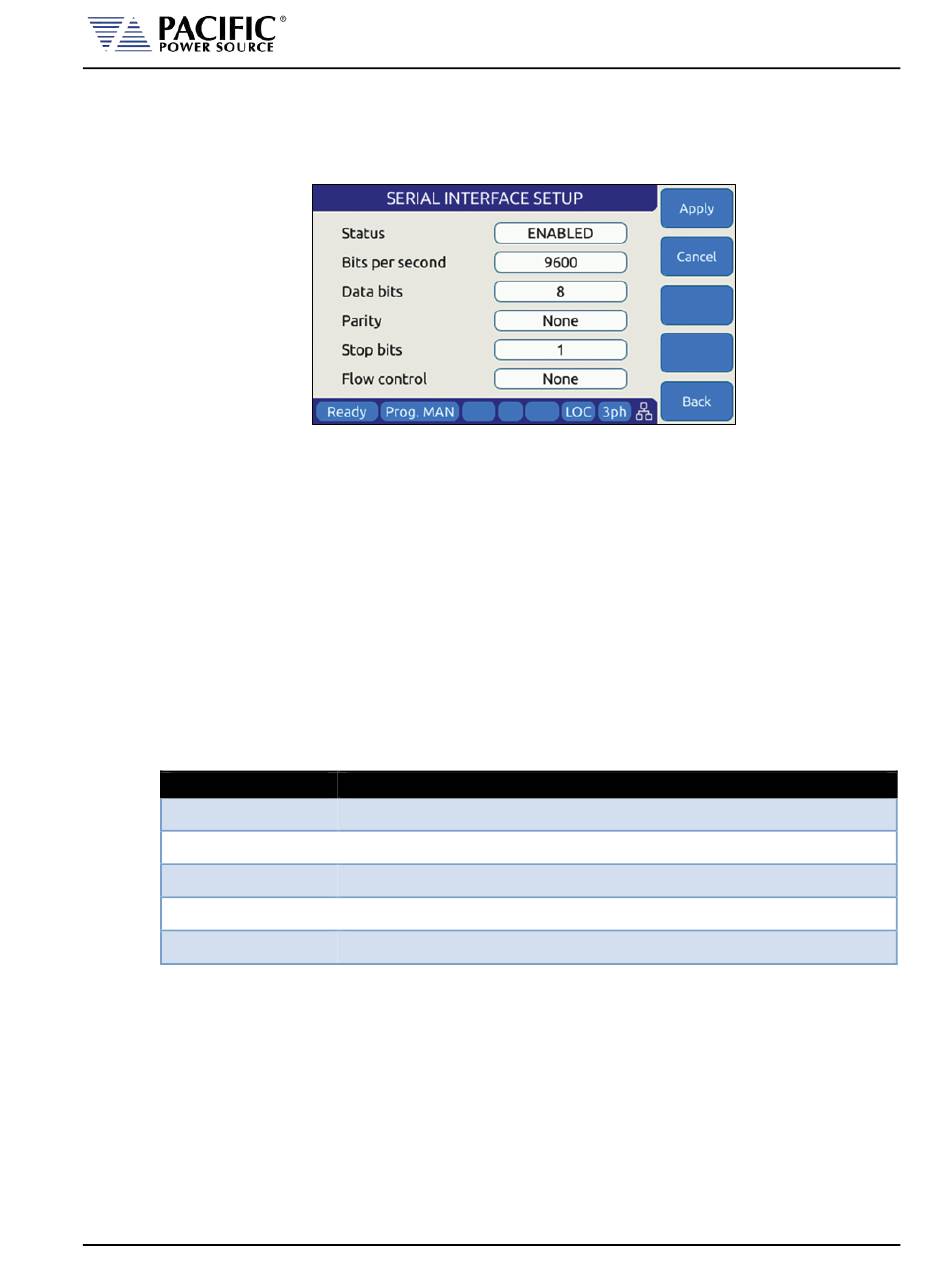

Figure 6-18: SERIAL INTERFCE SETUP Screen
Sets the baud rate. Available settings are
9600, 14400, 19200, 38400, 57600 or 115200.
Sets the number of bits per frame. Available settings are 7
or 8 bits
Sets parity check to either odd, even or none.
Sets the number of stop bits as either 1 or 2.
Sets handshake mode to None or Xon/Xoff
Description
Accepts new settings and returns to previous screen.
Returns to the previous screen.
Returns to the previous screen.
Table 6-17: Available SERIAL INTERFACE SETUP screen soft keys
