Figure 4-1: Output Voltage Distortion Into Full R Load As A Function Of Frequency - Pacific Power Source ADF Series Operation Manual

AC OUTPUT
Note 4: FREQUENCY PROGRAM RESOLUTION FOR EXPORT MODELS WITH OPTION E (-4GE, -2GE):
Per U.S.A. Bureau of Industry and Security, ECCN 3A225, frequency control is limited to no better than 0.2%
at frequencies of 600 Hz. or more for unrestricted export products. To meet that requirement, frequency
programming in all -2GE and -4GE ADF models has three resolution ranges, which round the frequency to
the nearest increment, as defined in the table below.
Frequency Resolution for Export Models
Range
1.00 - 99.99 Hz
100-599.9 Hz
600 - 999 Hz
1000 - 1200 Hz
Note 5: Refer to Voltage / Current ratings tables.
Note 6: Actual output phase angles may be slightly different from programmed values for highly unbalanced three
phase load conditions, in particular at high frequency due to amplifier phase shift differences.

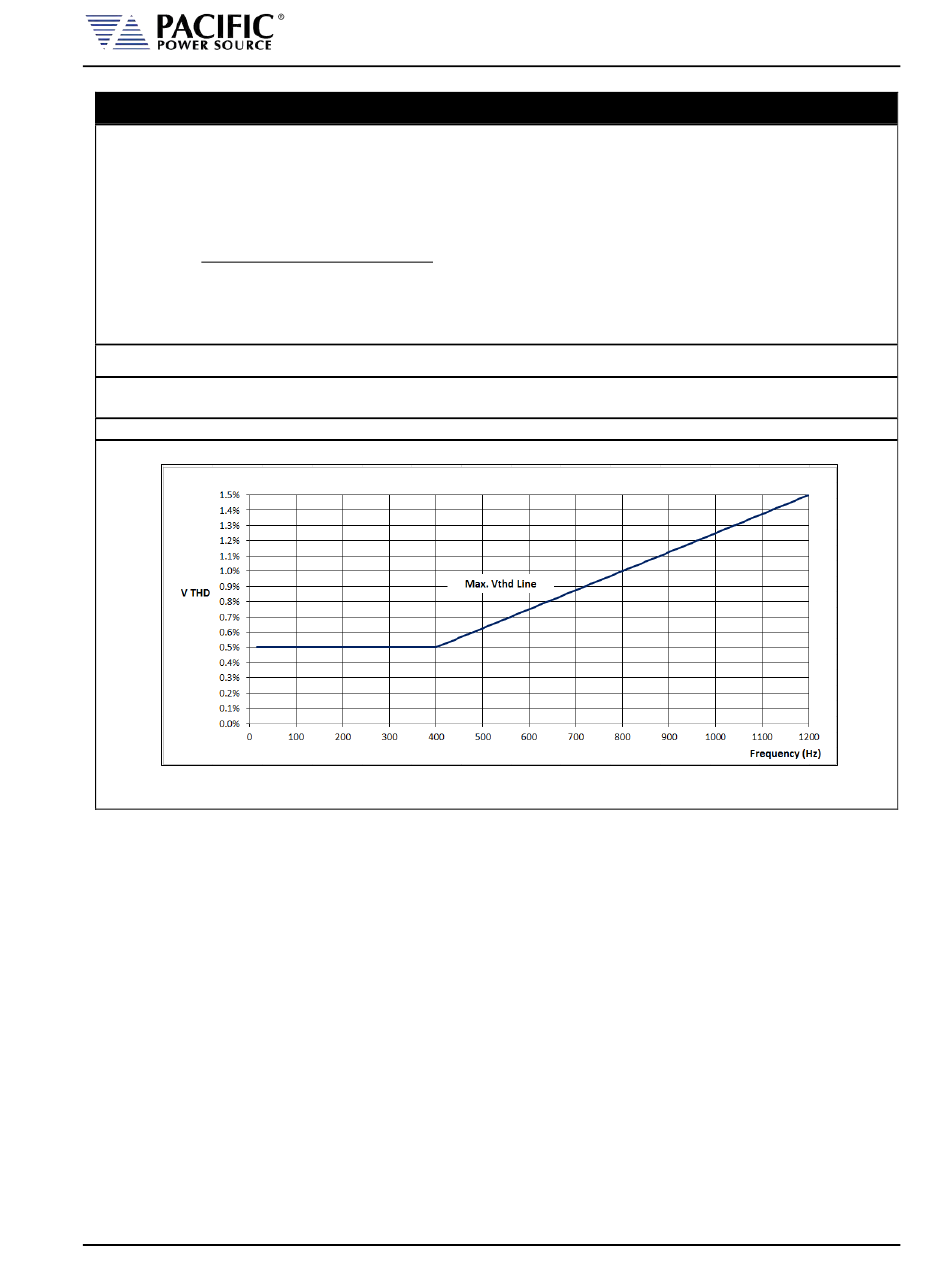

Figure 4-1: Output Voltage distortion into full R Load as a function of Frequency


