Three Phase Measurement Screen Soft Keys - Pacific Power Source ADF Series Operation Manual

6.5.2

Three Phase Measurement Screen Soft Keys

The following five soft keys are available on the three-phase measurement screen.
SOFT KEY
Meas. Page 2
(SK1)
Fault Status (SK2)
(SK 4)-

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual
Description
The first soft key allows toggling between the two available
measurement screens. The same can be accomplished by pressing
the MEAS button on the left hand side of the LCD display.

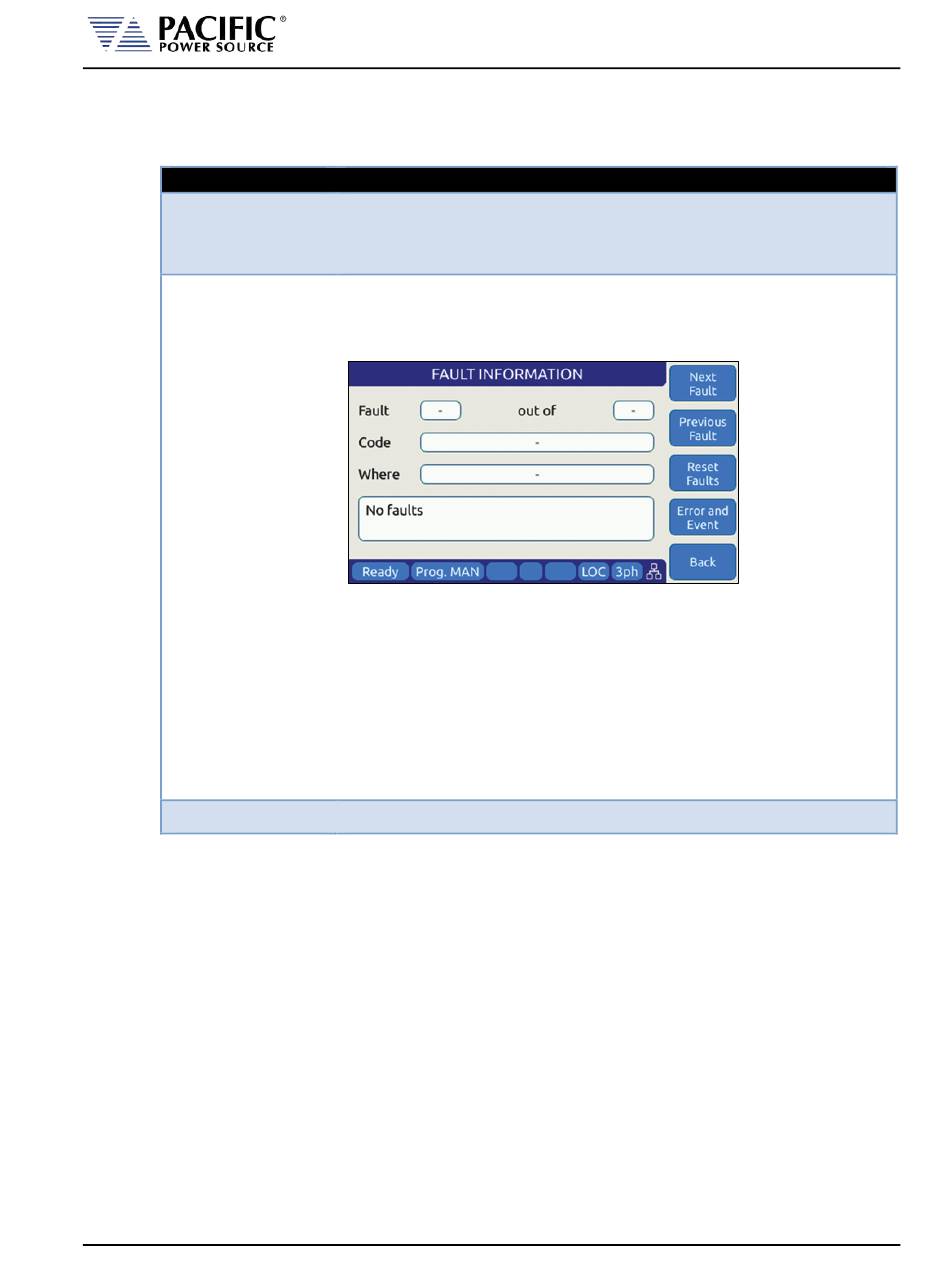

Pressing this soft key displays the Fault Status screen. The fault
status shows a history list of possible error or fault messages that
have been recorded by the power source.
The following soft keys are available to review or clear fault
messages:
Next Fault Scrolls to the next available fault message if
any.
Previous Fault Scrolls to the previous fault message if any.
Reset Faults Clear Fault Buffer
Clean and Refresh Clears displayed faults and updates
N/A
