6.8.6

UNIT INFORMATION Screen

The UNIT INFORMATION screen is an information only screen that contains information
about the power source and is accessed from the SYSTEM SETTINGS screen using the "Unit
info" soft key (SK3).
The following information is provided on this screen:
Unit Number
Front panel status
Front panel FW ver.
Power stage FW ver.
Hardware revision
Serial number
Model
Note: This information is for information purposes only and cannot be changed by the
operator.
The following soft keys are available from the UNIT INFORMATION screen:
SOFT KEY
Next Unit (SK1)
Previous Unit
(SK2)
-
-
Back (SK5)

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual

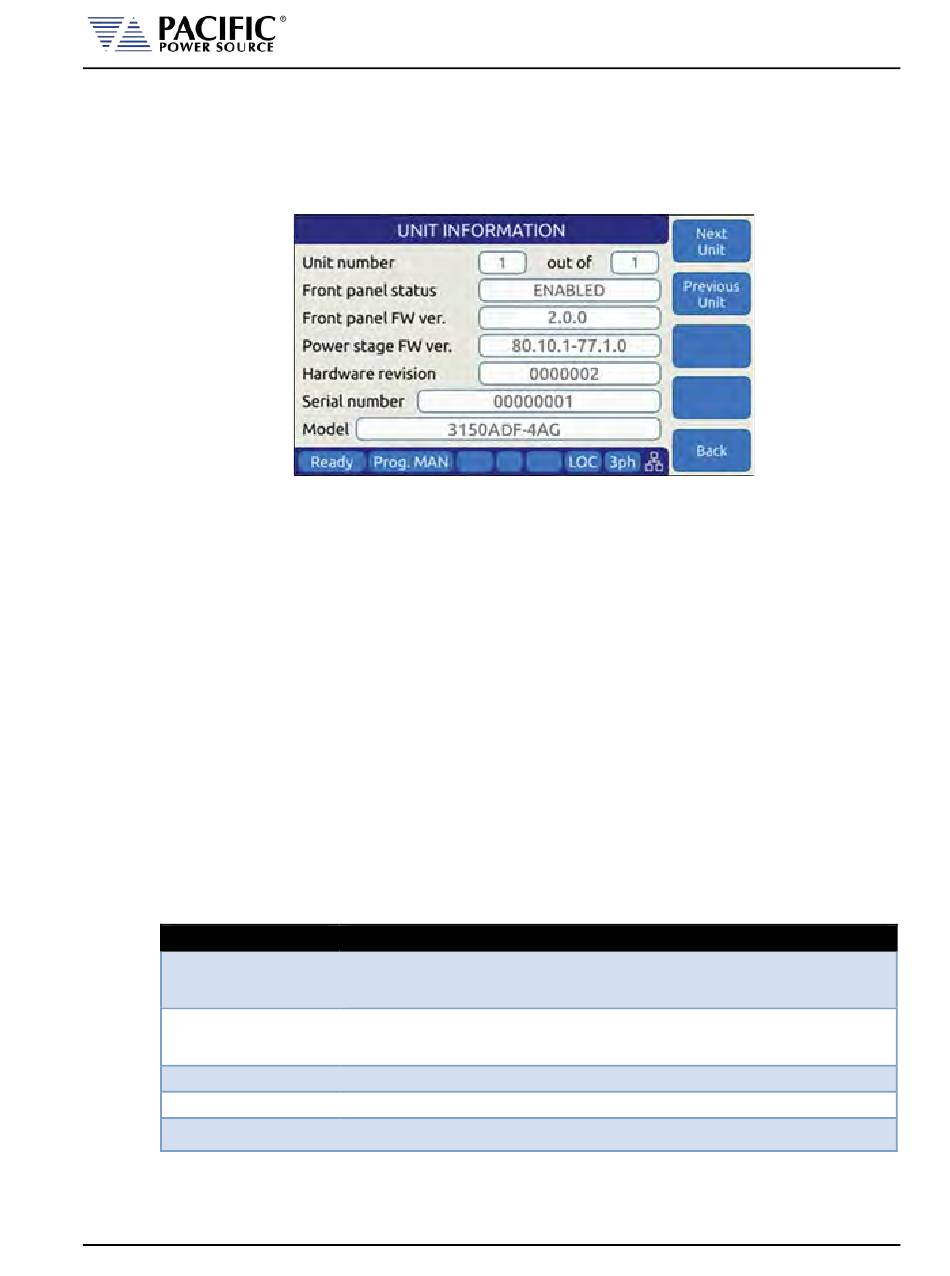

Figure 6-22: UNIT INFORMATION Screen
Shows the position of this unit in a string of paralleled
power sources. For a stand-alone power source, the display
will show 1 of 1.
Shows the status of the front panel. Only the MASTER unit
in a multi-unit system will have its front panel enabled.
Firmware revision of the front panel control processor.
Firmware revision of the power stage processors.
Hardware build revision.
Unit Serial number.
Model number, typically 1xxxADX or 3xxxADX where xxx =
power rating.
Description
If this unit is part of a parallel system, information on the next unit
in the chain will be displayed.
If this unit is part of a parallel system, information on the previous
unit in the chain will be displayed.
Returns to the previous screen.

Table 6-20: Available UNIT INFORMATION screen soft keys
