Figure 5-26: Multi-Cabinet Parallel Configuration Output Wiring - 3 Phase - Pacific Power Source ADF Series Operation Manual

AFX CABINET 1
MASTER
PARALLELING
CABLE
From bottom unit in
Master Cabinet to top
unit in Slave Cabinet
BUNDLE PHASE WIRES
WITH NEUTRAL WIRE(S)
ALL WIRES LENGTHS
MUST BE EQUAL
PARALLEL OPERATION ADF CABINET OUTPUT WIRING AND
CHASSIS GROUND INTERCONNECT

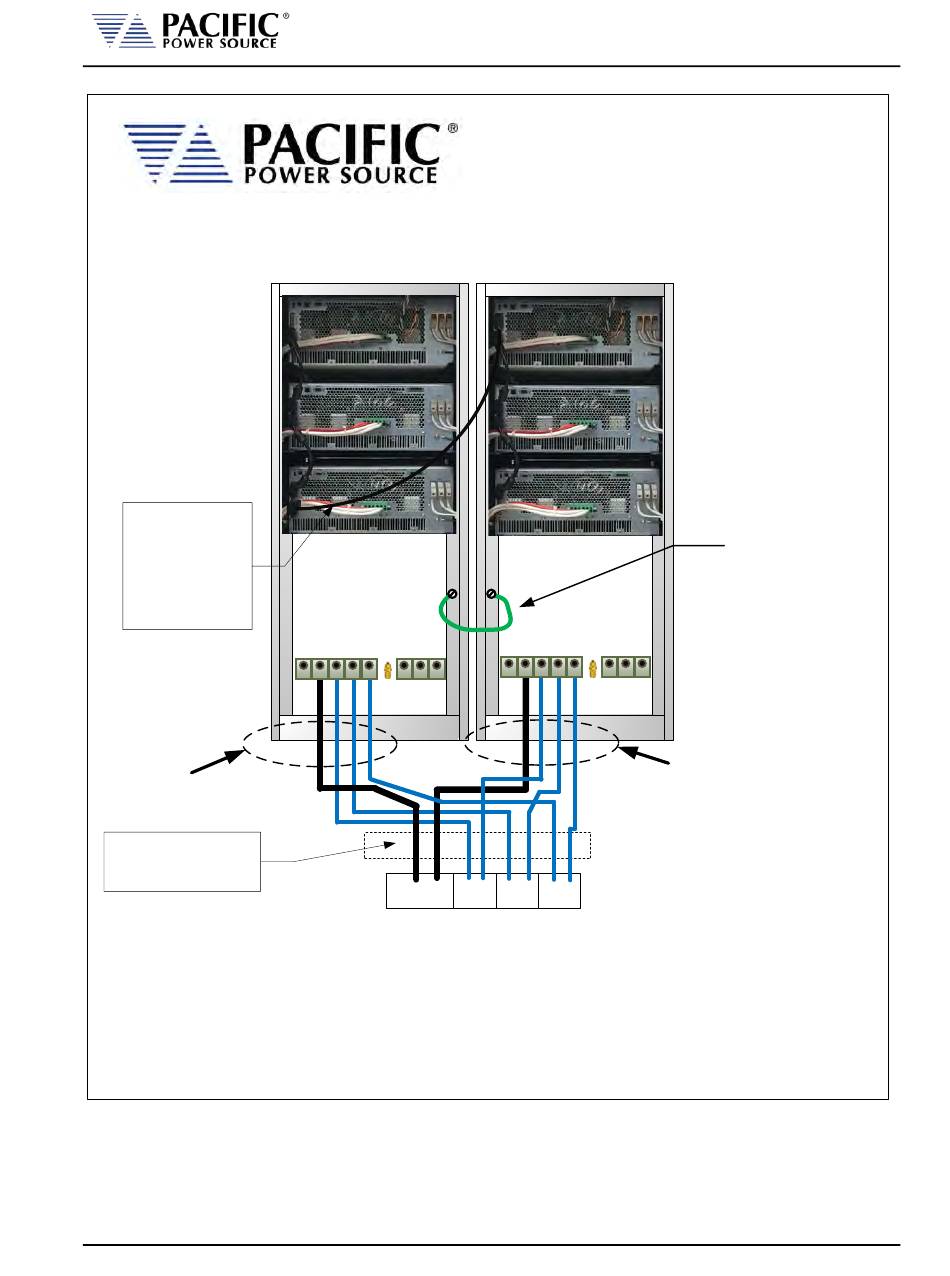

Figure 5-24: Multi-Cabinet Parallel Configuration Output Wiring - 3 Phase

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual
28 U
N N C B A AC INPUT
N N C
TO LOAD
ADF SERIES® OPERATION MANUAL
SECTION 5: UNPACKING AND INSTALLATION
28 U
N N C B A AC INPUT
BUNDLE PHASE WIRES
WITH NEUTRAL WIRE(S)
JUNCTION
B A
TERMINAL
BLOCK
AFX CABINET 2
SLAVE
CONNECT
PROVIDED
GROUNDING CABLE
BETWEEN CABINETS
Page 80 of 349
