5.14.4 Single Phase Load Output Connection – 1150ADF Only
Connection of a single phase load can be accomplished by using the single phase shorting
connector . (Part number 160086) provided in the 1150ADF ship kit. This requires shorting
of the three phase outputs.
Connect phase A output to the Line connection of the AC load. Connect the neutral output
to the Neutral connection of the AC load. Refer to Figure 5-13 for single-phase load
connection diagram.

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual

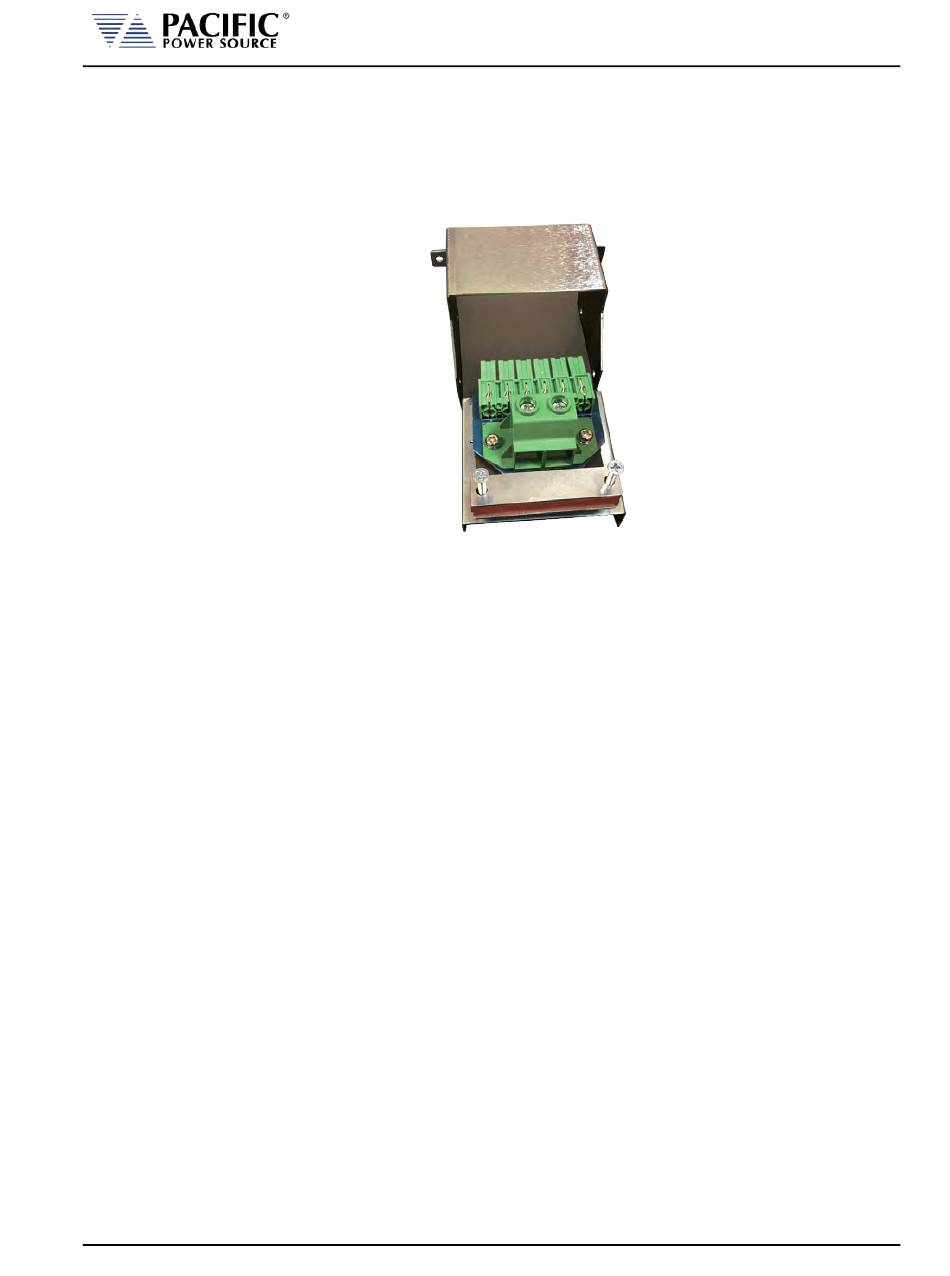

Figure 5-12: 1150 ADF Single Phase Shorting Adaptor assembly

ADF SERIES® OPERATION MANUAL
SECTION 5: UNPACKING AND INSTALLATION
Page 58 of 349
