7.3.7.2 SYNC Status Display
A "Synced" status field will be displayed in
This field will toggle with the regular "Ready/Enabled/Fault" status field also shown in this
location. The "Synced" status will be shown every 3 seconds for 1 second in place of the
"Ready/Enabled/Fault" field. When the PLL is not locked to the external source, the unit will
display an "Unsynced" status in Orange.
It is not recommended to enable the unit when it has not locked or synchronized to the
external source because the frequency may be unknown.
7.3.7.3 Sync Operation Settings
The ADF allows precise configuration of the synchronization parameters to optimize
performance for each application. The parameters are:
1 Phase shift: Defines a fixed phase shift between phase A waveform generation and
the external sync source. Used to calibrate any phase difference between the sync
signal and the power source output on phase A.
Command: SOURce:SYNChronize:PHASEshift
2 Speed: Allows accelerating the speed of the internal synchronization engine (PLL) in
case the external sync source is not constant and presents periodic or continuous
changes. A slower speed improves the stability of the waveform frequency, so it is

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual

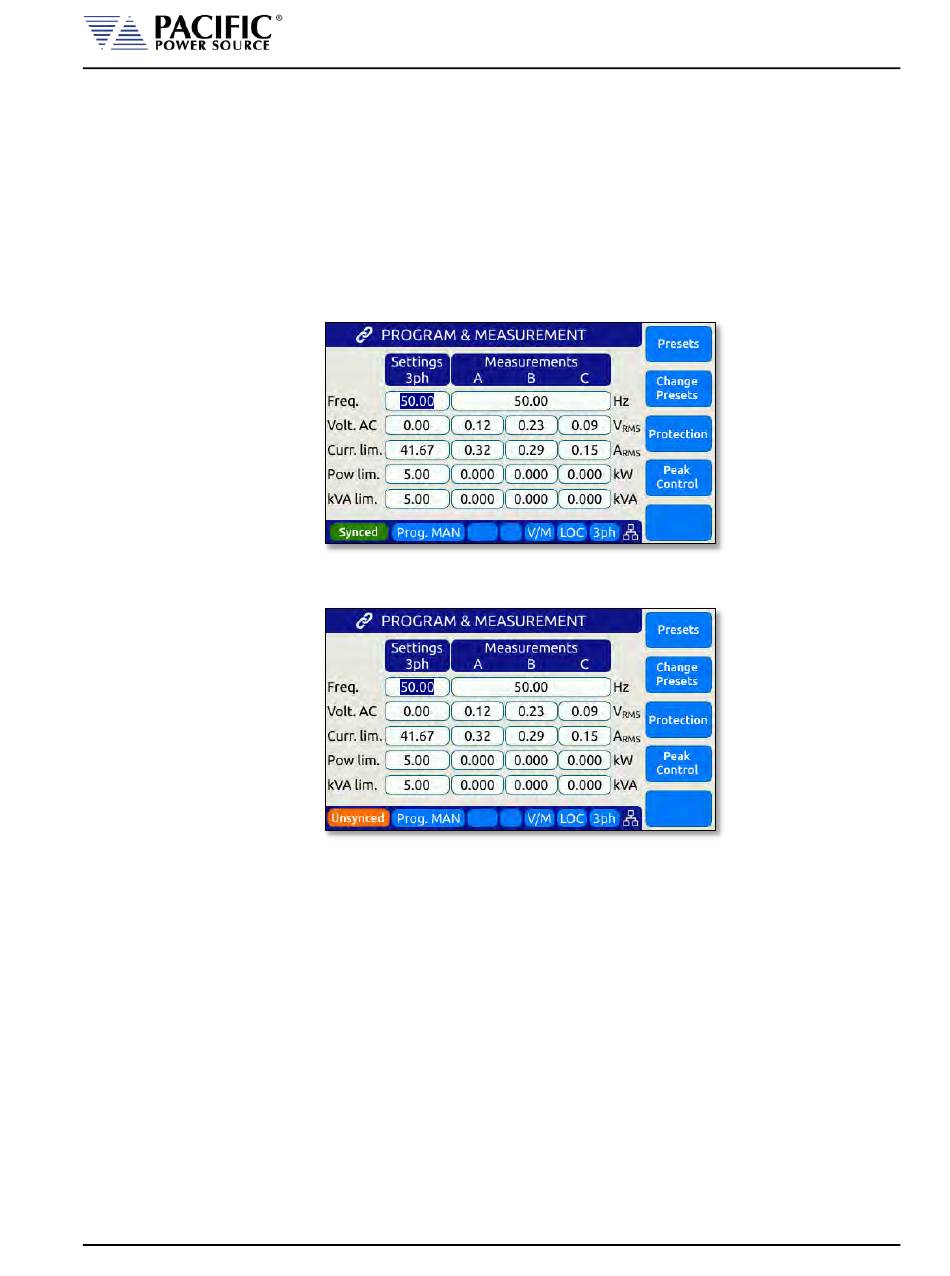

Figure 7-5: External Sync Input Sync Status Indication
Figure 7-6: External Sync Input Sync Lost Status Indication
ADF SERIES™ OPERATION MANUAL
Rear Panel, Connectors and Protection
SECTION 7:
Green
in the lower left corner of the LCD display.
