Figure 5-9: Three Phase Wye Load Output Connections - External Voltage Sense - Pacific Power Source ADF Series Operation Manual

ADF SERIES® OPERATION MANUAL
SECTION 5: UNPACKING AND INSTALLATION
TWIST LINE & NEUTRAL FOR
EACH PHASE
NOTE: THREE NEUTRAL
OUTPUT CONNECTOR PINS
(N N N) ARE INTERNALLY
SHORTED TOGETHER.
USE EITHER ONE OR ALL
L2 (B)
FOR THREE PHASE WYE
LOADS.
N
L3 (C)
L1 (A)
USE PROVIDED MATING CONNECTOR
TO CONNECT LOAD WIRES

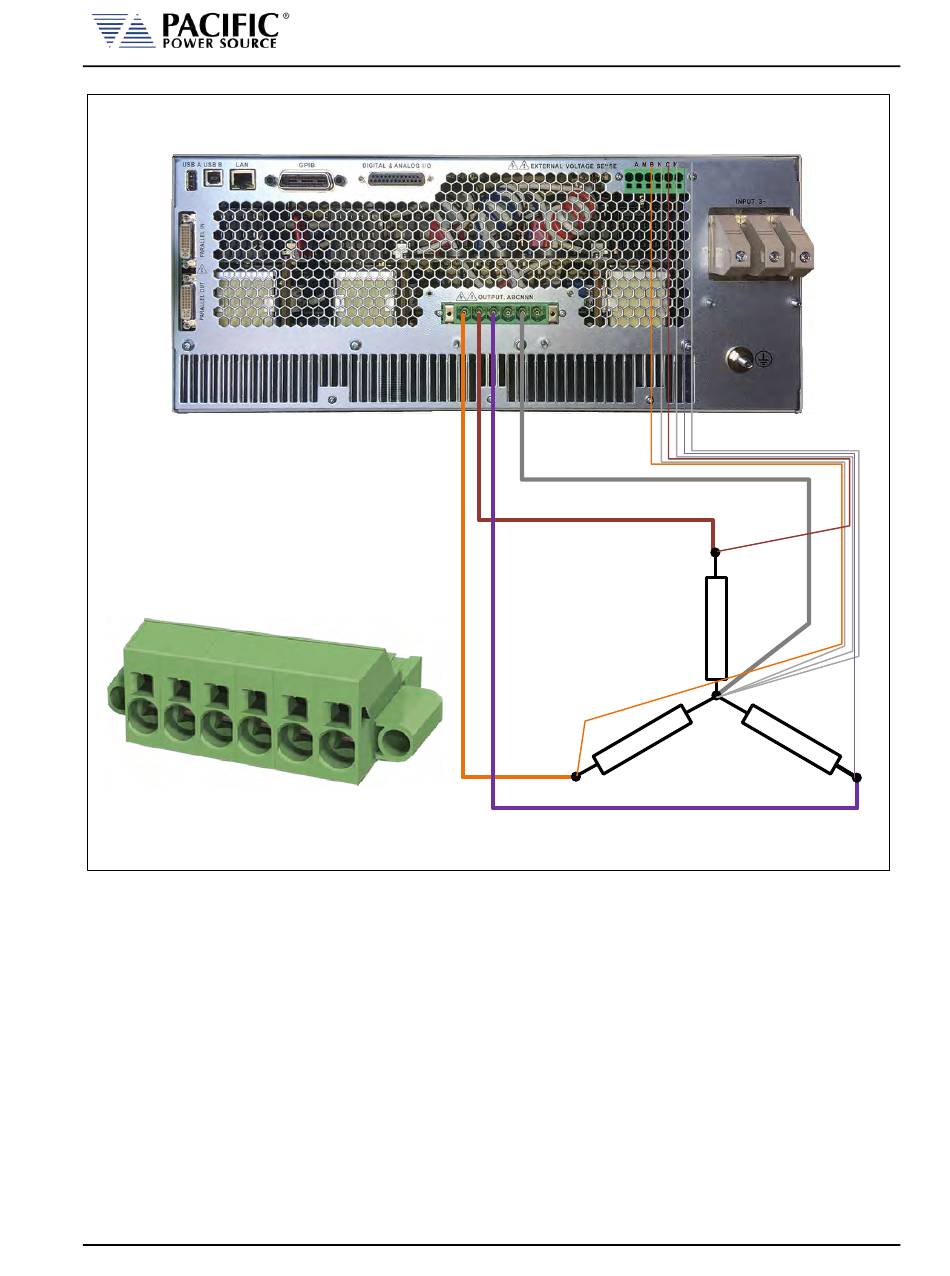

Figure 5-9: Three phase Wye Load Output Connections – External Voltage Sense

