6.7.6

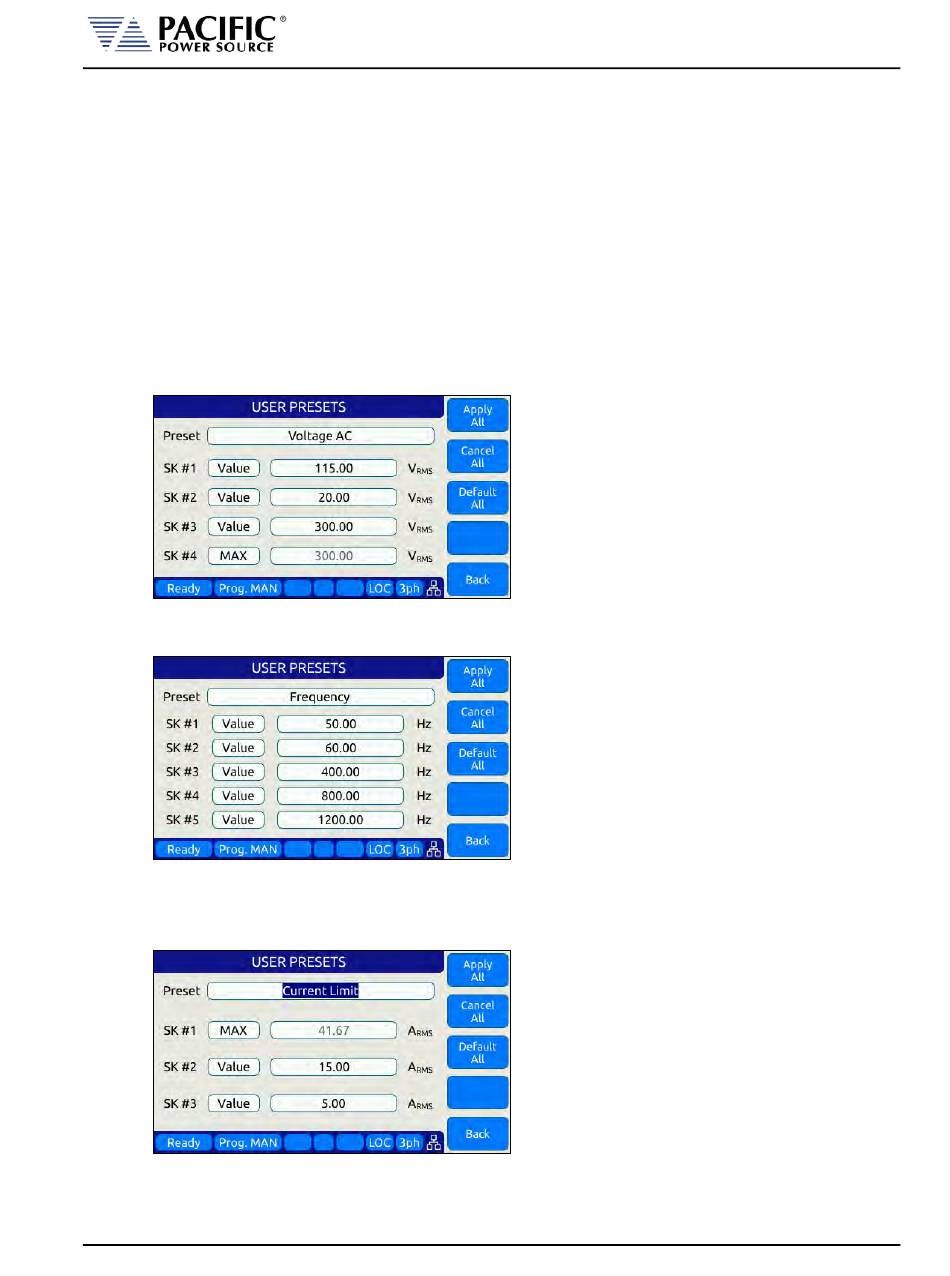

USER PRESETS Screen
The USER PRESETS screen allows the soft key set values for output programming that
appear in the PROGRAM screen to be changed to setting values preferred by the user.
Presets can be defined for the following output settings:
VOLTage[:AC]
•
FREQuency
•
CURRent:LIMit
•
POWer:LIMit
•
KVA:LIMit
•
6.7.6.1
AC Voltage Soft keys
6.7.6.2
Frequency Soft keys
Note: Preset value higher than 500.00 Hz are only available on ADF Models with Option F.
6.7.6.3
Current Limit Soft keys
Entire Contents Copyright
2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual
ADF SERIES™ OPERATION MANUAL
Front Panel Operation
SECTION 6:
Page 115 of 349
