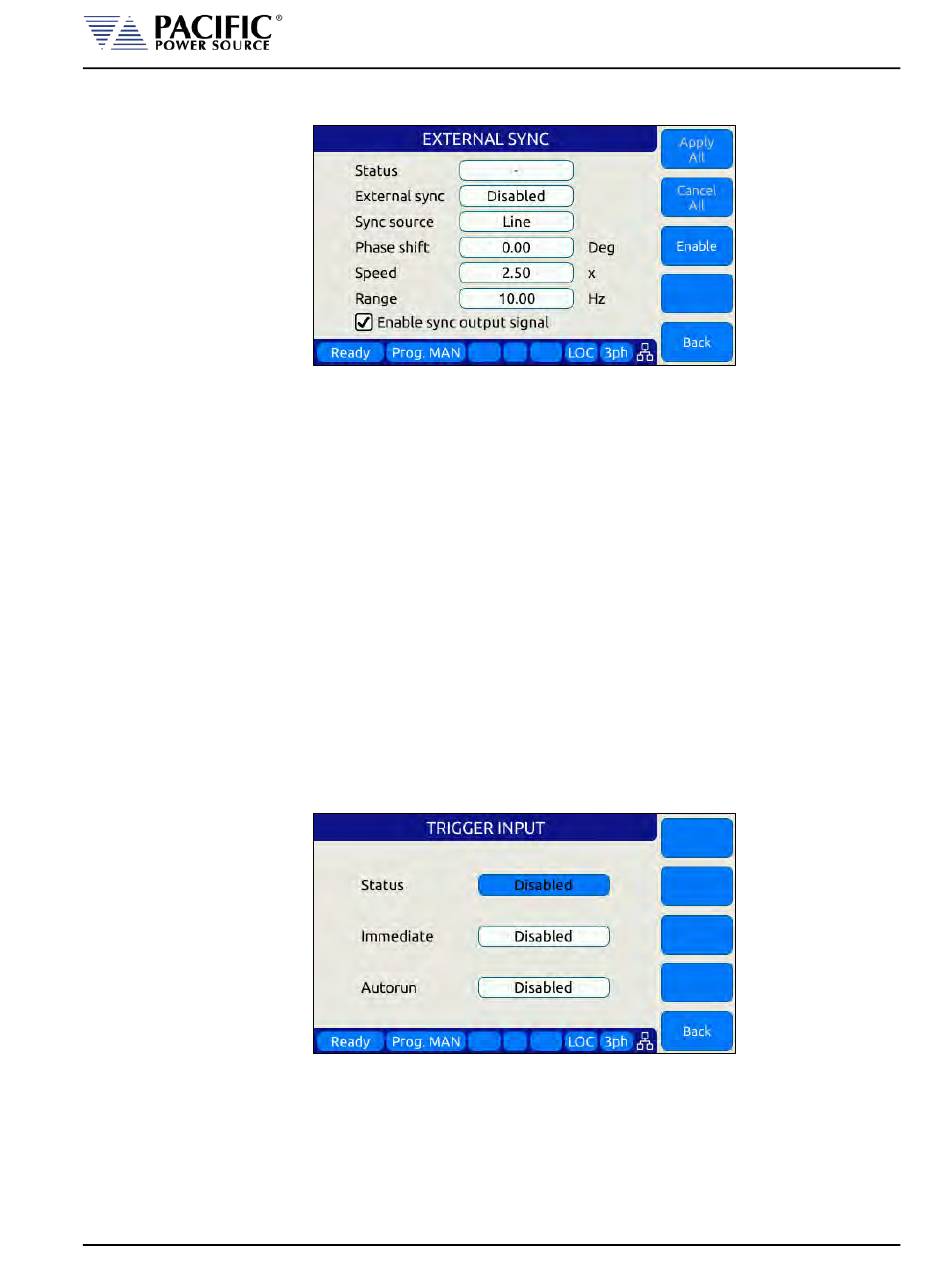

7.3.13.7 External Sync
External sync is used to synchronize the power source's phase A output to an external
frequency.
Available settings are:
• STATUS
• EXTERNAL SYNC
SYNC SOURCE
•
Available sync sources are:
•
- External sync input on I/O connector
- LINE (AC input to power source)
PHASE SHIFT
•
• SPEED
• RANGE
• EXTERNAL SYNC
7.3.13.8 Trigger Input
The External Trigger Input can be used to synchronize the power source's transient
execution to external equipment. This
Available settings are:
STATUS
•

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
ADF Series Power Source Operation Manual
Rear Panel, Connectors and Protection
SECTION 7:
Display SYNC Status
[ ON | OFF ]
Select Sync source
Offset Phase A angle
1.00 to 10.00
0.10 to 500 Hz
[ ON | OFF ]
[ ON | OFF ] Enabled or disabled
