980 HDMI Protocol Analyzer User Guide Rev. A1
5.2

Real Time Mode Overview

This section describes the Real Time mode user interface.
5.2.1 Real Time Mode - Interface Description

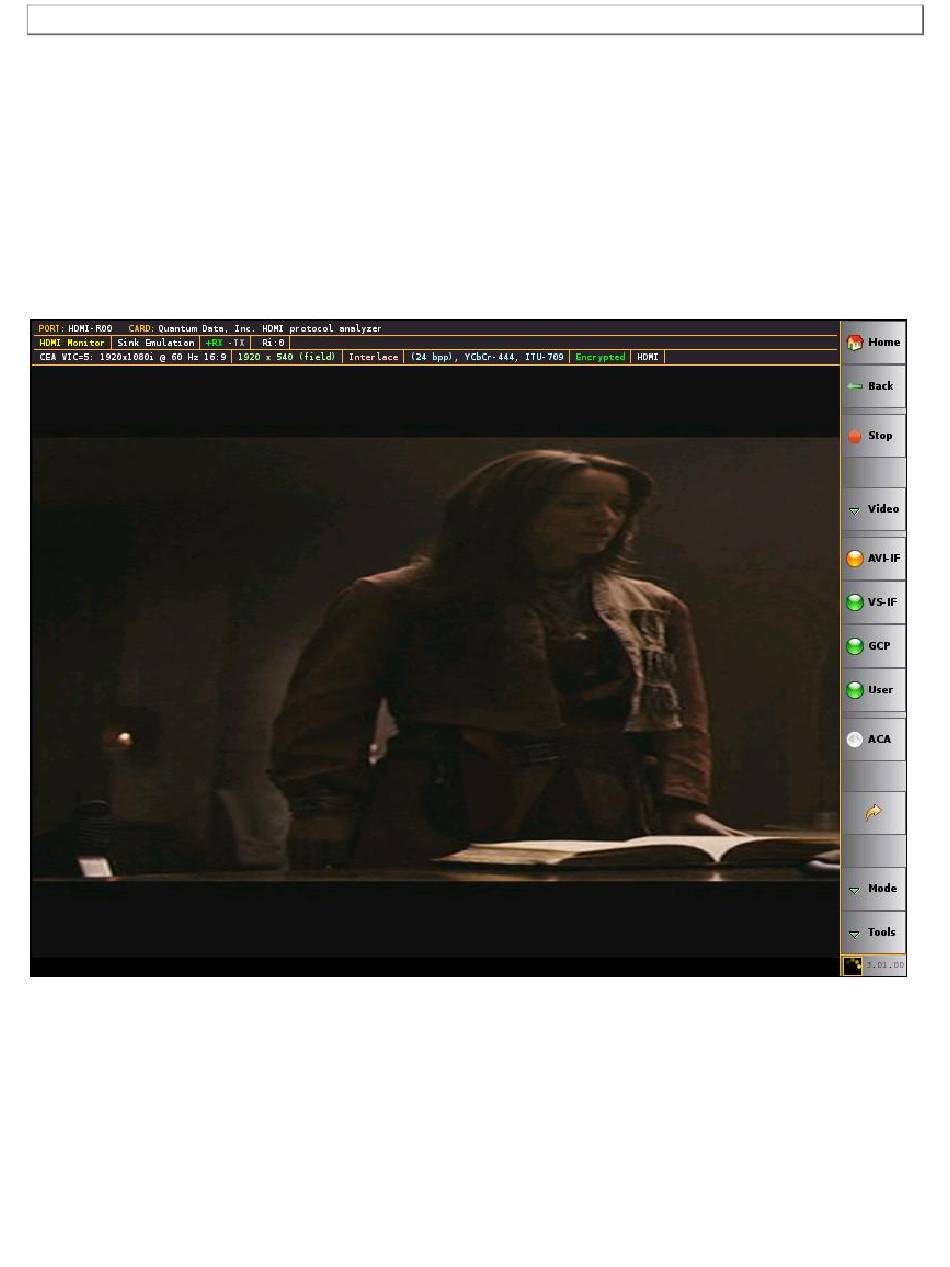

This subsection describes the functions of the main interface of the Real Time mode. The Real Time mode
interface is shown in the two example screens below. The first screen image shows the Real Time mode without
any of the viewing windows open. This screen shows you the Real Time mode with only the main control panel on
the right and the dashboard on the left and the incoming video image. The second screen example shows the Real
Time mode with several data panels open. The table that follows describes the main control panel.
Page 98 December 19, 2012
