980 HDMI Protocol Analyzer User Guide

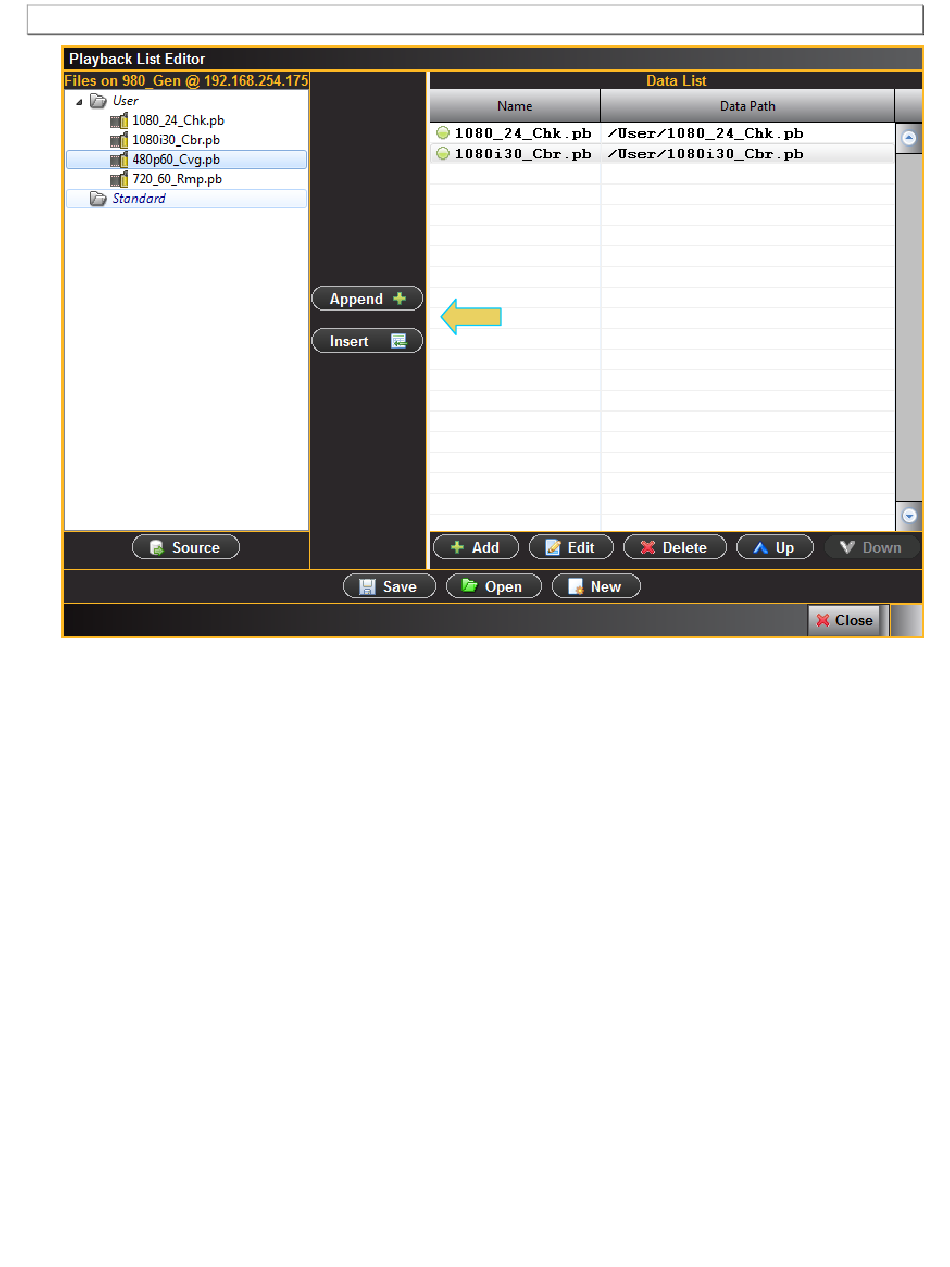

There are two buttons in the middle between the two windows that enable you to configure the test patterns in
your Pattern List. These are defined as follows:
Append – Add a new test pattern to the end of your list.
Insert – Insert a new test pattern into your accumulating list above the test pattern that is highlighted in the
Data List on the right.
There are five buttons along the bottom of the Data List panel (lower right side). These are defined as follows:
Add – Enables you to create a playlist if you do not have access to the files. For example if you are
working through the external GUI Manager but not able to connect to a 980 and wanted to create a playback
list from files that you knew existed on a 980, you could use the Add button to create a record under the Data
List and specify a name and path for the location of the playback file.
Edit – Opens up a dialog box enabling you to change the name and storage location of the playback file
selected in the Data List.
Delete – Deletes or remove a playback file from the Data List.
Up – Moves a playback file up in the Data List.
Down – Moves a playback file down in the Data List.
5. Click on the Save activation button when you are done configuring your custom list. You will be asked to enter
a name for your new Pattern List. Use the Name field provided (below).
