980 HDMI Protocol Analyzer User Guide
The following is an example:
p-scope> setip 192.168.254.100 255.255.255.0 192.168.254.1
If you wish to use DHCP to set the IP address, use the following command:
p-scope> setip dhcp

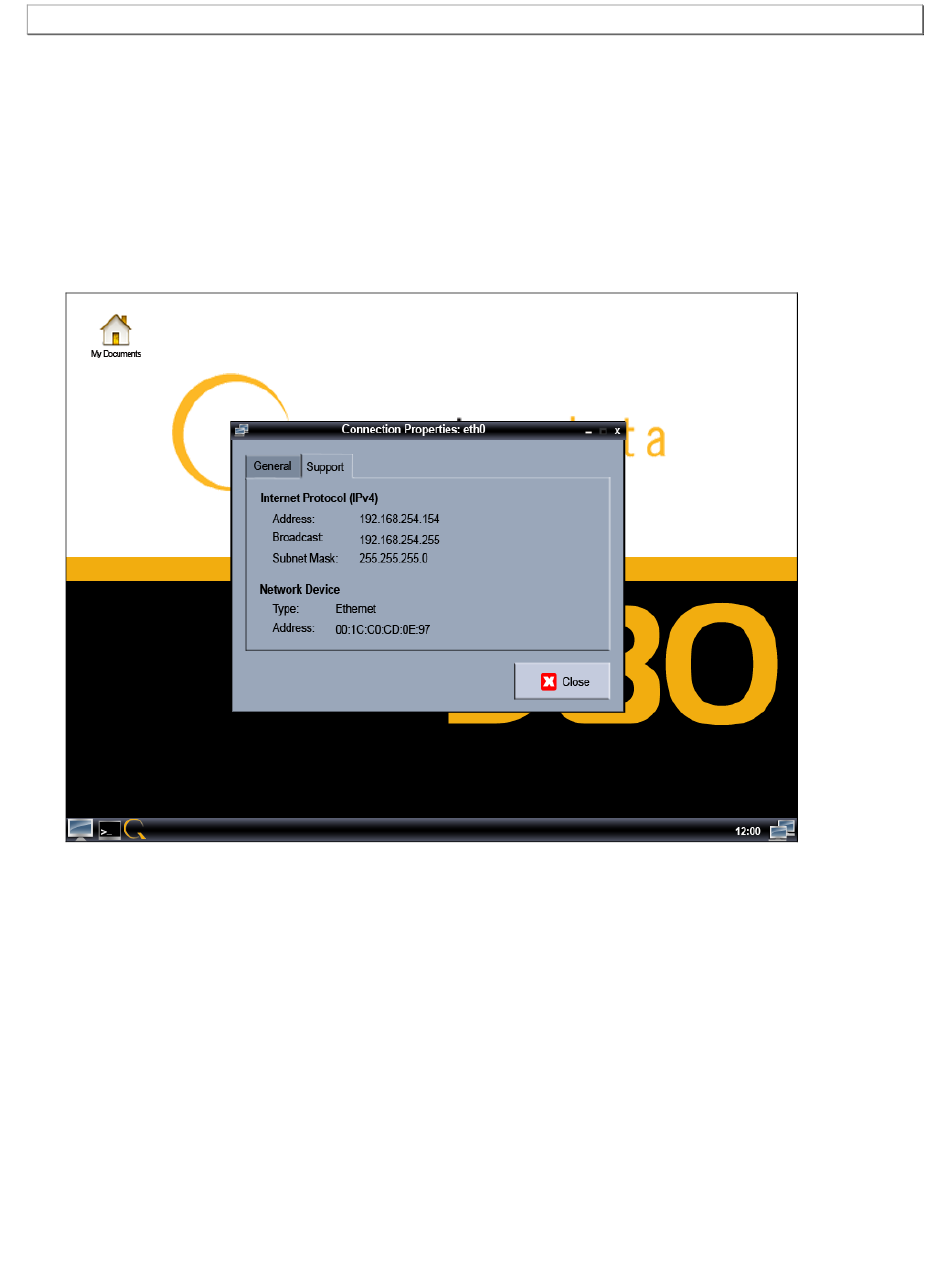

Reboot the 980 by pressing the power button on the lower middle part of the front panel bezel. When the 980
initializes, you will be able to view the new IP address by touch selecting the terminal icon on the lower right
corner of the 980 built-in display through the Connection Properties dialog box to view the current IP
address.
2.7.3 Establishing a Management Session between the 980 GUI Manager and the 980 HDMI
Protocol Analyzer
This procedure describes how to establish a management session between your 980 GUI Manager and the 980.
The procedure assumes that you have IP addresses provisioned in the 980 and the PC hosting the 980 GUI
Manager and that you have a suitable Ethernet cable connected between the PC and the 980.
To establish a management session to the 980:
1. Add your 980 HDMI Protocol Analyzer to the 980 GUI Manager application using the green + icon or the + Add
item on the Instrument pull-down menu identified below.
