980 HDMI Protocol Analyzer User Guide

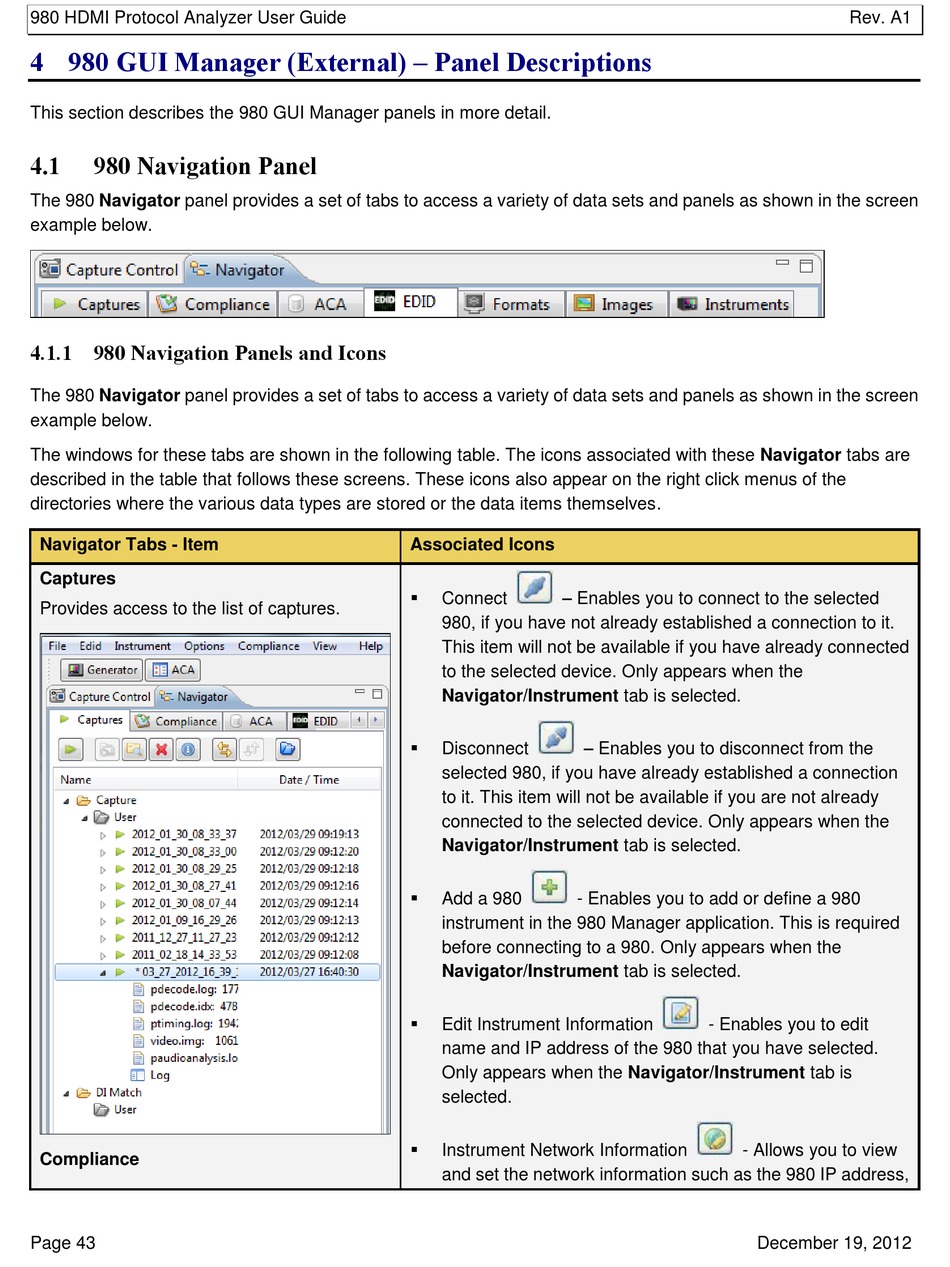

4 980 GUI Manager (External) – Panel Descriptions
This section describes the 980 GUI Manager panels in more detail.
4.1

980 Navigation Panel

The 980 Navigator panel provides a set of tabs to access a variety of data sets and panels as shown in the screen
example below.
4.1.1 980 Navigation Panels and Icons
The 980 Navigator panel provides a set of tabs to access a variety of data sets and panels as shown in the screen
example below.
The windows for these tabs are shown in the following table. The icons associated with these Navigator tabs are
described in the table that follows these screens. These icons also appear on the right click menus of the
directories where the various data types are stored or the data items themselves.
Navigator Tabs - Item
Captures
Provides access to the list of captures.
Compliance
Page 43
Associated Icons
 – Enables you to connect to the selected
Connect
980, if you have not already established a connection to it.
This item will not be available if you have already connected
to the selected device. Only appears when the
Navigator/Instrument tab is selected.
 – Enables you to disconnect from the
Disconnect
selected 980, if you have already established a connection
to it. This item will not be available if you are not already
connected to the selected device. Only appears when the
Navigator/Instrument tab is selected.

Add a 980 - Enables you to add or define a 980
instrument in the 980 Manager application. This is required
before connecting to a 980. Only appears when the
Navigator/Instrument tab is selected.

Edit Instrument Information
name and IP address of the 980 that you have selected.
Only appears when the Navigator/Instrument tab is
selected.

Instrument Network Information
and set the network information such as the 980 IP address,
Rev. A1
- Enables you to edit
- Allows you to view
December 19, 2012
