980 HDMI Protocol Analyzer User Guide

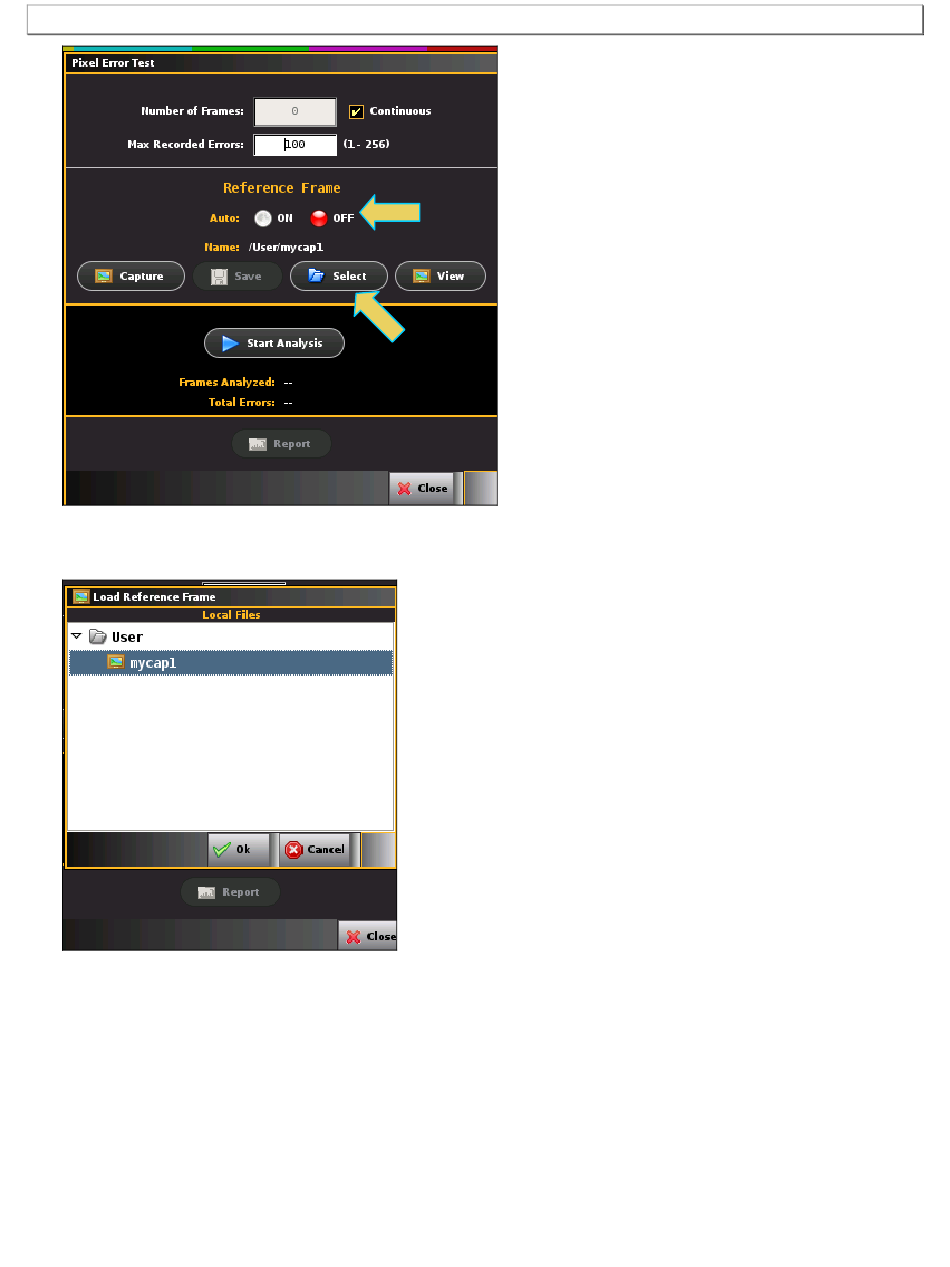

When you activate the Select button the Load Reference Frame dialog button will appear enabling you to
select a reference frame that you have previously captured. Select the file and OK or Cancel to start over.
4. Activate the Start Analysis button to initiate the test.
The Frames Analyzed and the Total Errors fields will indicate the progress and status of the test.
