980 HDMI Protocol Analyzer User Guide

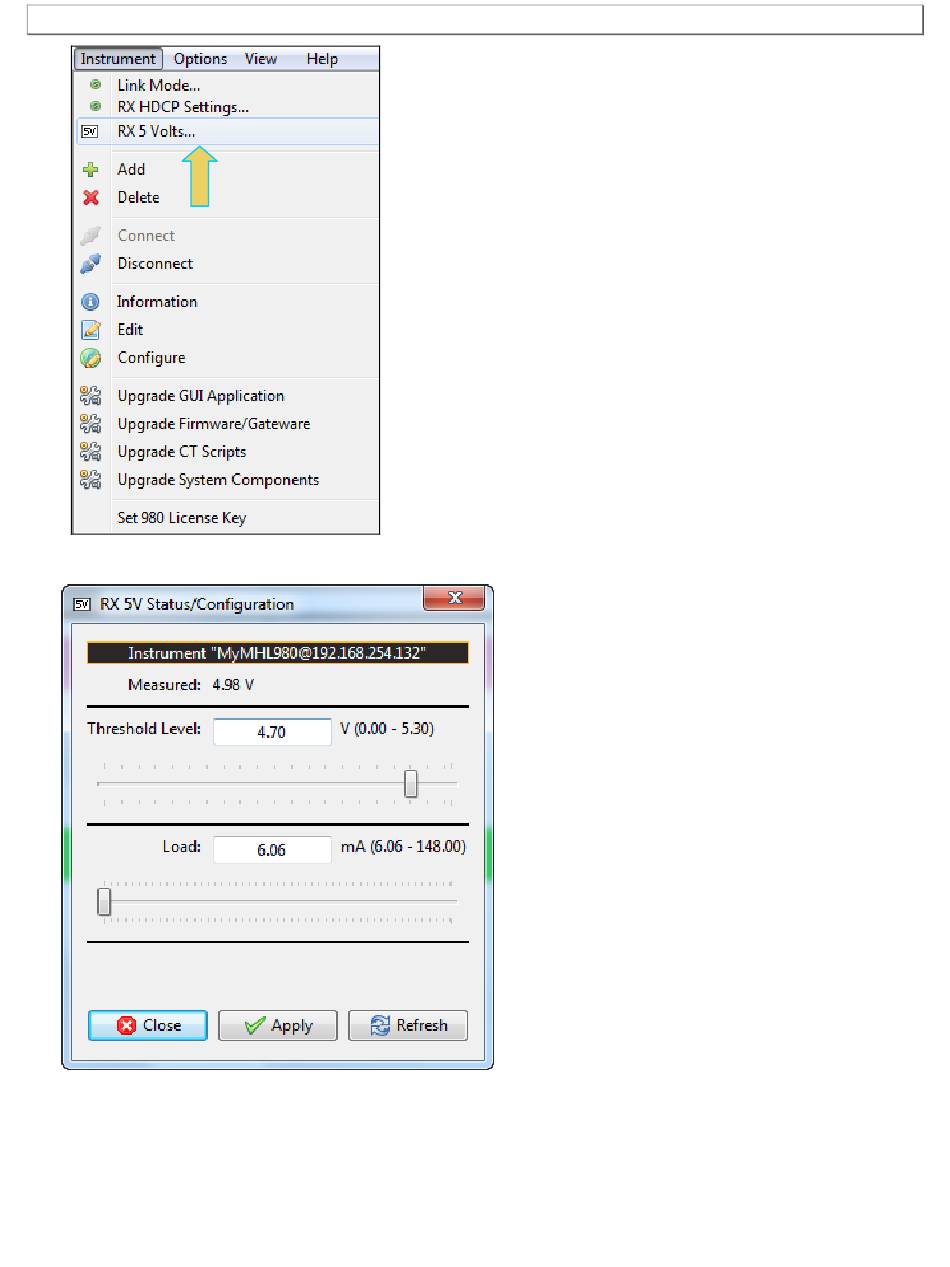

The RX 5V Status/Configuration dialog box is displayed as shown below.
2. Note the current Measured 5V level (4.98 in the example above).
3. Select the Threshold Level using the upper slidebar (0.0 to 5.3V). Be sure to select the Apply button. Then hit
Refresh to view the new value. You may wish to lower the threshold to enable testing of a source whose 5V
