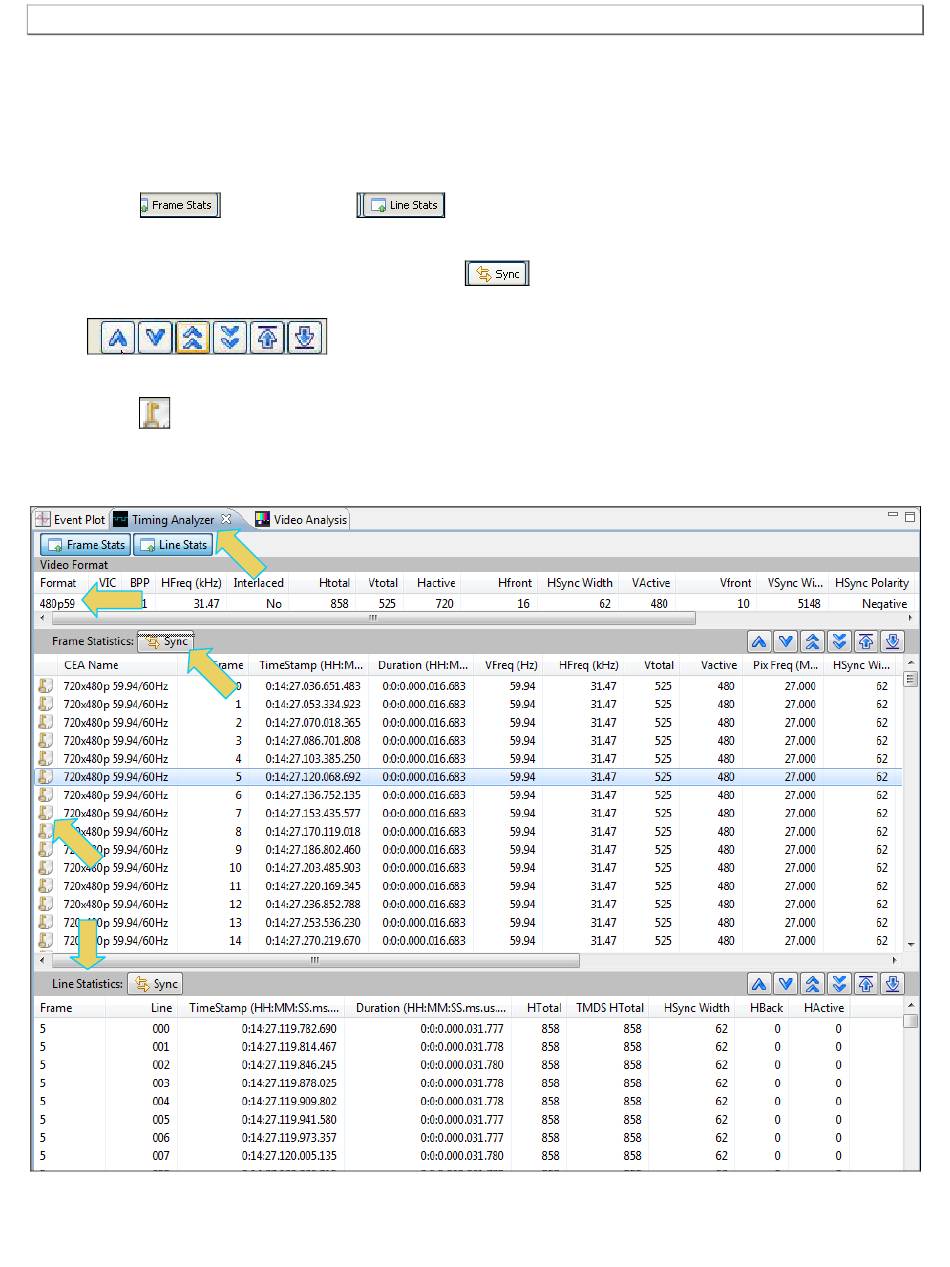

Timing Analysis Panel

The Timing Analysis panel provides timing information about a particular frame and line or for all frames and lines.
It tells you if the incoming data is compliant with a known-standard timing.
You can toggle the viewing of either the Frame Statistics panel or the Line Statistics panel to show/hide using the
Frame Stats and Line Stats activation buttons.
The Timing Analysis panel can be synchronized with the other panels such as the Event Plot panel and Data
Decode panel by activating the synchronization button on the top, left portion of the Frame and Line
Statistics panels of the Timing Analysis panel. There are several quick navigation buttons on the right side of the
panel. These enable you to: 1) Move up one line, 2) Move down one line, 3) Move
up one page, 4) Move down one page, 5) Move to the top of the capture, 6) Move to the bottom of the capture.
The key icon aside a frame indicates that that frame is encrypted.
You can sort on any frame or line column in either ascending or descending order by clicking on the column name
heading. An up arrow or a down arrow will appear indicating the direction of the sort as show below.
