980 HDMI Protocol Analyzer User Guide
Note: You can view incoming video bitmaps that are encrypted with HDCP content protection on the external 980
GUI Manager; however, once you power cycle the 980 HDMI Protocol Analyzer it will be removed.
To view incoming video on the 980 use the following procedure (examples use HDMI):
Ensure that you are sending video from your source device under test.
1.

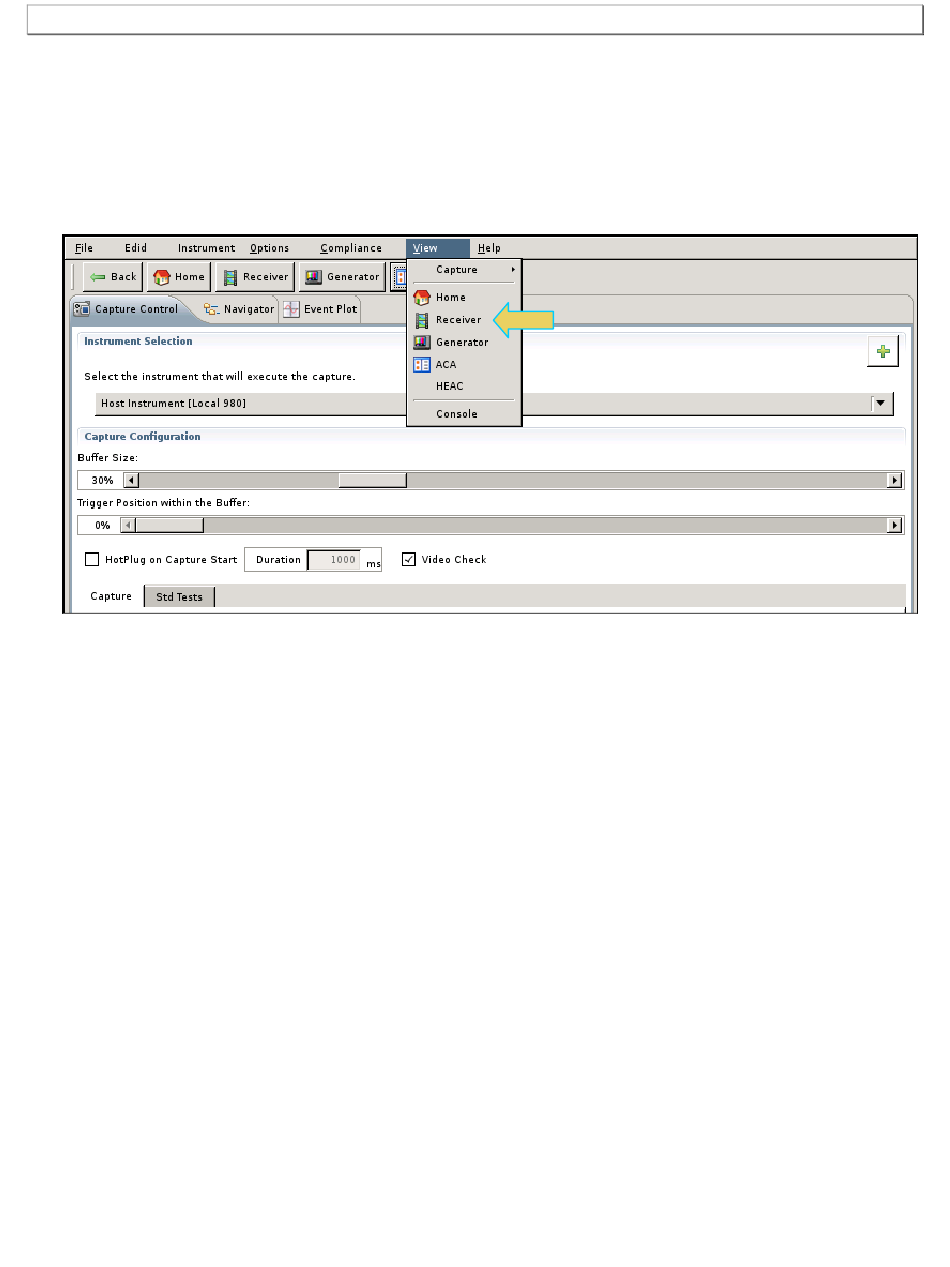

2. Select the Real Time mode on the built-in front panel by touch selecting the Receiver Mode item on the top
banner.
Page 176
Rev. A1
December 19, 2012
