980 HDMI Protocol Analyzer User Guide

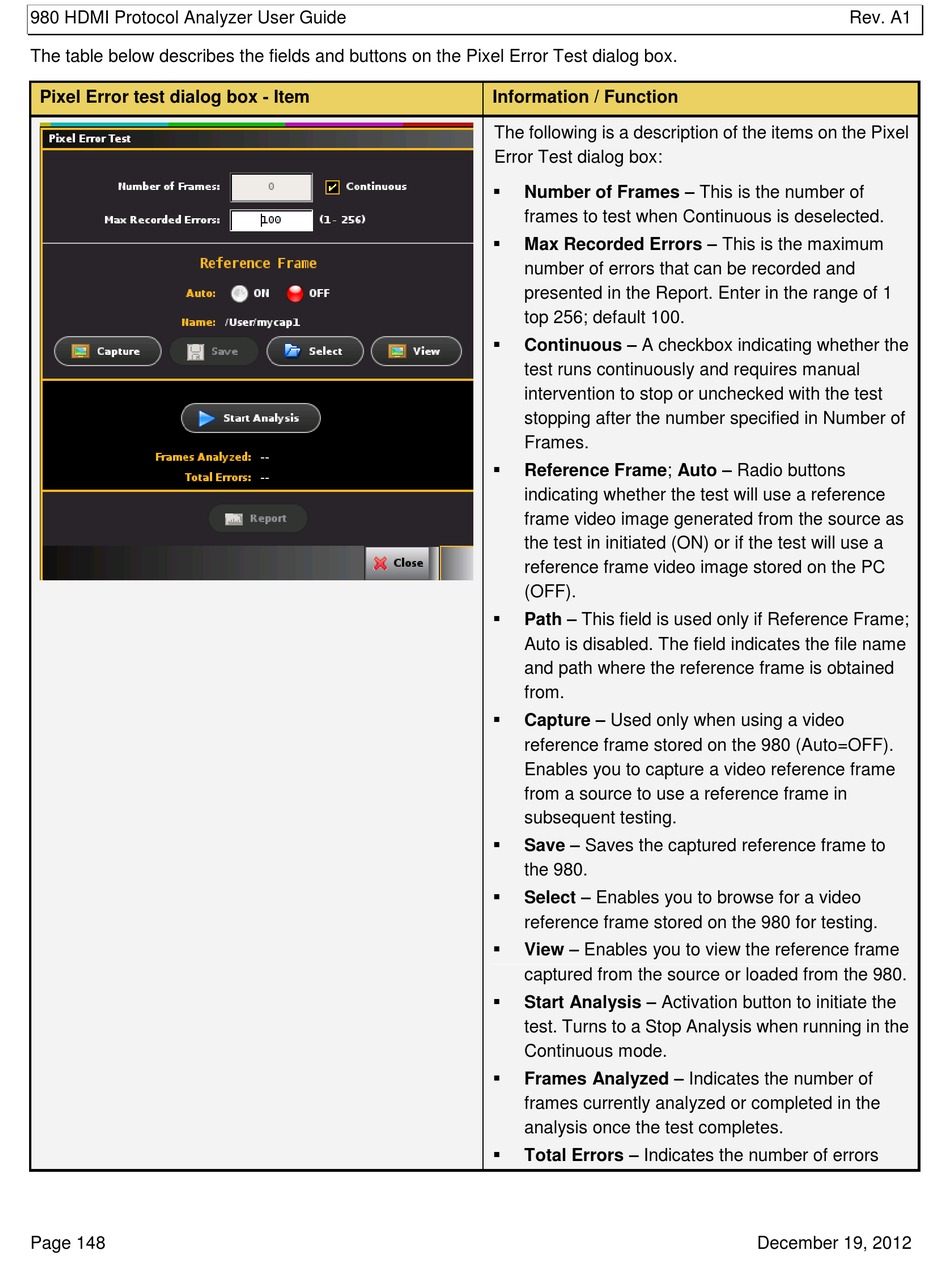

The table below describes the fields and buttons on the Pixel Error Test dialog box.
Pixel Error test dialog box - Item
Page 148
Information / Function
The following is a description of the items on the Pixel
Error Test dialog box:
 Number of Frames – This is the number of
frames to test when Continuous is deselected.
 Max Recorded Errors – This is the maximum
number of errors that can be recorded and
presented in the Report. Enter in the range of 1
top 256; default 100.
 Continuous – A checkbox indicating whether the
test runs continuously and requires manual
intervention to stop or unchecked with the test
stopping after the number specified in Number of
Frames.
 Reference Frame; Auto – Radio buttons
indicating whether the test will use a reference
frame video image generated from the source as
the test in initiated (ON) or if the test will use a
reference frame video image stored on the PC
(OFF).
 Path – This field is used only if Reference Frame;
Auto is disabled. The field indicates the file name
and path where the reference frame is obtained
from.
 Capture – Used only when using a video
reference frame stored on the 980 (Auto=OFF).
Enables you to capture a video reference frame
from a source to use a reference frame in
subsequent testing.
 Save – Saves the captured reference frame to
the 980.
 Select – Enables you to browse for a video
reference frame stored on the 980 for testing.
 View – Enables you to view the reference frame
captured from the source or loaded from the 980.
 Start Analysis – Activation button to initiate the
test. Turns to a Stop Analysis when running in the
Continuous mode.
 Frames Analyzed – Indicates the number of
frames currently analyzed or completed in the
analysis once the test completes.
 Total Errors – Indicates the number of errors
