3. Make a capture by clicking on the Capture button indicated above.

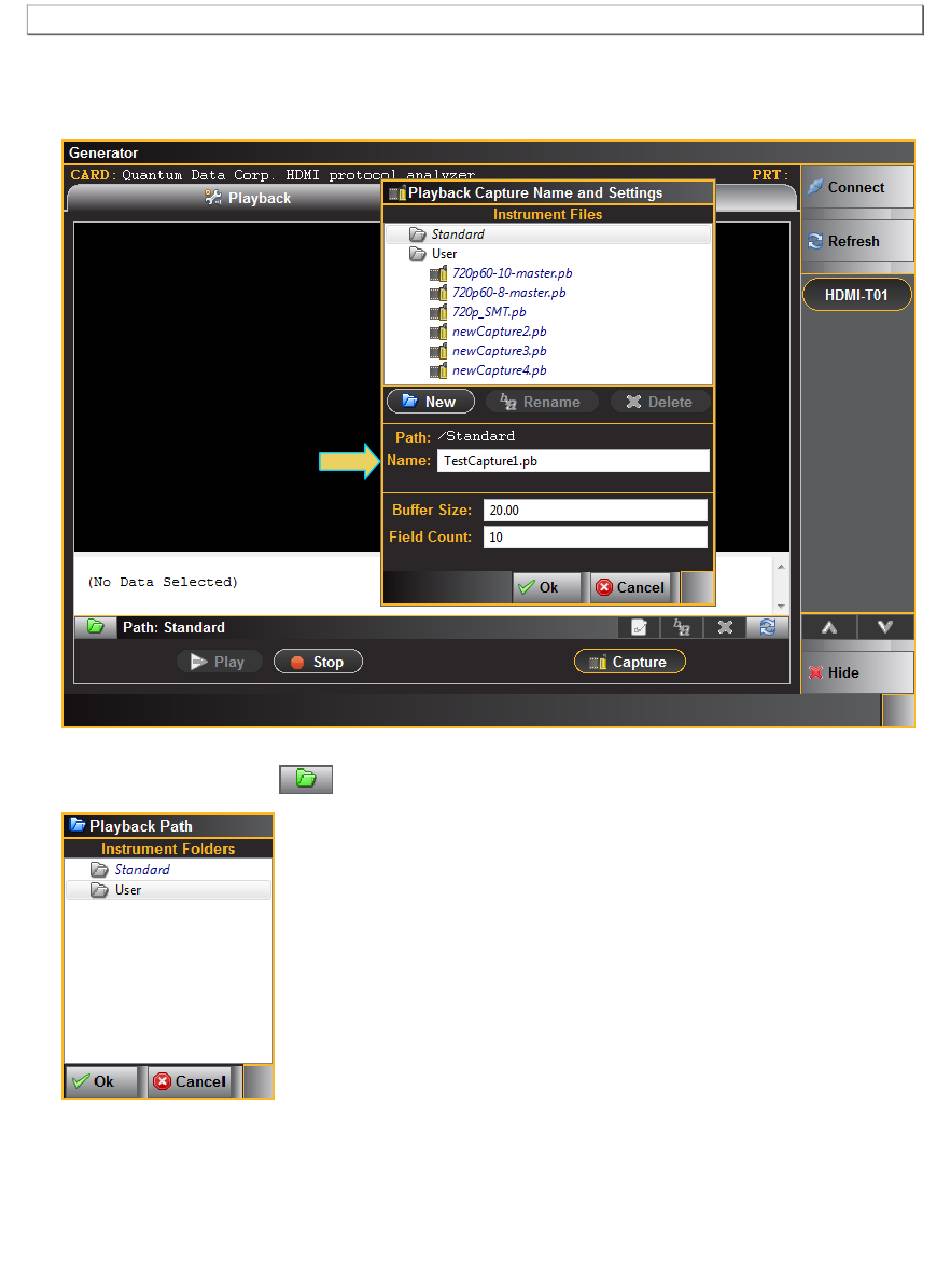

A dialog box appears asking you to assign a name to the capture file. This is depicted on the screen shot
below:
4. Enter a name for the capture file in the Name entry field. Ensure that the path where the file is stored is correct.
If not click on the path icon
5. Set the Buffer Size and Field Count in the fields provided as shown in the screen shot below.
Page 280
to change it. A dialog box will appear as shown below:
