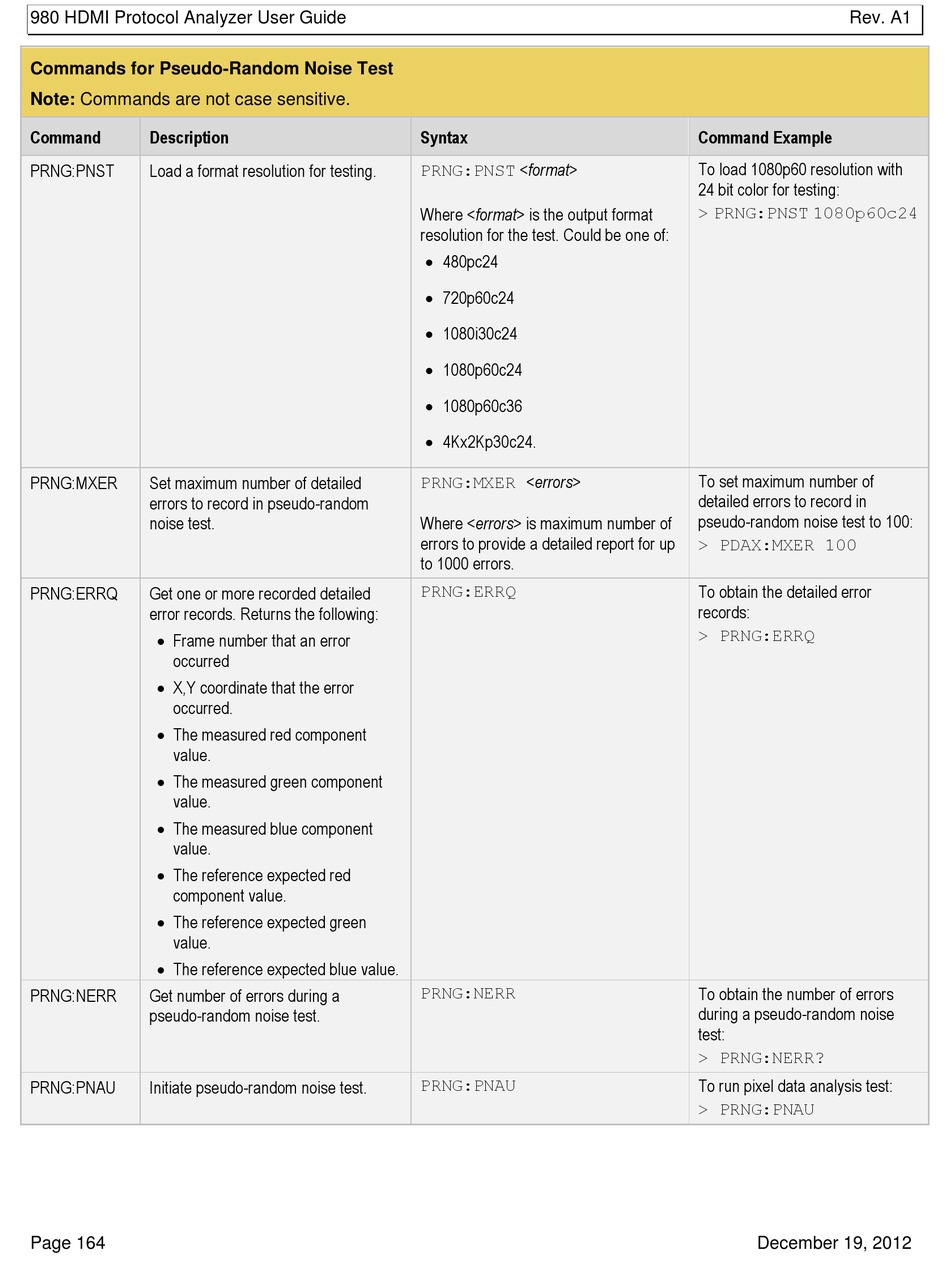

980 HDMI Protocol Analyzer User Guide
Commands for Pseudo-Random Noise Test
Note: Commands are not case sensitive.
Command Description
PRNG:PNST Load a format resolution for testing.
PRNG:MXER Set maximum number of detailed
errors to record in pseudo-random
noise test.
PRNG:ERRQ Get one or more recorded detailed
error records. Returns the following:
 Frame number that an error
occurred
 X,Y coordinate that the error
occurred.
 The measured red component
value.
 The measured green component
value.
 The measured blue component
value.
 The reference expected red
component value.
 The reference expected green
value.
 The reference expected blue value.
PRNG:NERR Get number of errors during a
pseudo-random noise test.
PRNG:PNAU Initiate pseudo-random noise test.
Page 164
Syntax
PRNG:PNST <format>
Where <format> is the output format
resolution for the test. Could be one of:
 480pc24
 720p60c24
 1080i30c24
 1080p60c24
 1080p60c36
 4Kx2Kp30c24.
PRNG:MXER <errors>
Where <errors> is maximum number of
errors to provide a detailed report for up
to 1000 errors.
PRNG:ERRQ
PRNG:NERR
PRNG:PNAU
Rev. A1
Command Example
To load 1080p60 resolution with
24 bit color for testing:
> PRNG:PNST 1080p60c24
To set maximum number of
detailed errors to record in
pseudo-random noise test to 100:
> PDAX:MXER 100
To obtain the detailed error
records:
> PRNG:ERRQ
To obtain the number of errors
during a pseudo-random noise
test:
> PRNG:NERR?
To run pixel data analysis test:
> PRNG:PNAU
December 19, 2012
