4.12 Emulating a Specific EDID

Once you have loaded an EDID and made your changes it to it you can assign it to the980 HDMI Protocol Analyzer
Rx port for emulation and testing your source device. This subsection describes how you can do that.
To assign an EDID to the Rx port:
1. Use the EDID pull-down menu and select Set 980 Rx EDID.

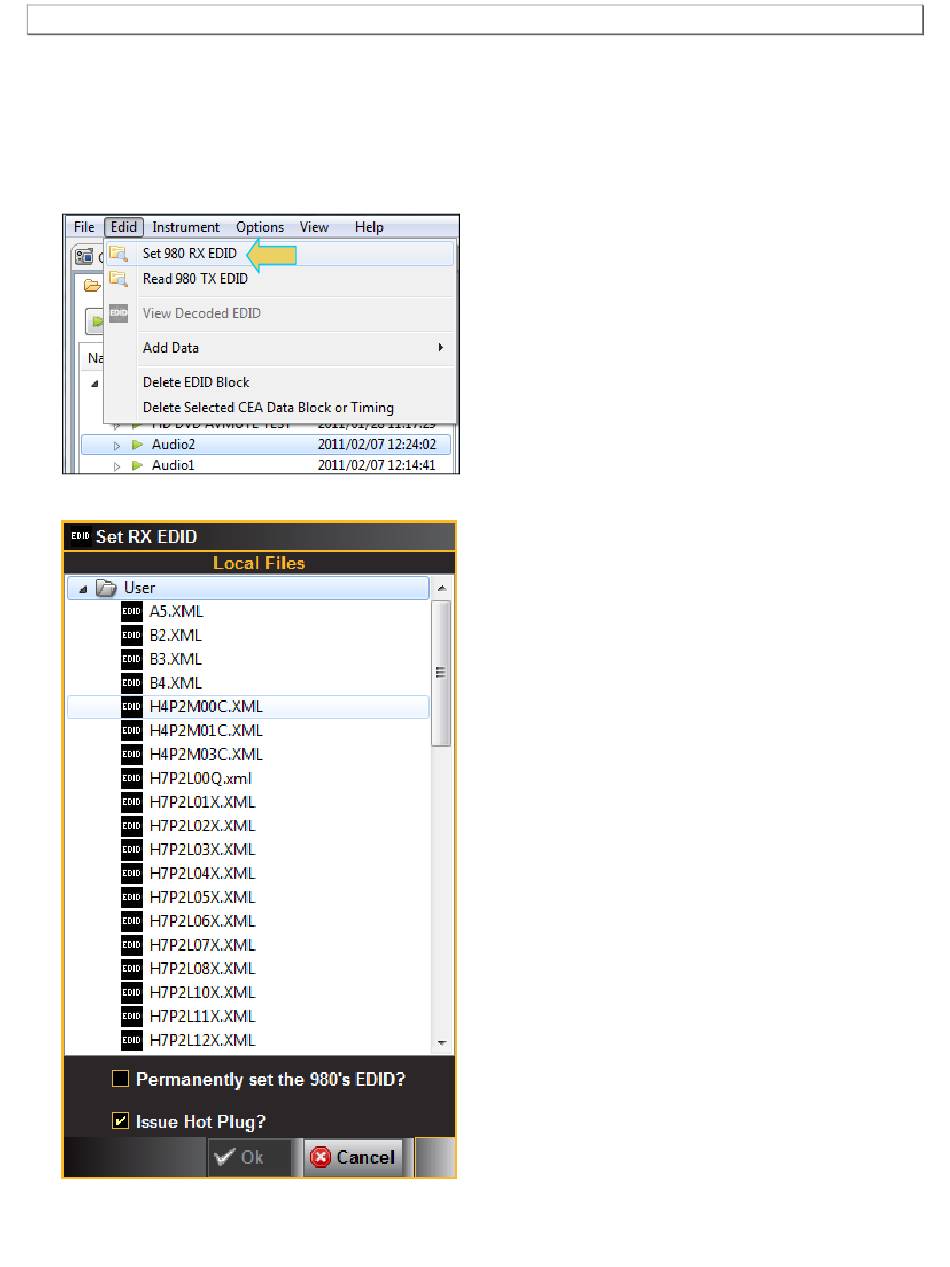

The dialog box shown below opens up.
