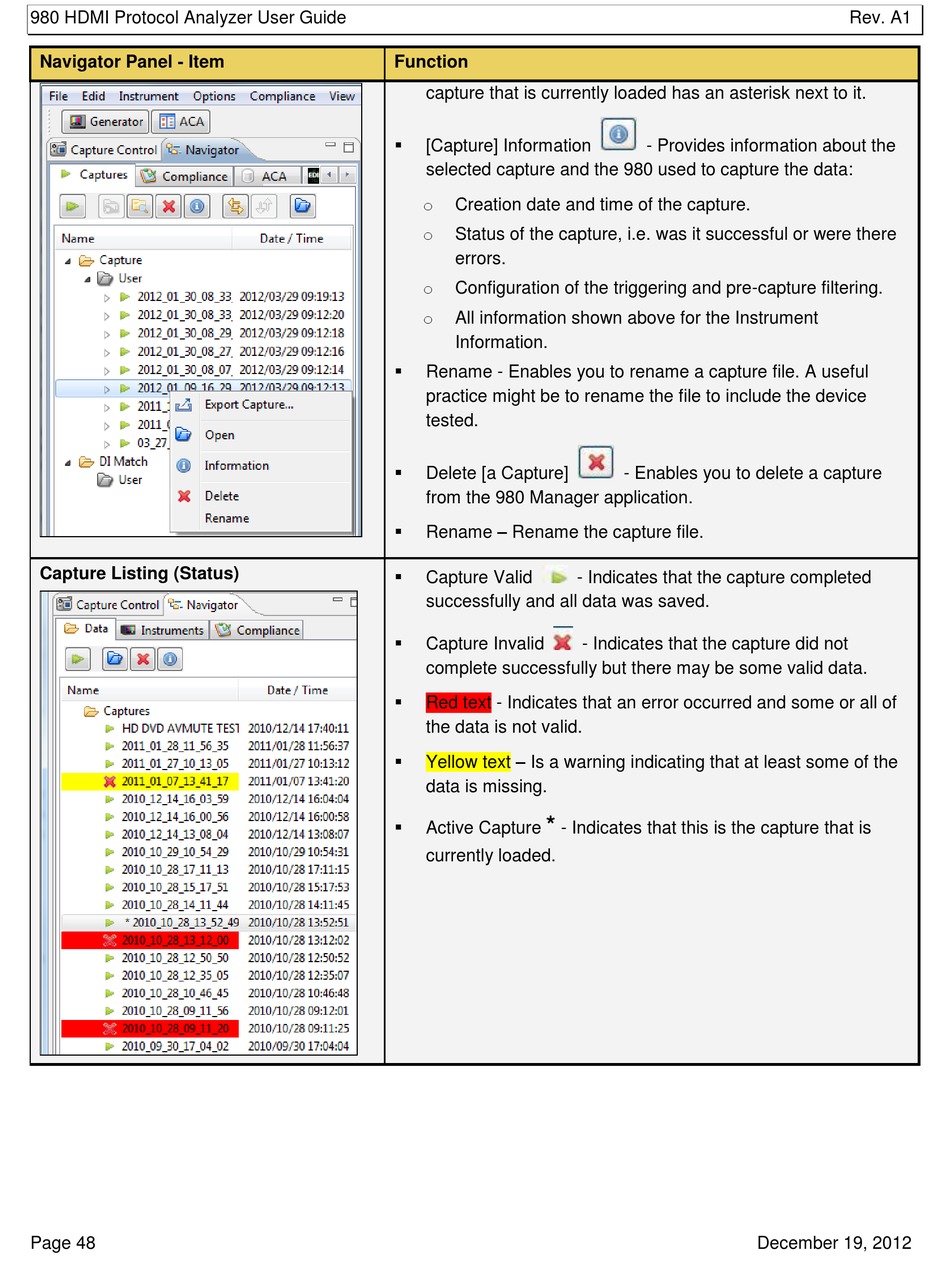

Navigator Panel - Item
Capture Listing (Status)
Page 48
Function
capture that is currently loaded has an asterisk next to it.

[Capture] Information
selected capture and the 980 used to capture the data:
o
Creation date and time of the capture.
o
Status of the capture, i.e. was it successful or were there
errors.
o
Configuration of the triggering and pre-capture filtering.
o
All information shown above for the Instrument
Information.

Rename - Enables you to rename a capture file. A useful
practice might be to rename the file to include the device
tested.

Delete [a Capture]
from the 980 Manager application.
 Rename – Rename the capture file.

Capture Valid
successfully and all data was saved.

Capture Invalid
complete successfully but there may be some valid data.

Red text - Indicates that an error occurred and some or all of
the data is not valid.
 Yellow text – Is a warning indicating that at least some of the
data is missing.
*

Active Capture - Indicates that this is the capture that is
currently loaded.
- Provides information about the
- Enables you to delete a capture
- Indicates that the capture completed
- Indicates that the capture did not
