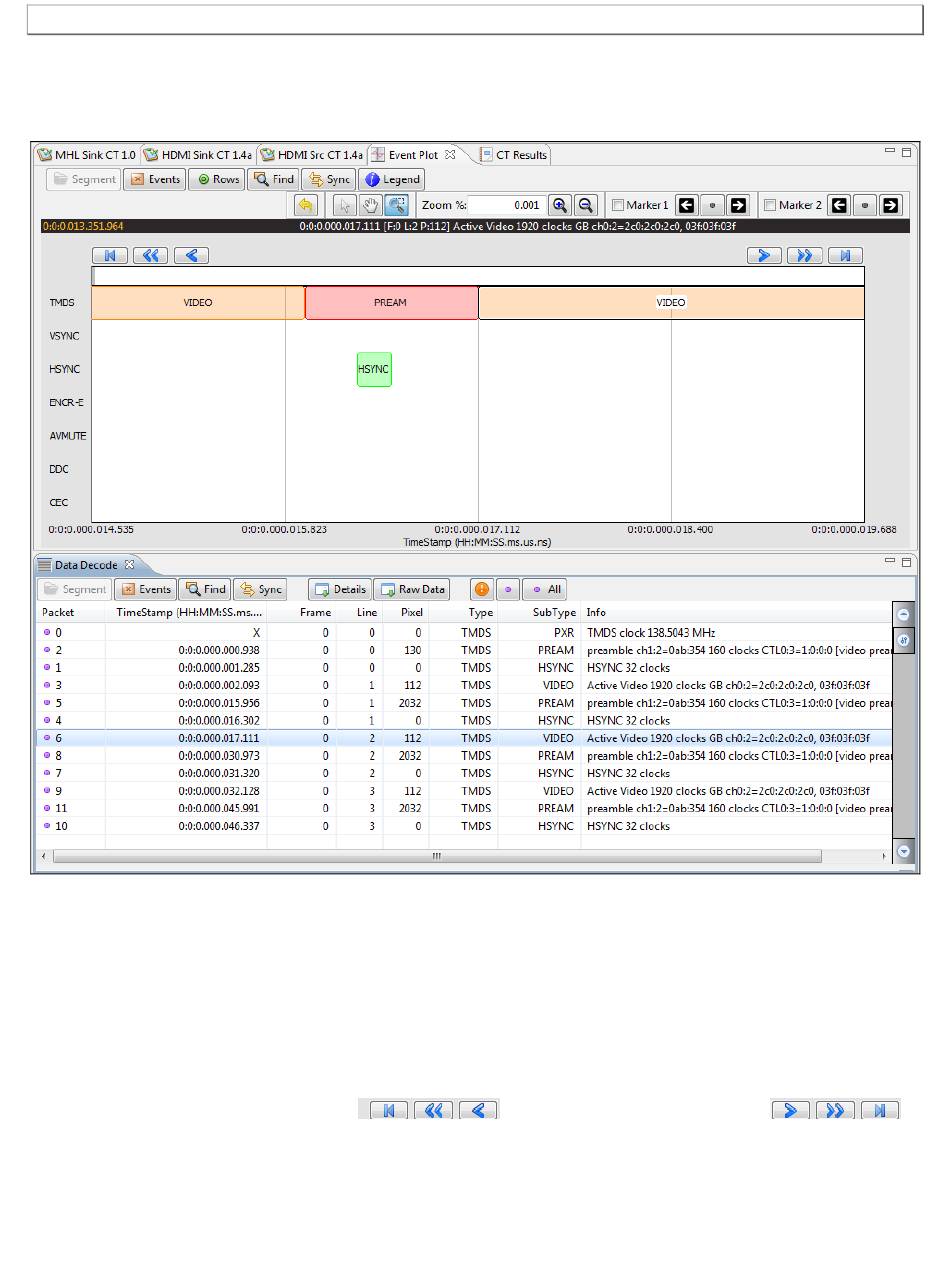

The following example shows the Event Plot with data captured in the Protocol Analysis mode where the audio,
video and data islands are not shown in detail. The control bits for the preamble are shown and guard band bits for
each channel in a given video data period are shown as well.
4.5.1 Locating Data in the Event Plot Panel
The Event Plot enables you to locate data by searching for specific data types, panning, scrolling and zooming
using various techniques. You can filter the data by type to limit the amount of data to sift through. You can
synchronize the Data Decode and Timing panels to the Event Plot or you can synchronize the Event Plot to the
Data Decode panel.
A scroll bar is provided to enable you to quickly browse through the data. The scroll bar is under the set of function
icons just above the data panel where the data is displayed. You can also scroll to the end, scroll by page or scroll
incrementally in either direction using the backward and forward activation
buttons. See the screen shot below.
