level is too low. If you specify a threshold higher than the voltage detected there will be no effect on the ability
to test.
4. Select the current Load using the lower slidebar provided. Increasing the current load will cause the detected
voltage to fall. Be sure to select the Apply button. Then hit Refresh to view the new value.
9.3.5 Setting the HDCP mode
The 980 HDMI Protocol Analyzer enables you to enable and disable HDCP on the Rx sink emulation port. This
enables you to test how your source device under test responds to a sink that does not support HDCP. You can
also configure certain HDCP configuration registers such as the BSTATUS and BCAPS. Use the following
procedures to set the HDCP mode and registers.

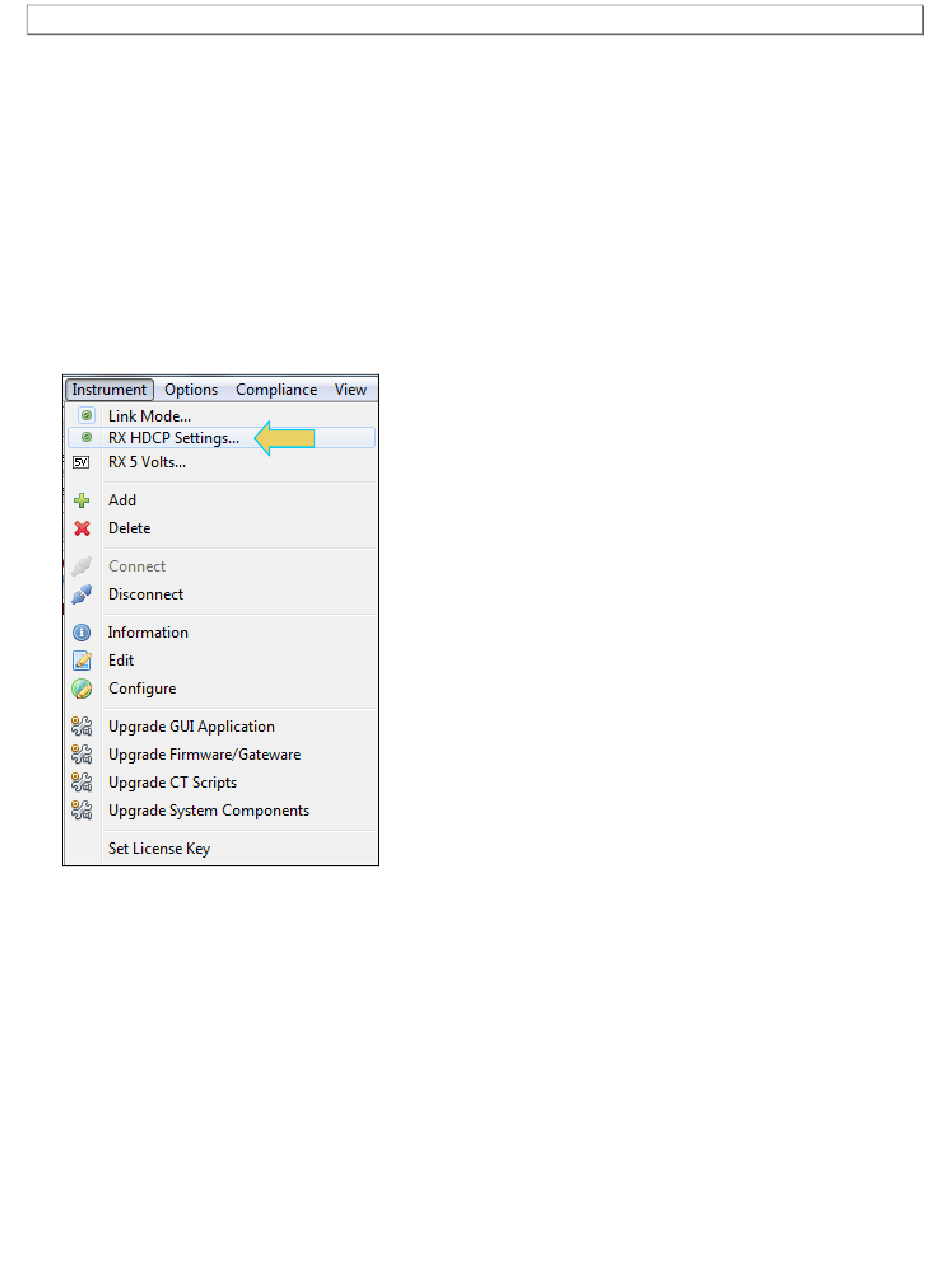

1. Select the RX HDCP Settings... item from the Instrument pull-down menu on the built-in front panel as shown
below.
The mode dialog box appears as shown below.
