980 HDMI Protocol Analyzer User Guide Rev. A1

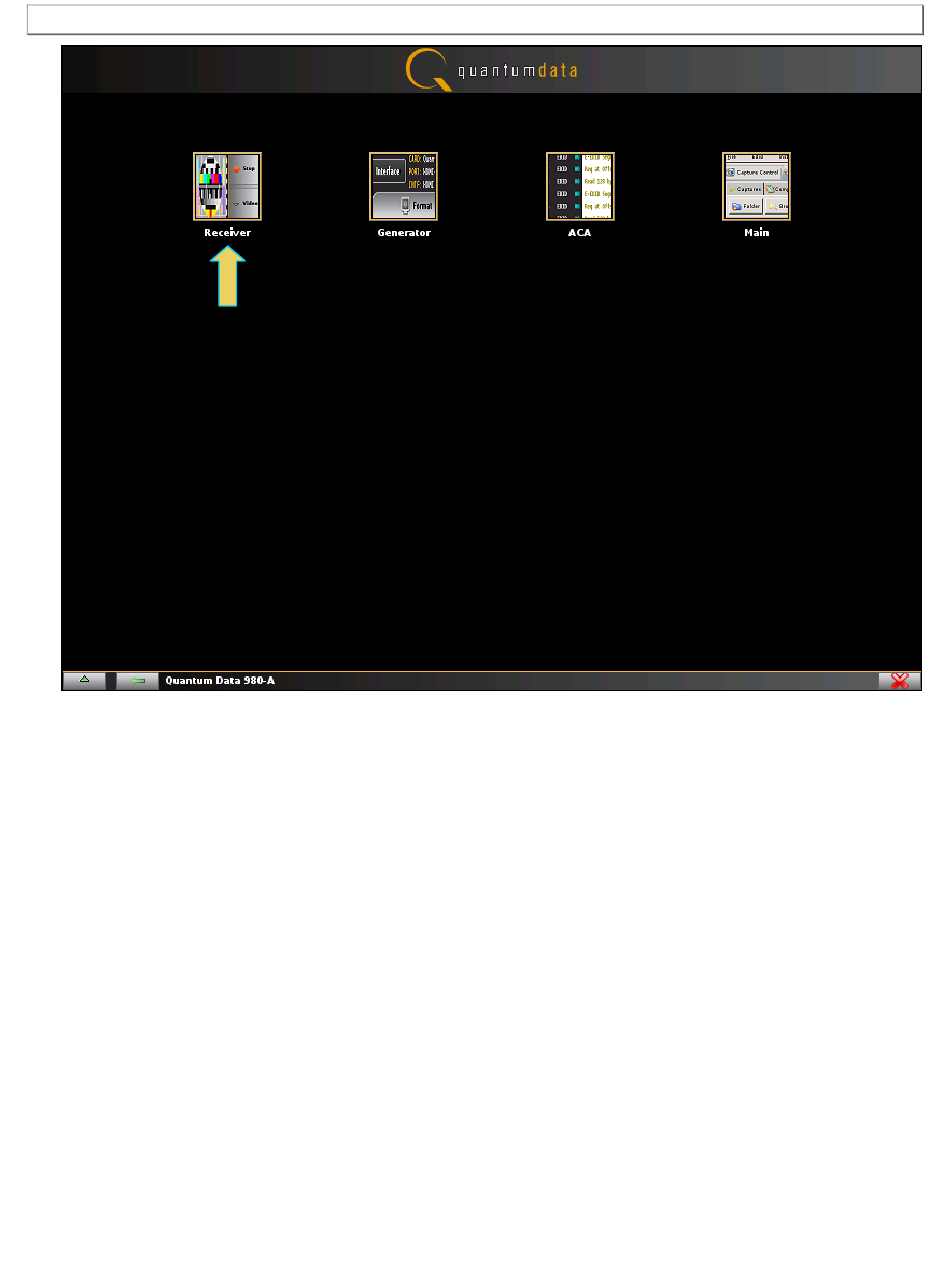

The Receiver "Real Time" panel appears as shown above.
7.2

Testing HDMI Distribution Network Components with the Pixel Error Test

Use the following procedures to setup and test HDMI Distribution Network components. This procedure assumes
that you are in the Real Time mode through the Receiver application panel.
To Run the Pixel Error test:
1. Connect the source and HDMI distribution network to the 980 HDMI Protocol Analyzer Rx port as shown
below:
Page 145 December 19, 2012
