980 HDMI Protocol Analyzer User Guide
Rev. A1
8.6
Setting the +5V levels
The 980 enables you to view the +5V levels from the source device under test and to set the current load on the
+5V lead.

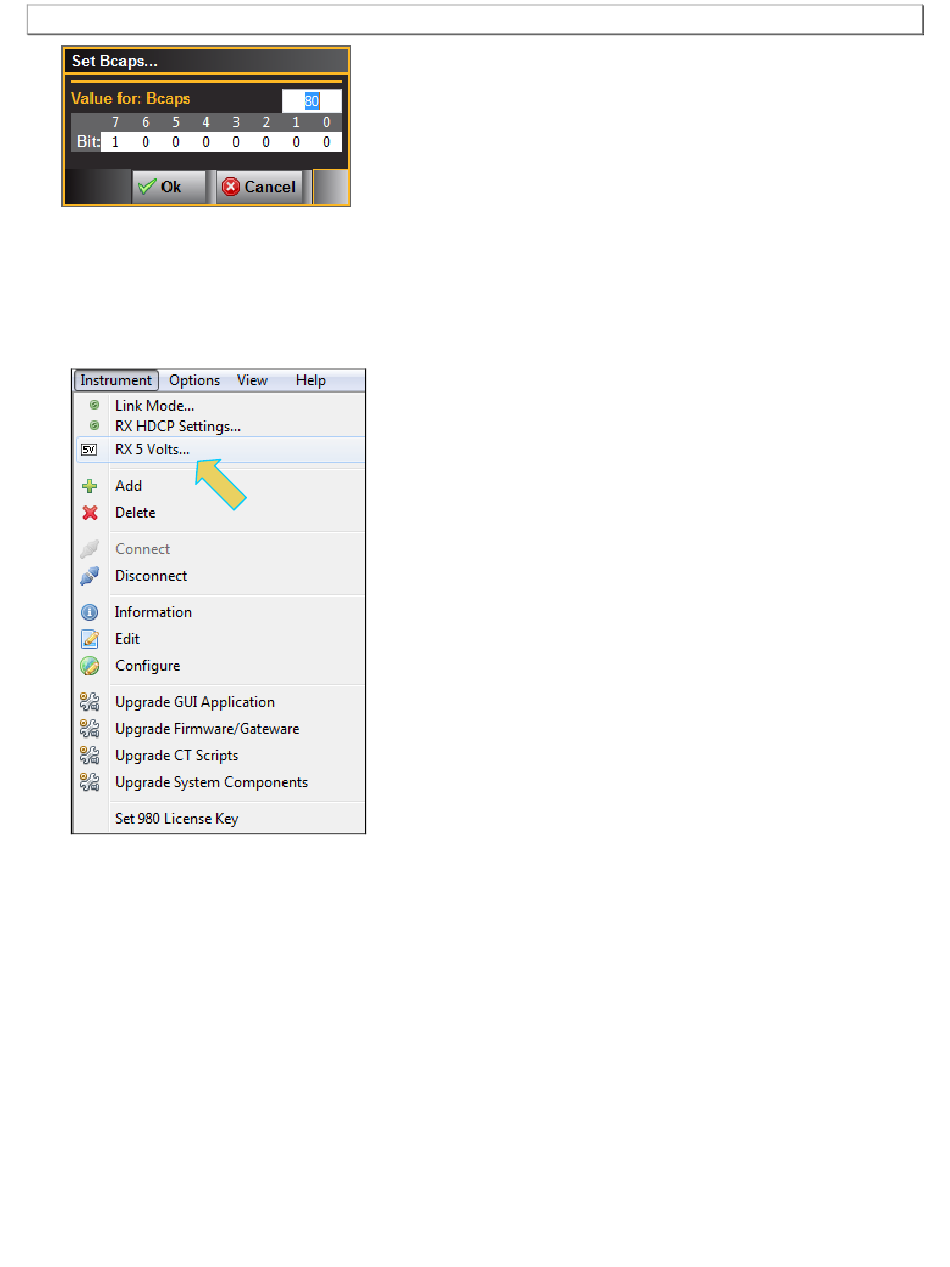

1. Select the RX 5 Volts... item from the Instrument pull-down menu on the built-in front panel as shown below.
The RX 5V Status/Configuration dialog box is displayed as shown below.
Page 172
December 19, 2012
