8.13 Examining Captured Data

The procedures below describe how to view various types of captured data through the Data Decode and Event
Plot panels. This procedure assumes that you have captured the data or have opened up a previously captured
data file.
8.13.1 Viewing Data Analysis captures through the Data Decode panel
This subsection provides procedures for viewing the captured data taken using one of the Data Analysis capture
modes through the Data Decode panel in the 980 GUI Manager.
To view captured data through the Data Decode panel:
1. To view the protocol data transactions on the Data Decode panel, activate the Data Decode tab.

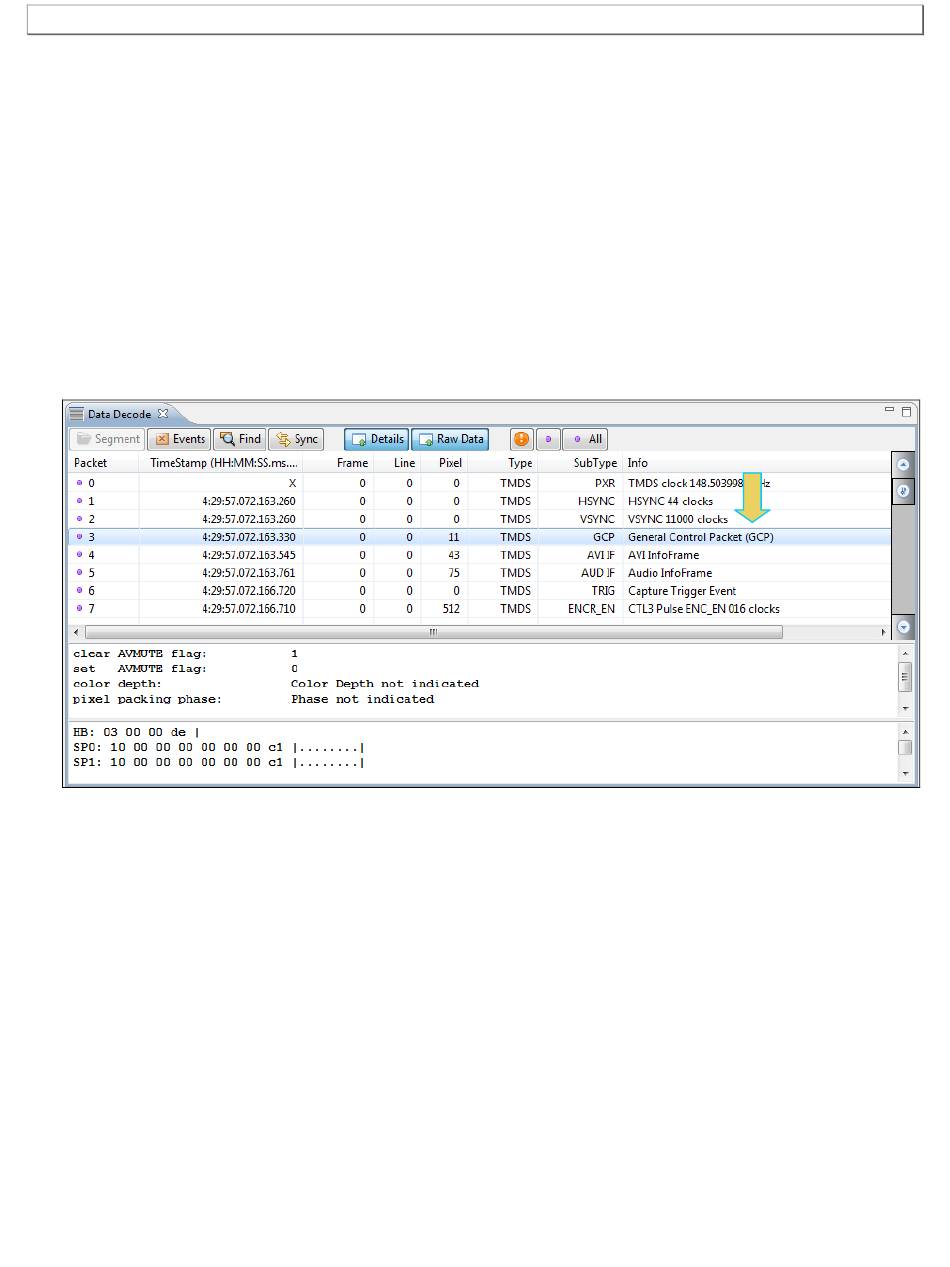

The Data Decode window shows the protocol data in a report.
