Navigator Panel - Item
4.1.3 980 Navigation Captures Panels and Right-Click items

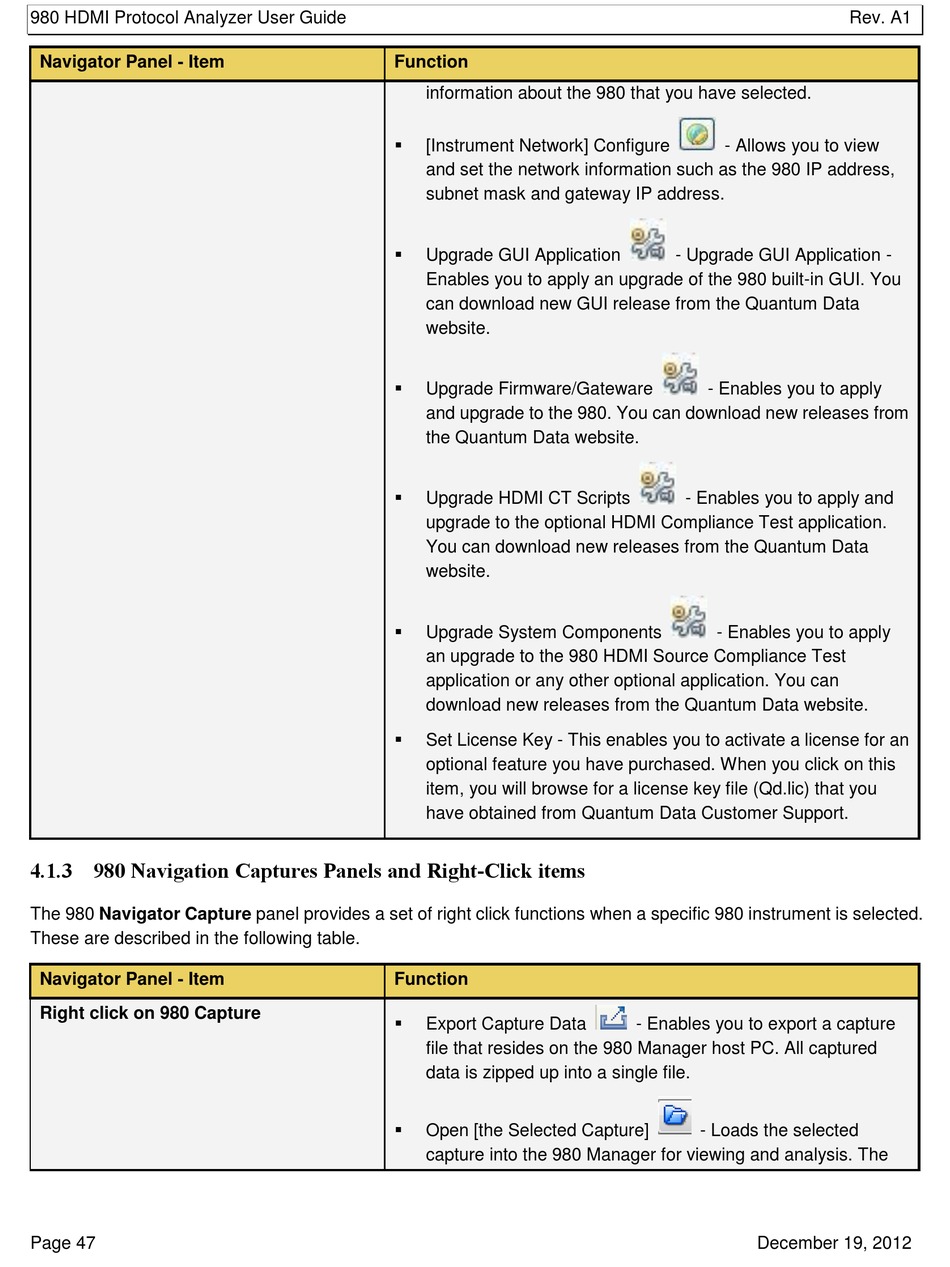

The 980 Navigator Capture panel provides a set of right click functions when a specific 980 instrument is selected.
These are described in the following table.
Navigator Panel - Item
Right click on 980 Capture
Page 47
Function
information about the 980 that you have selected.

[Instrument Network] Configure
and set the network information such as the 980 IP address,
subnet mask and gateway IP address.

Upgrade GUI Application
Enables you to apply an upgrade of the 980 built-in GUI. You
can download new GUI release from the Quantum Data
website.

Upgrade Firmware/Gateware
and upgrade to the 980. You can download new releases from
the Quantum Data website.

Upgrade HDMI CT Scripts
upgrade to the optional HDMI Compliance Test application.
You can download new releases from the Quantum Data
website.

Upgrade System Components
an upgrade to the 980 HDMI Source Compliance Test
application or any other optional application. You can
download new releases from the Quantum Data website.

Set License Key - This enables you to activate a license for an
optional feature you have purchased. When you click on this
item, you will browse for a license key file (Qd.lic) that you
have obtained from Quantum Data Customer Support.
Function

Export Capture Data
file that resides on the 980 Manager host PC. All captured
data is zipped up into a single file.

Open [the Selected Capture]
capture into the 980 Manager for viewing and analysis. The
- Allows you to view
- Upgrade GUI Application -
- Enables you to apply
- Enables you to apply and
- Enables you to apply
- Enables you to export a capture
- Loads the selected
