4.10 Loading an EDID into the EDID Editor

You can either load a new EDID or modify and existing EDID. In the later case, you may have many EDIDs stored
in the EDID directory of the external GUI Manager suite of directories. You can open any one of these EDIDs,
modify it and resave it under a different name.
To open a new EDID:

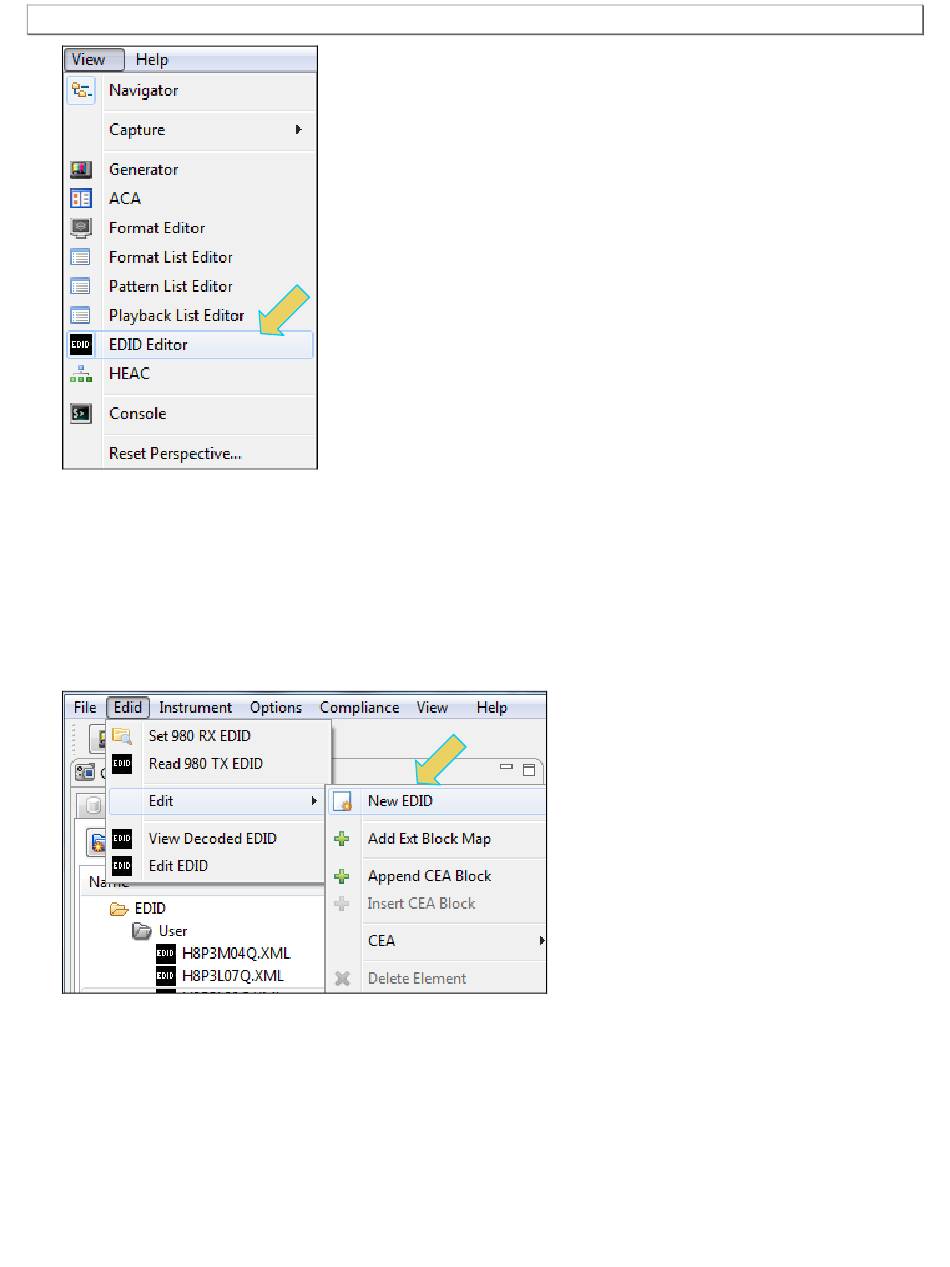

1. Select New EDID from the EDID pull-down/Edit menu.
To open an EDID stored on your host PC:
2. Access the EDID tab under the Navigator tab as shown below.
