980 HDMI Protocol Analyzer User Guide

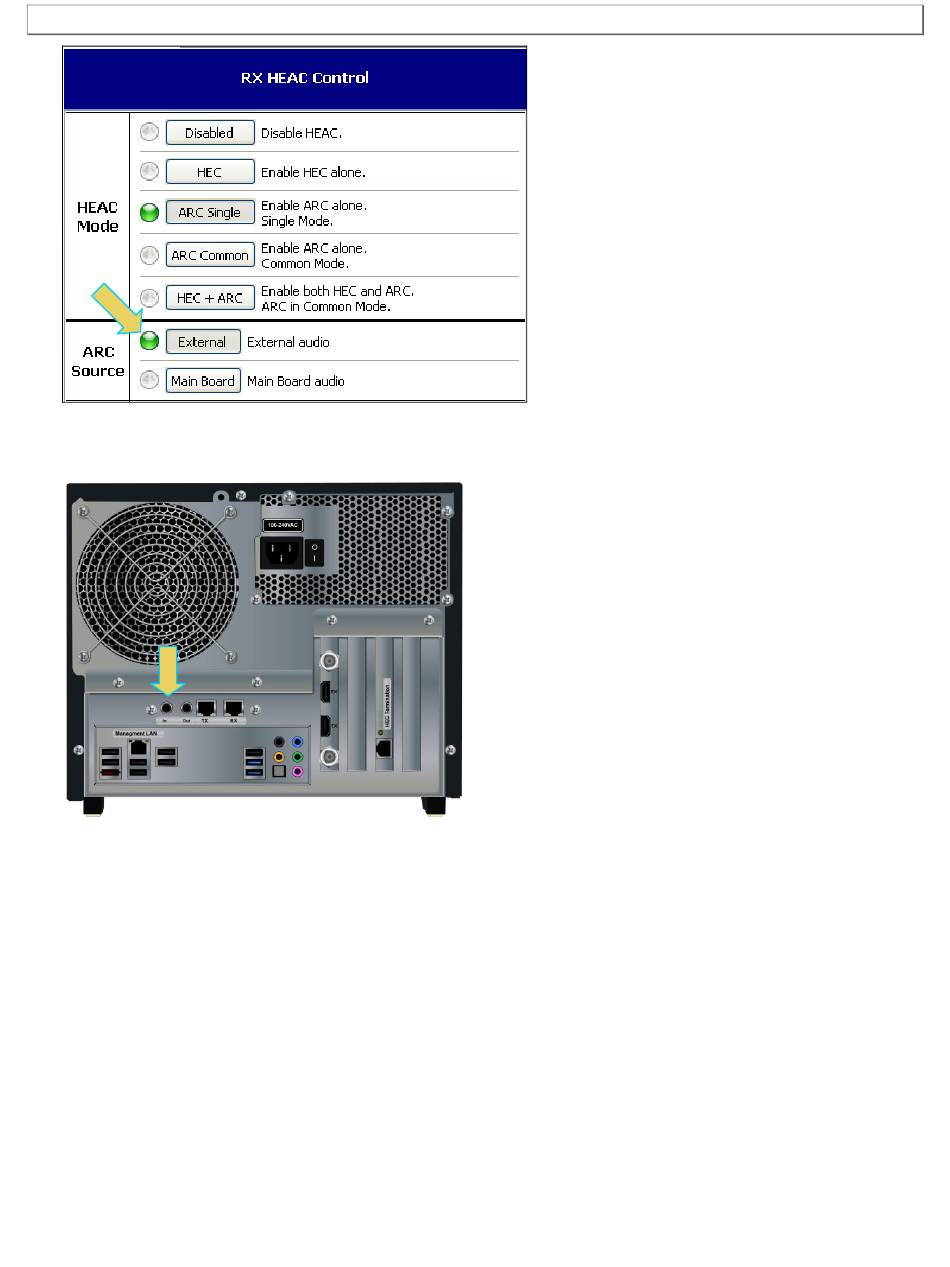

You will need to connect your external SPDIF source to the SPDIF In RCA connector on the rear of the 980 as
indicated in the image below:

13.2 Test ARC on an HDMI sink (ARC Tx)

The procedures below describe how to use the 980 HDMI Protocol Analyzer to emulate an ARC Rx device (HDMI
A/V Receiver) in order to test an HDMI sink (ARC Tx). The 980 can parse SPDIF audio from an incoming ARC
stream. The 980 HDMI Protocol Analyzer displays basic information about the SPDIF audio is provided in the
SPDIF Analysis tab. Refer to the diagram below for a depiction of the general test setup.
Page 262
Rev. A1
December 19, 2012
