980 HDMI Protocol Analyzer User Guide

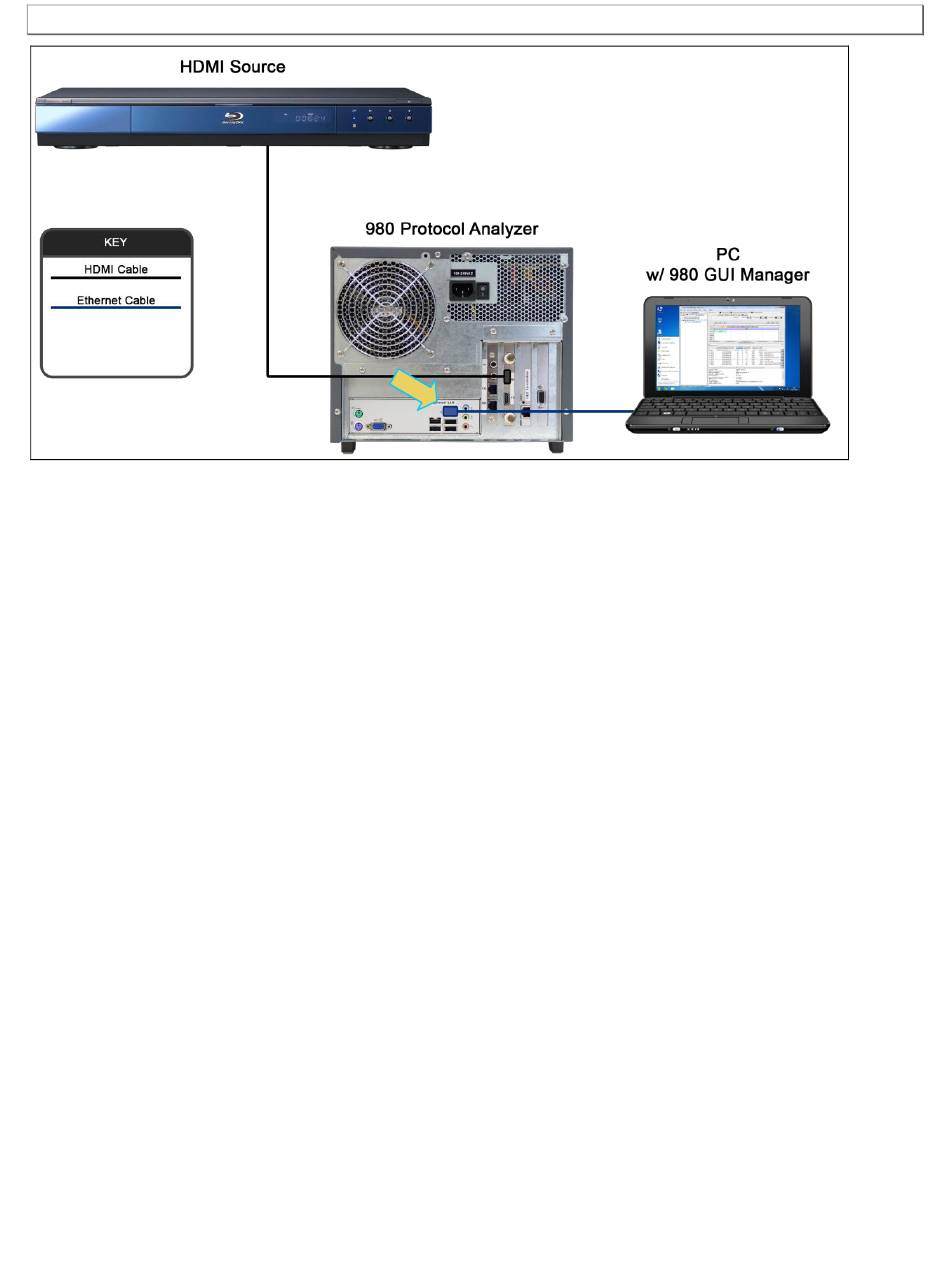

Ethernet direct connection
1. Connect an Ethernet cable from the 980 Ethernet jack on the lower left half of the back panel of the 980
Protocol Analyzer frame to your PC hosting the 980 GUI Manager. The IP address on this 980 port is
configurable using the procedures that follow.
2.7.2 Setting the IP address of the 980 HDMI Protocol Analyzer
This procedure describes how to set the IP address of the 980 HDMI Protocol Analyzer. You can change the 980's
IP address through the 980's front panel touch screen display manually or use the command line. You can also
allow the network DHCP server to assign an IP address. These procedures assume that you have powered up the
980 and that the embedded 980 GUI Manager has been launched and established a physical Ethernet connection
between the PC hosting the 980 GUI Manager and the 980.
To set the IP address of the 980 through the embedded 980 GUI Manager:
1. One option for accessing the Instrument Settings dialog box to set the IP address is to touch select the
terminal icon on the lower right corner of the 980 built-in display to access the Connection Properties dialog
box to view the current IP address. If the IP address of the 980 is compatible with IP address of your PC and
corporate network, no further action is required.
