980 HDMI Protocol Analyzer User Guide
indication (on the right) of the location within the captured data, expressed as a percent with 0% indicating that
the trigger event occurs at the beginning of the captured data and 100% indicating that the trigger event occurs
at the end of the captured data.

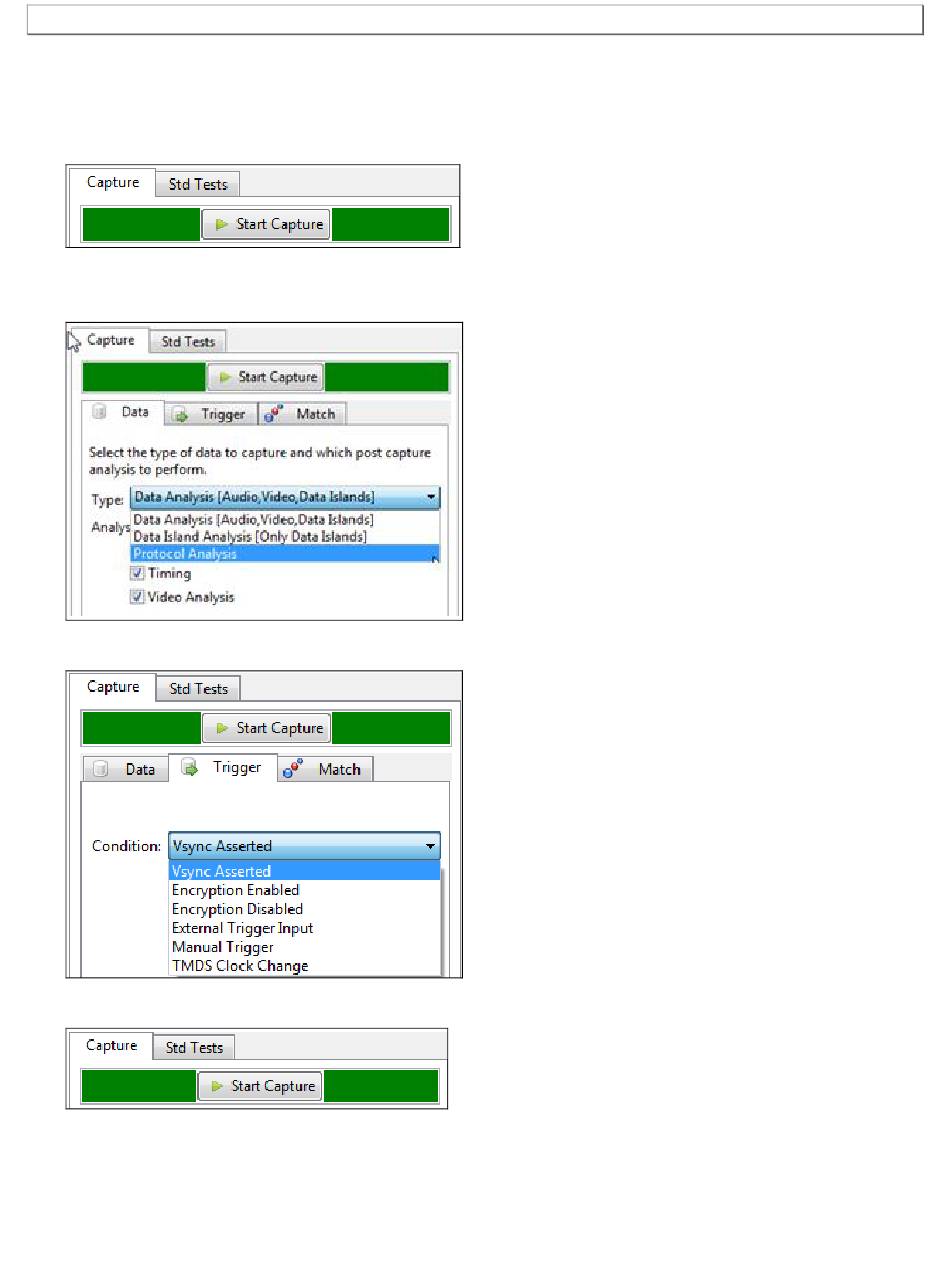

4. Select the Capture tab under the Options section of the Capture Control panel.
5. Select Data Analysis (Audio, Video, Data Islands) in the Data Selection Type pull-down menu provided as
shown below. Then make sure you check the Timing check box.
6. Select Vsync Asserted for the Trigger Selection condition.
7. Click on the Execute Capture button to initiate the test.
The 980 Protocol Analyzer will capture the data including the timing data. A series of dialog boxes will appear
showing the capturing in progress (one example shown below).
