980 HDMI Protocol Analyzer User Guide

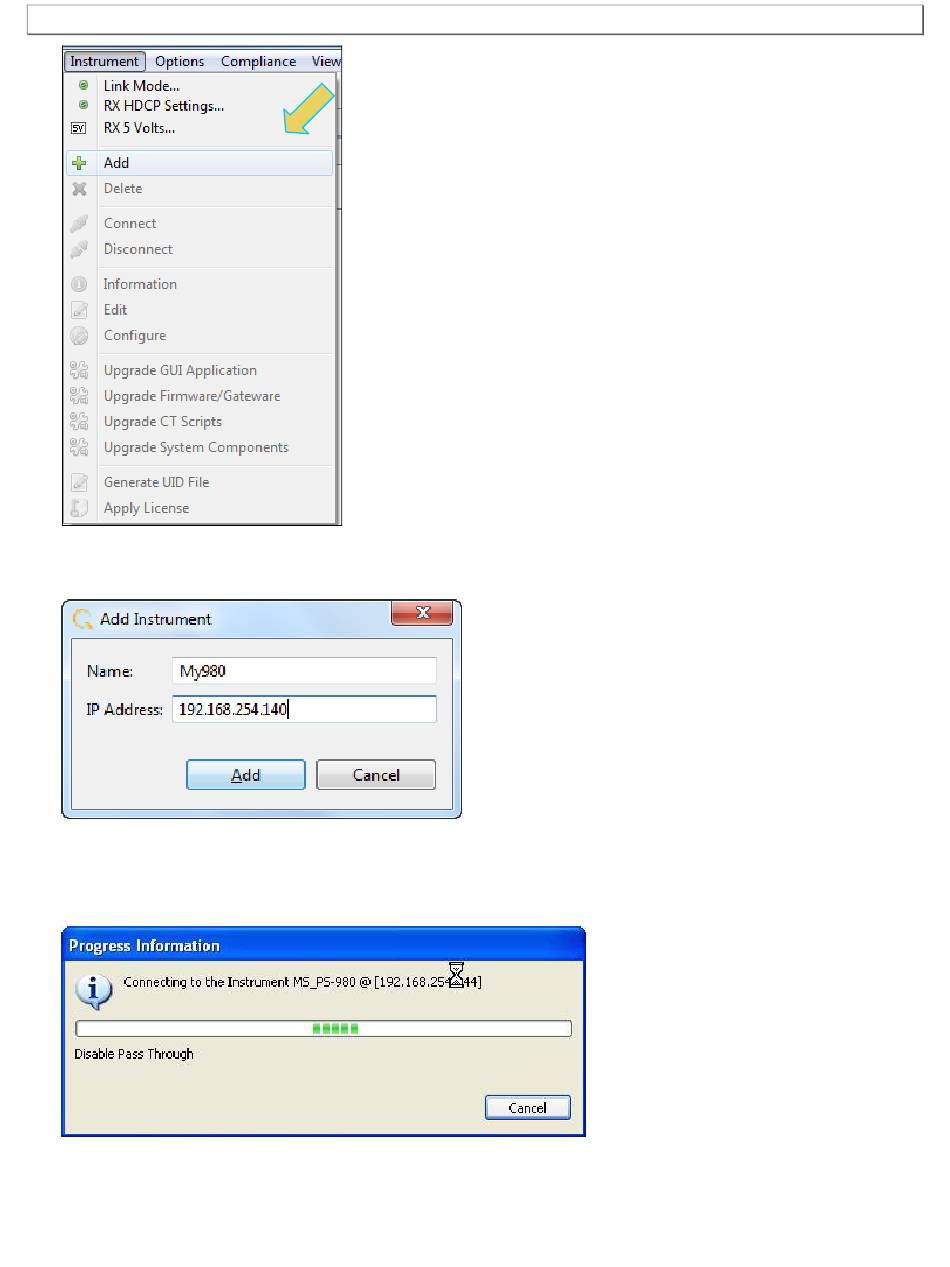

The Add Instrument dialog appears enabling you to enter the name and IP information for the 980 that you
are trying to connect to (below).
2. Enter the name (any suitable name) and IP address of the 980 that you want to connect to in the Add
Instrument dialog box (above) and click on the Add activation button.
You will see a series of messages on a dialog boxes describing the progress. One example is shown below:
