980 HDMI Protocol Analyzer User Guide

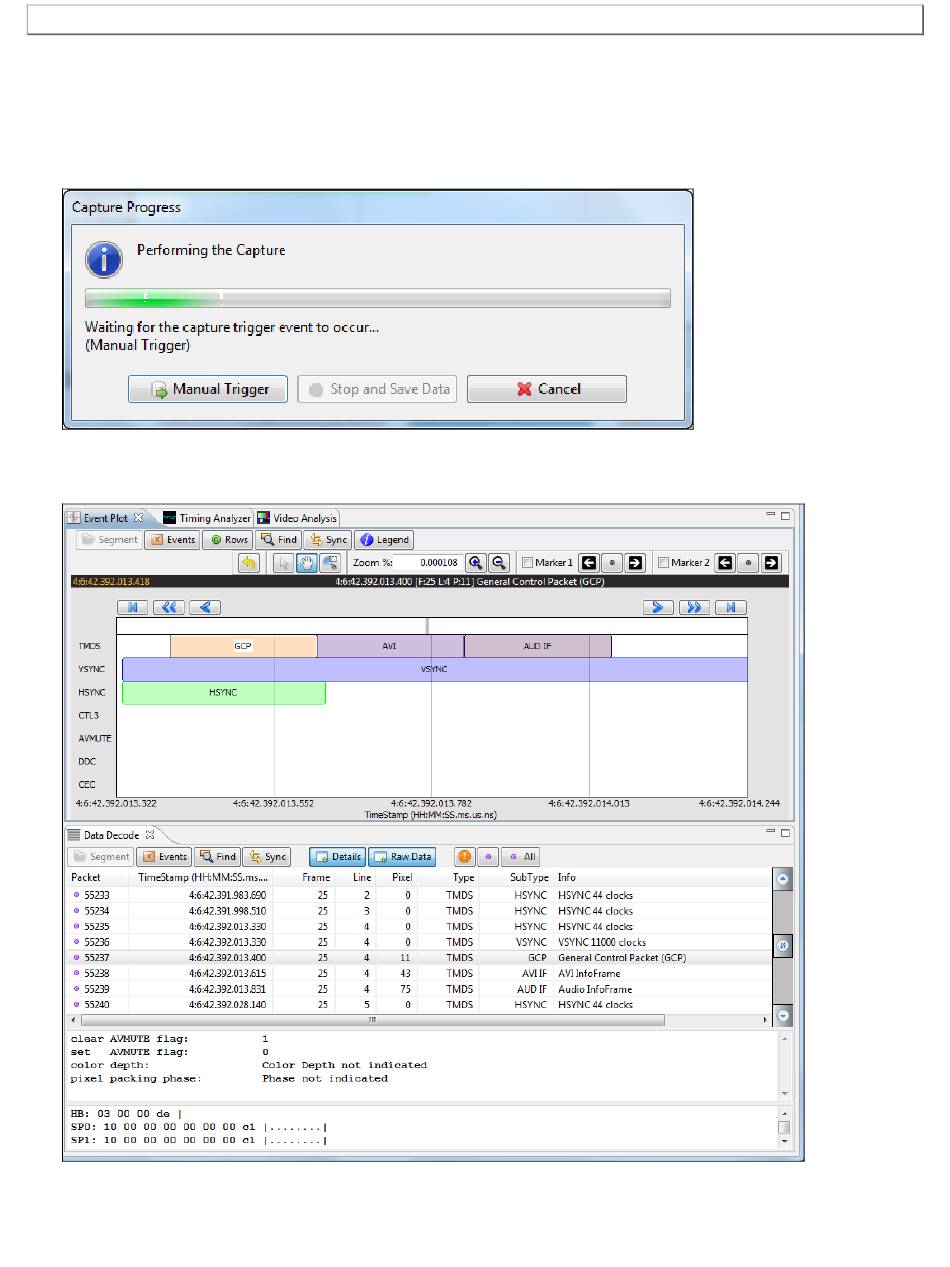

The 980 HDMI Protocol Analyzer will capture the data. A series of dialog boxes will appear showing the
capturing in progress (one example shown below).
Note: If there is some action that needs to be taken by a user in order to cause the trigger condition occur, the
capture dialog box will stating "Waiting for capture trigger to occur..." This is shown in the following screen
shot.
When the 980 HDMI Protocol Analyzer is done capturing data a decode file is shown in the Event Plot panel
and the Data Decode panel.
