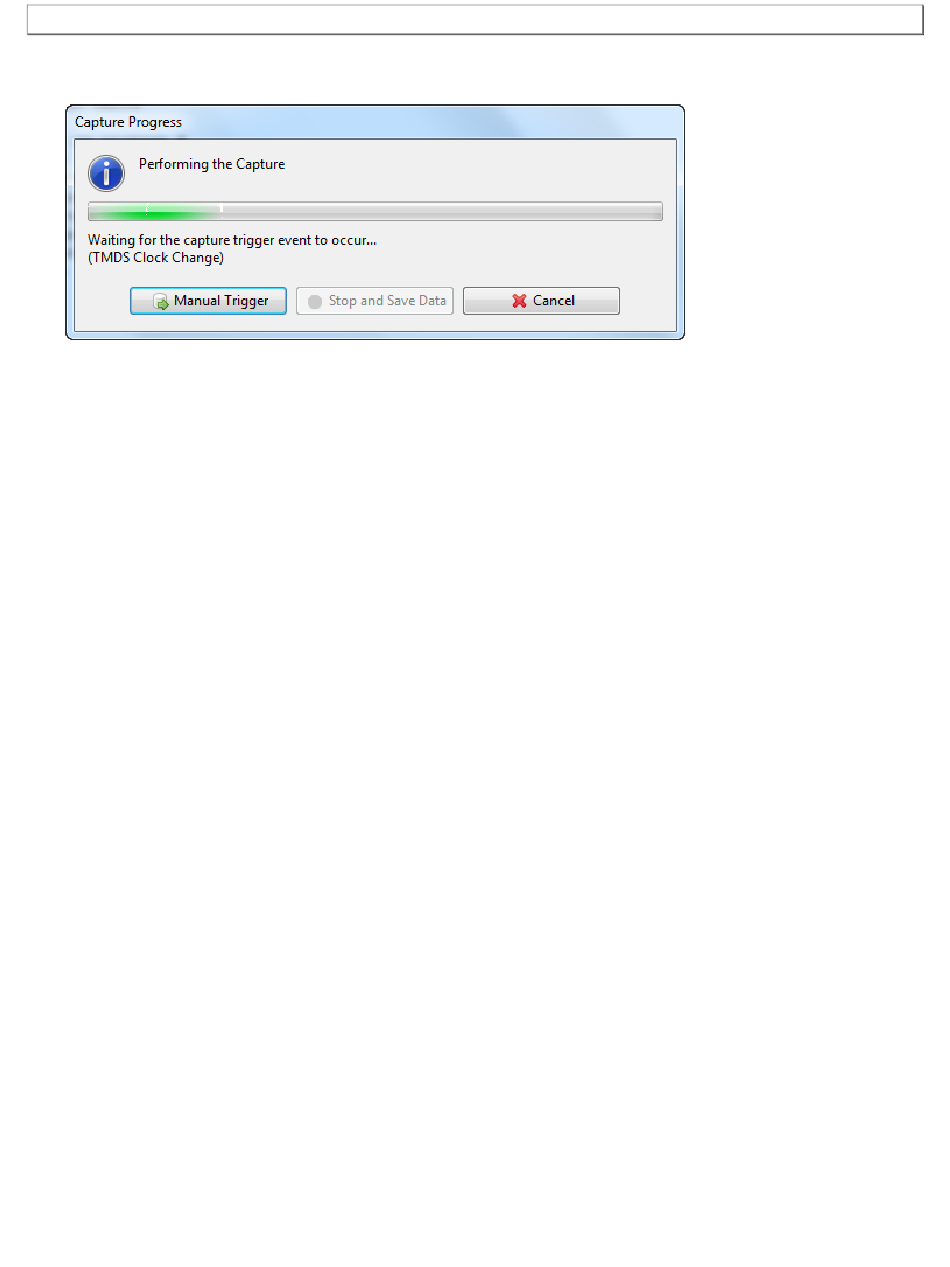

Note: If there is some action that needs to be taken by a user in order to cause the trigger condition occur, the
capture dialog box will indicate that. This is shown in the following screen shot.
When the 980 HDMI Protocol Analyzer is done capturing data you can view the timing parameters in the
Timing Analyzer panel. The Timing Analysis panel has three subpanels: 1) Video Format, 2) Frame
Statistics 3) Line Statistics. The Video Format panel shows a summary of the key parameters and indicates
the standard format timing that the timing parameters detected from the source match. If there is not a precise
match between the timing parameters of a format in the 980 HDMI Protocol Analyzer format library and the
measured values, the 980 will select the format nearest to the values measured and indicate any parameters
that deviate from that standard timing.
The Frame Statistics panel shows the frame or vertical parameters. When you highlight a particular frame,
the parameters for each of the lines in that frame are listed in the Line Statistics panel.
The Frame Statistics panel also indicates whether the frame is encrypted or not. If the frame is encrypted a
key icon will be shown on the left side of each frame. Refer to the screen example below.
