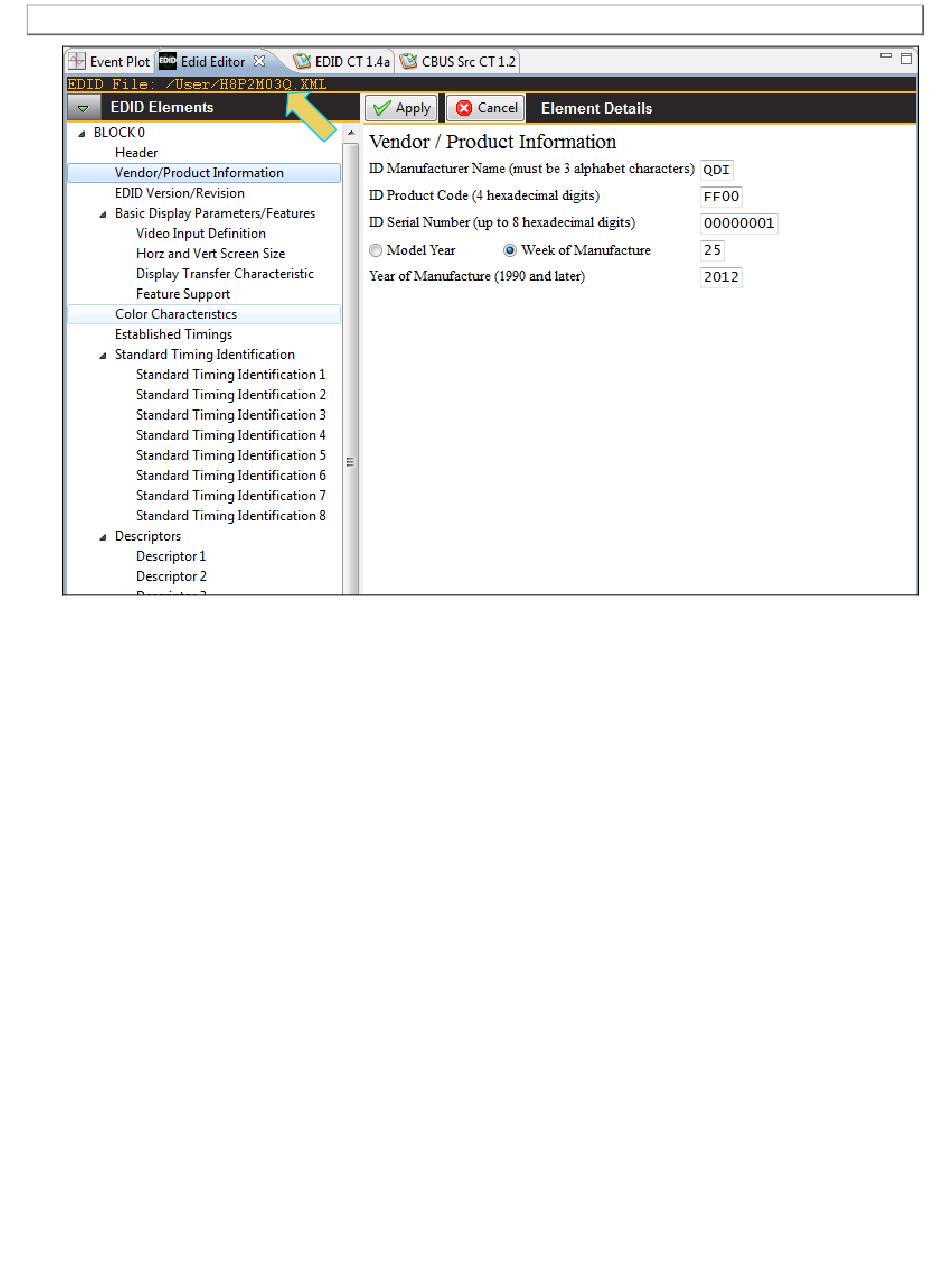

4.11 Making Modifications to an EDID with the EDID Editor

Once you have loaded an EDID you can make changes to individual field values, add data blocks, delete data
blocks, add or delete timings or audio formats supported, etc. You can enable or disable parameters using radio
buttons or check boxes and you can change values through pull-down menus or text field boxes.
To make a change to an EDID loaded into the EDID Editor:
1. To add a block into an EDID, use the pull-down menus as shown below (adding a Video Data Block into the
CEA Extension block):
