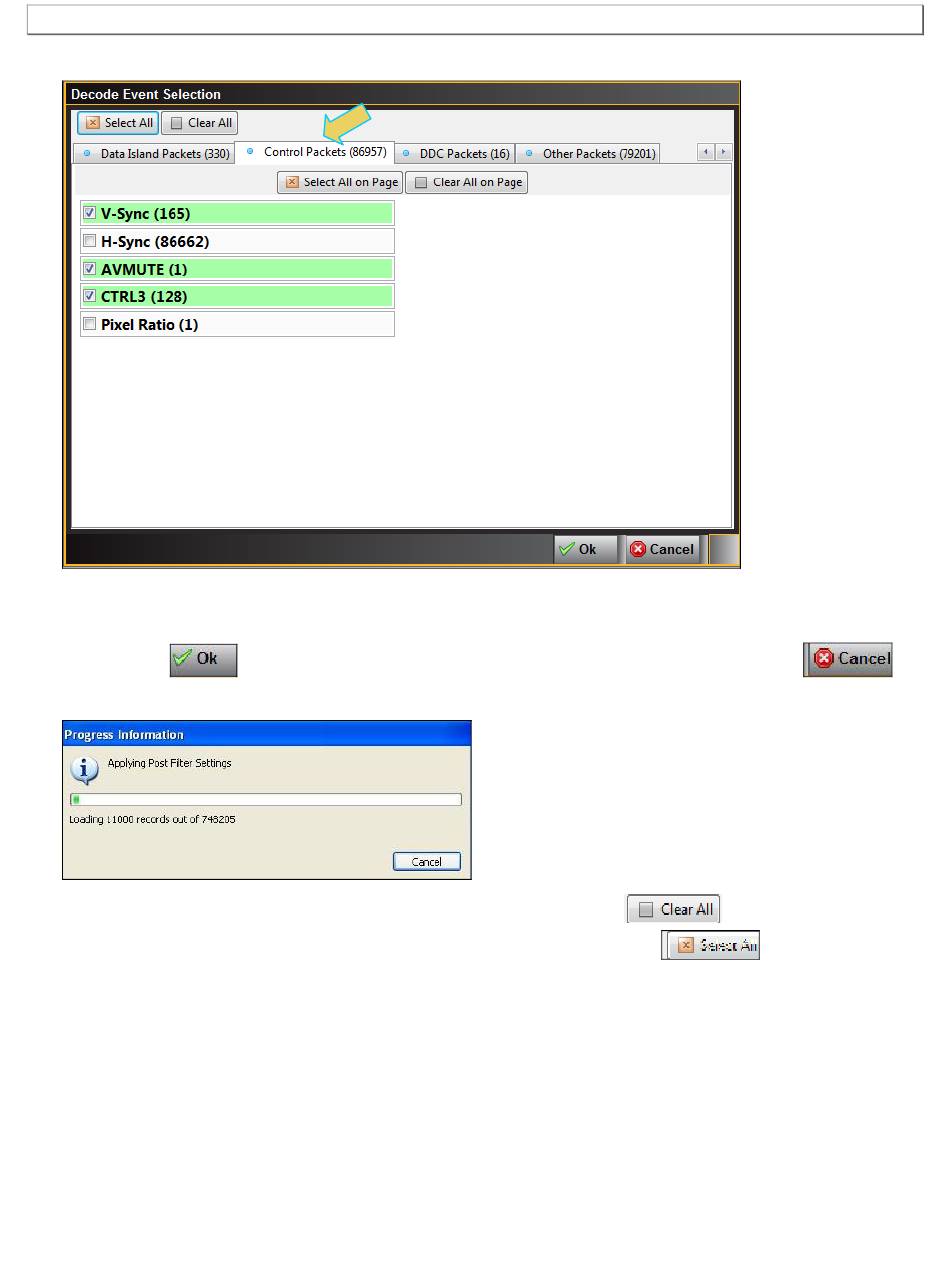

The following is a screen example of the Control Packets page.
2. Select the data items you want to appear in the Data Decode panel. The filtering you apply in this series of
dialog boxes also applies to the Event Plot panel.
3. Click the OK
button to exit without saving the changes.
Note that you can clear all the selections on all pages with the Clear All
top left. Alternatively you can select all items on all pages with the Select All
You can also apply the same Select and Clear operations to each tab of the Decode Event Selection dialog
box.
Page 198
