980 HDMI Protocol Analyzer User Guide Rev. A1
4.5

Event Plot Panel

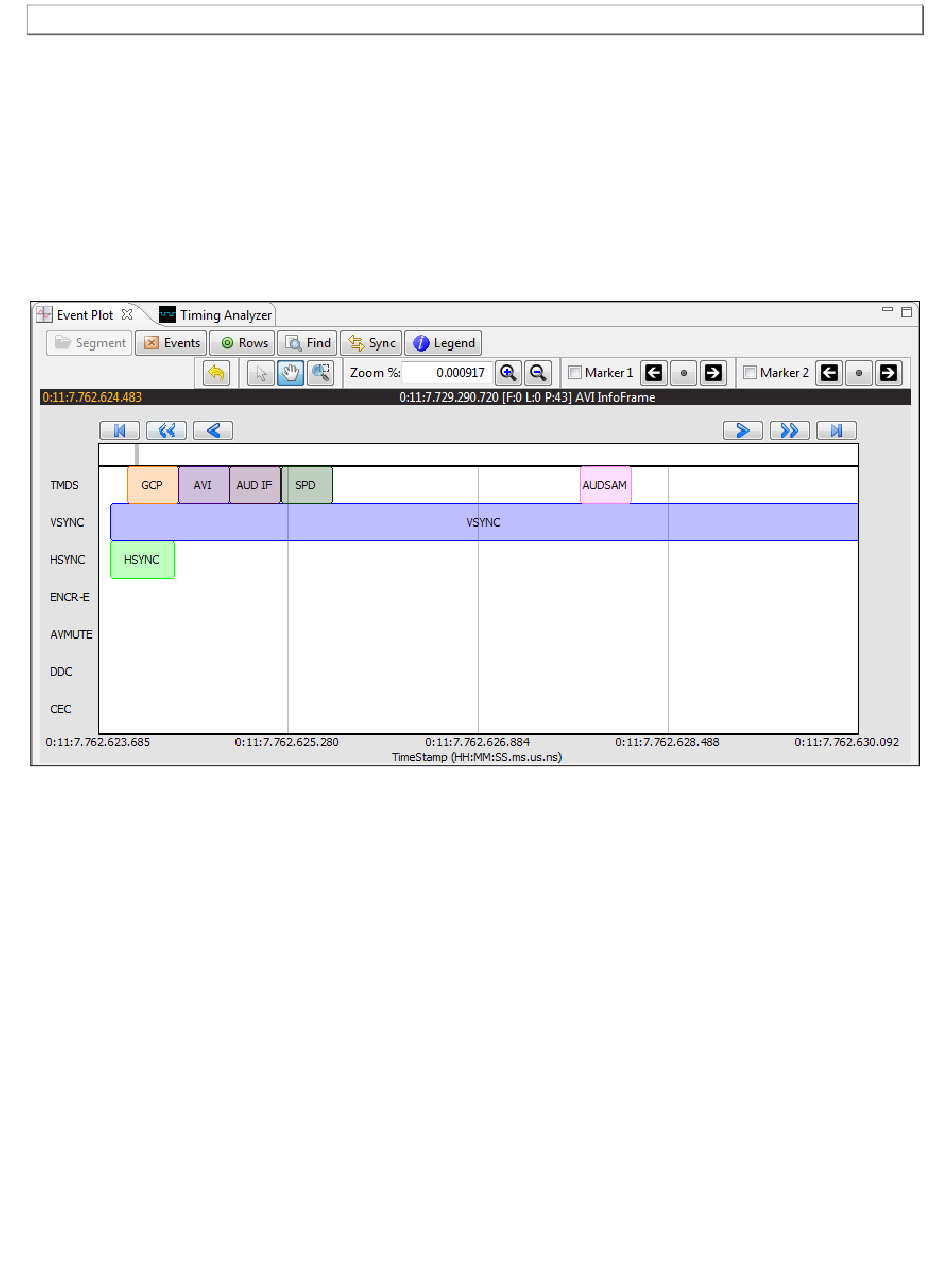

The Event Plot panel (shown below) is the primary panel for locating the data for high level navigation to the detail
level provided by the Data Decode panel. The vertical axis is the data types. The Event Plot panel provides a set
of data types labeled on the left of the panel that inform you of the type of data for that layer. (You can change this
configuration.) The horizontal axis is time. The scale along the bottom of the Event Panel shows the timestamp for
each point in time.
The example shows data captured in the Data Analysis mode where the audio, video and data islands are
captured.
Page 69 December 19, 2012
