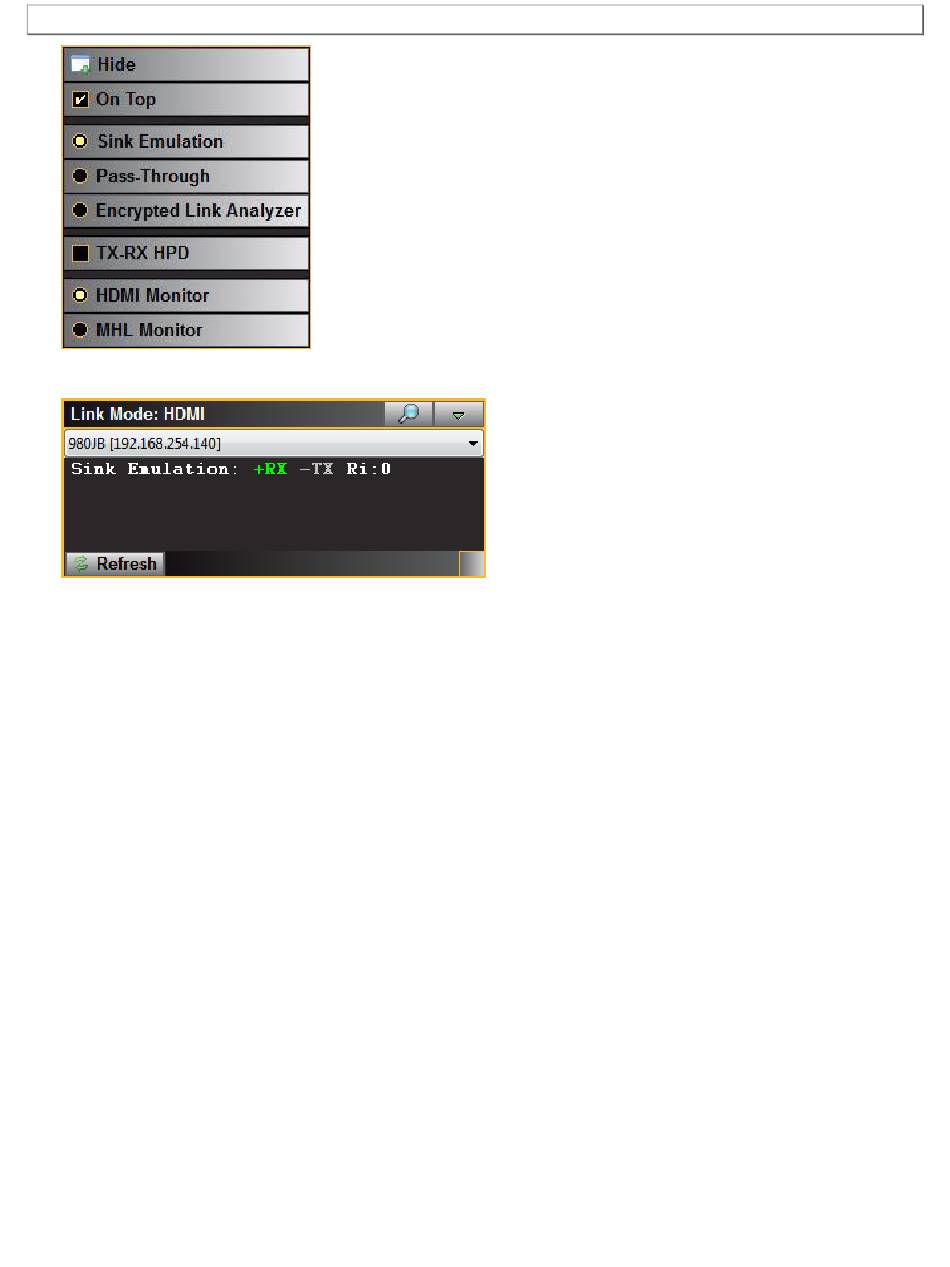

The Link Mode menu will show HDMI as the Link Mode.
6.3.2 Monitoring the HDMI DDC Transactions in Real Time mode
Use the following procedures to monitor the HDMI DDC transactions from an HDMI source device in real time. The
procedures assume that the HDMI source device is powered up and connected to the 980 HDMI Protocol Analyzer
Rx port. The procedure also assumes that the 980 HDMI Protocol Analyzer is in the HDMI mode.
The following diagrams depict the test setups. There are two configurations: 1) you can monitor the DDC
transactions with the 980 HDMI Protocol Analyzer emulating an HDMI sink device or 2) you can passively monitor
the DDC transactions between an HDMI source and sink device.
