980 HDMI Protocol Analyzer User Guide

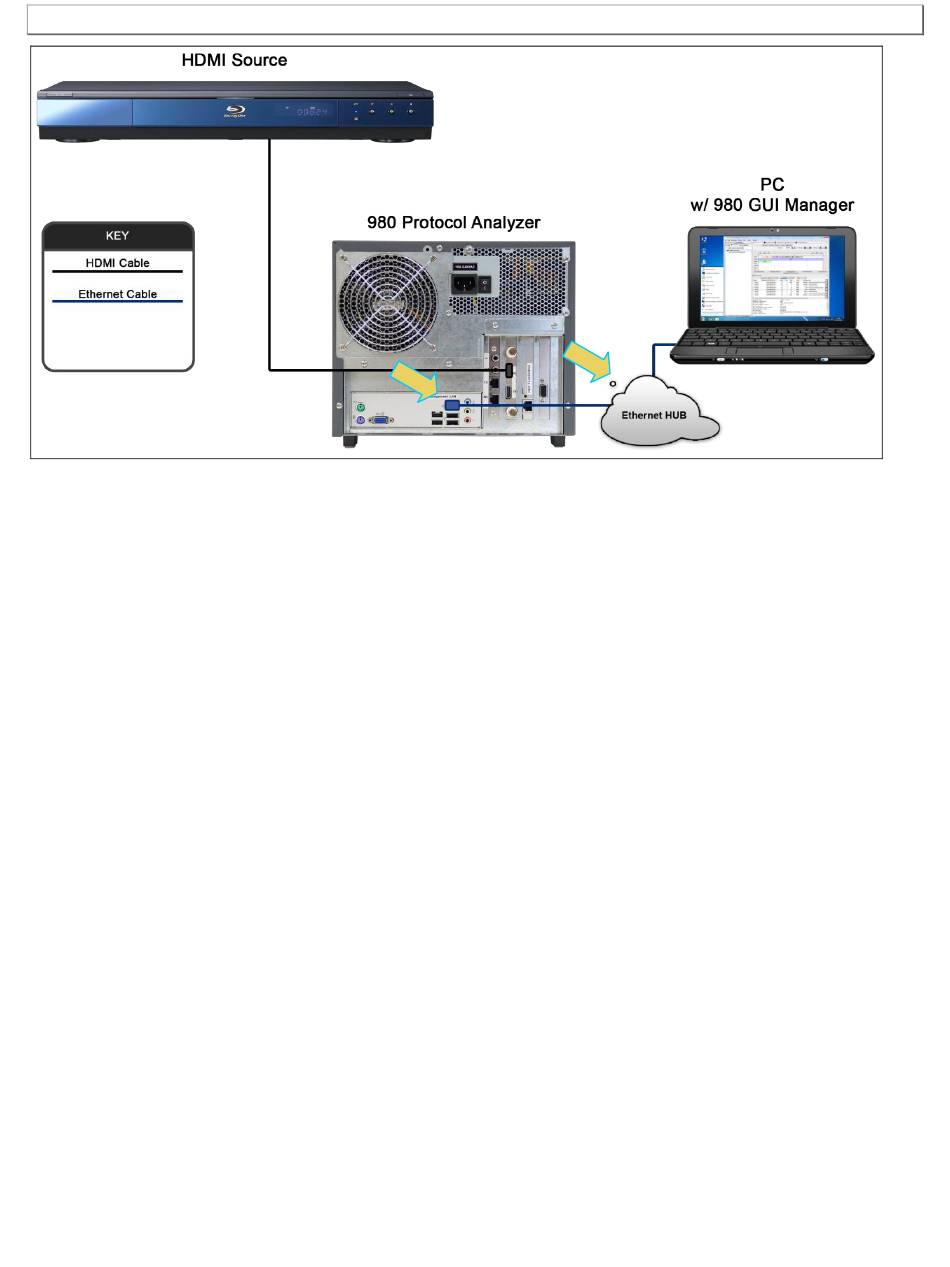

Ethernet connection through Hub
1. Connect an Ethernet cable from the 980 Ethernet jack on the lower left half of the back panel of the 980
Protocol Analyzer to your corporate LAN. The IP address on this 980 Ethernet port is configurable using the
procedures that following. Refer to the diagrams below.
2. Connect an Ethernet cable from your PC hosting the external 980 GUI Manager to your corporate LAN or local
Ethernet hub.
To make the physical connections using Ethernet Point-to-Point connection with the external GUI
Manager:
This procedure is used when using the external 980 GUI Manager and connecting to the 980 directly with an
Ethernet cable. If you are connecting through your corporate LAN, use the previous procedure. This procedure is
required to establish an IP session between the 980 GUI Manager running on the 980 Protocol Analyzer. This
procedure assumes that you have assembled the 980 Protocol Analyzer, host PC and source device under test
and applied power to all these devices. Refer to the diagrams and procedure below. The first illustration shows a
direct Ethernet connection when testing an HDMI source.
