4.5.7 Working with Markers
The Event Plot panel enables you to view the data at a high level and identify points of interest for further analysis.
You can set two cursors or "markers" in the Event Plot panel at particular points of interest. The Event Plot will
show you the time difference between the two cursors. You can fine tune the position of the cursors with the left
and right arrows associated with each marker . The center icon allows you to

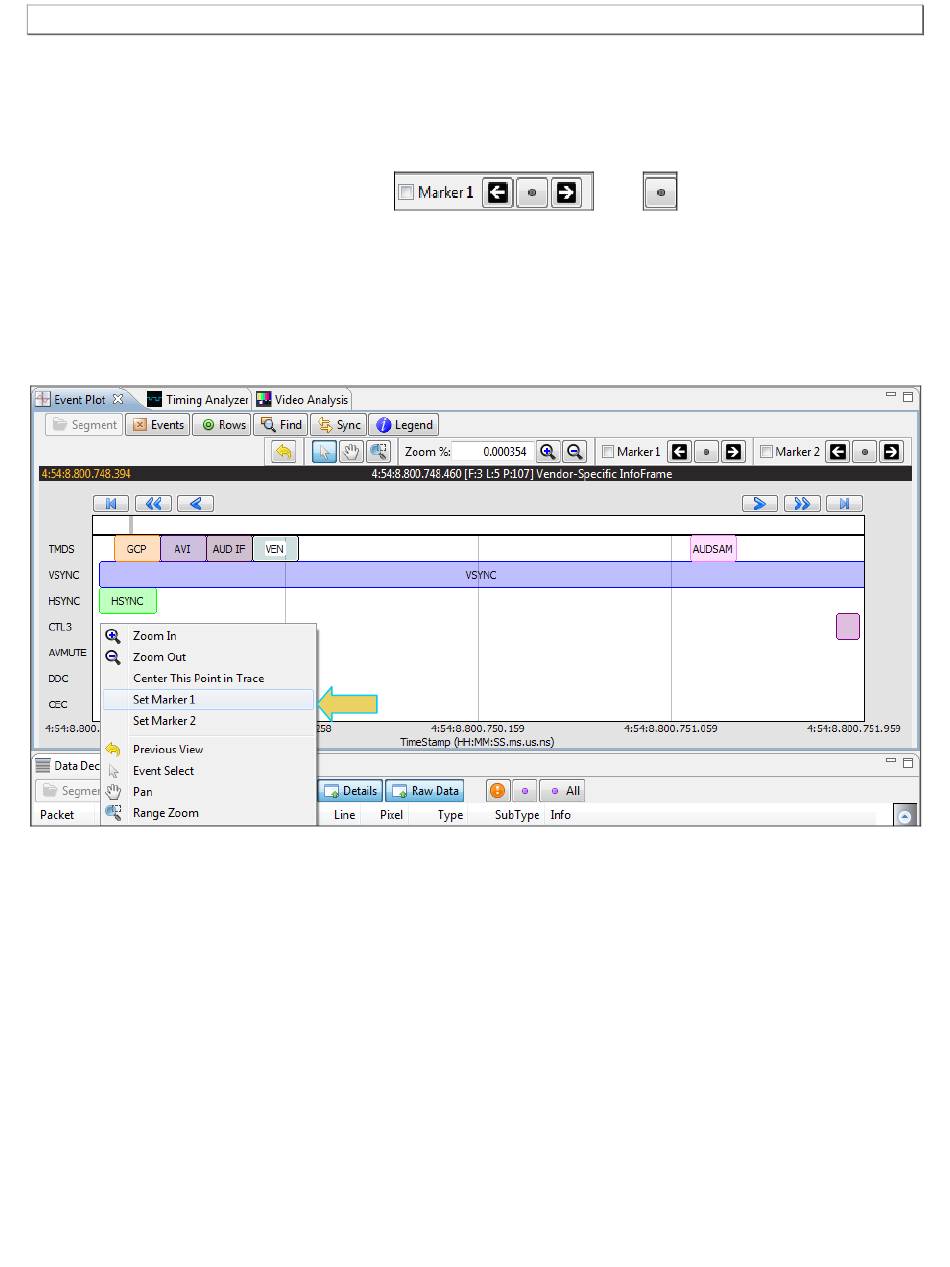

center the particular marker on the Event Plot window. The screens below show the markers being set and the
resulting markers placed in the Event Plot panel. Note that you can also set the markers using the right click menu
also shown below and this is the preferred method because the markers will appear exactly where you right click.
You can see the timestamp associated with each marker which are color coded (blue and red) just above the area
where the data is shown. The dark text to the right shows the difference in microseconds and pixels between the
two markers.
