6 Auxiliary Channel Analyzer (ACA)
The ACA (Auxiliary Channel Analyzer) enables you to view the DDC traffic for HDMI streams. The Real Time
viewing of DDC and CBUS traces is only available through the embedded GUI. However, you can save these ACA
traces and then view them with the ACA application off-line from a PC.
6.1
Accessing the ACA Panel

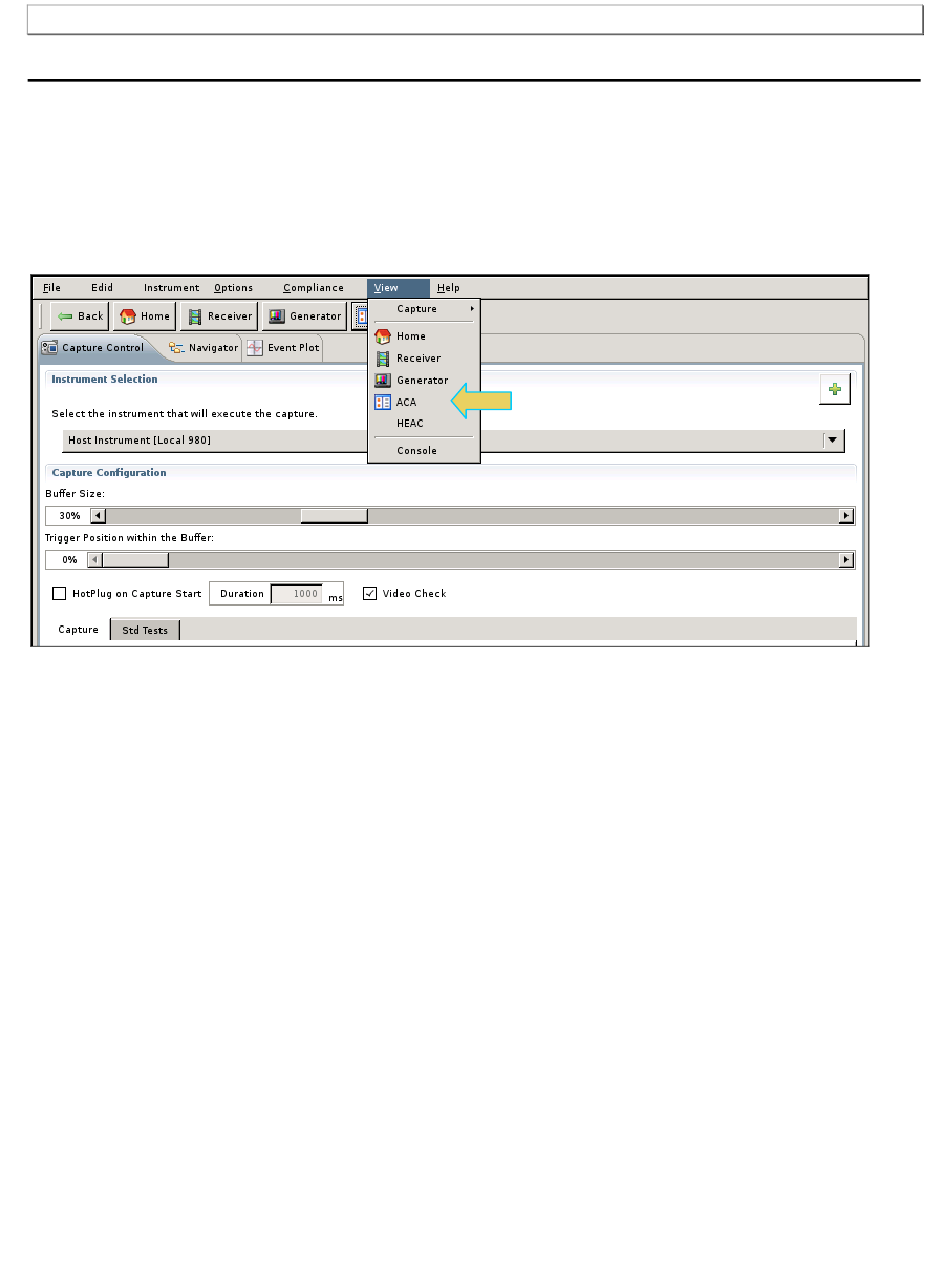

The ACA Real Time viewer can be accessed through the View pulldown menu as shown below.
The ACA window appears as shown below:
Page 126
December 19, 2012
