980 HDMI Protocol Analyzer User Guide
Rev. A1

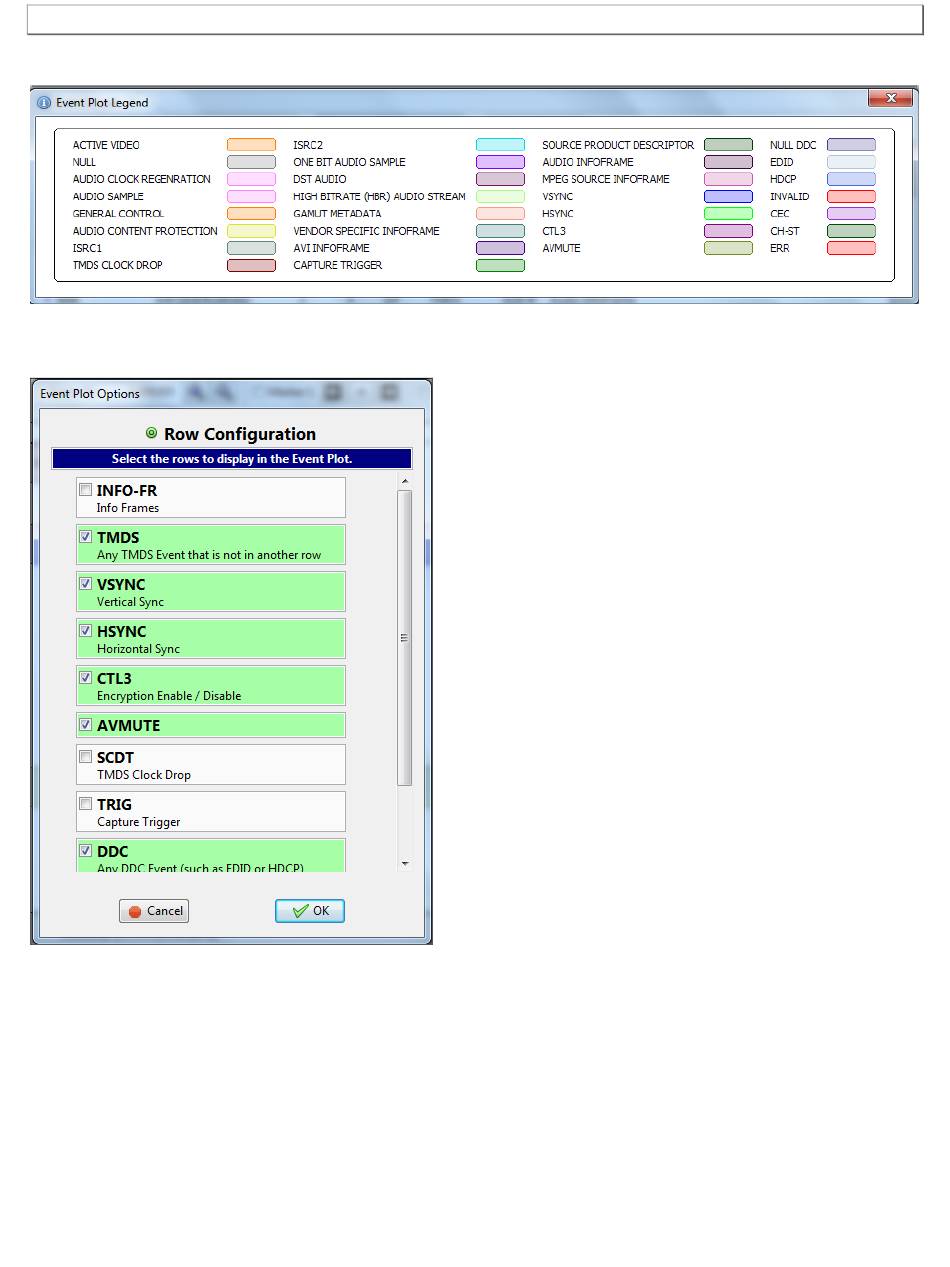

The Event Plot legend panel is shown in the screen shot below.
The Event Plot Row configuration dialog panel is shown in the screen shot below. The default configuration is
shown below. Simply check the time items that you wish to show in the Event Plot. Then click OK.
Page 75
December 19, 2012
