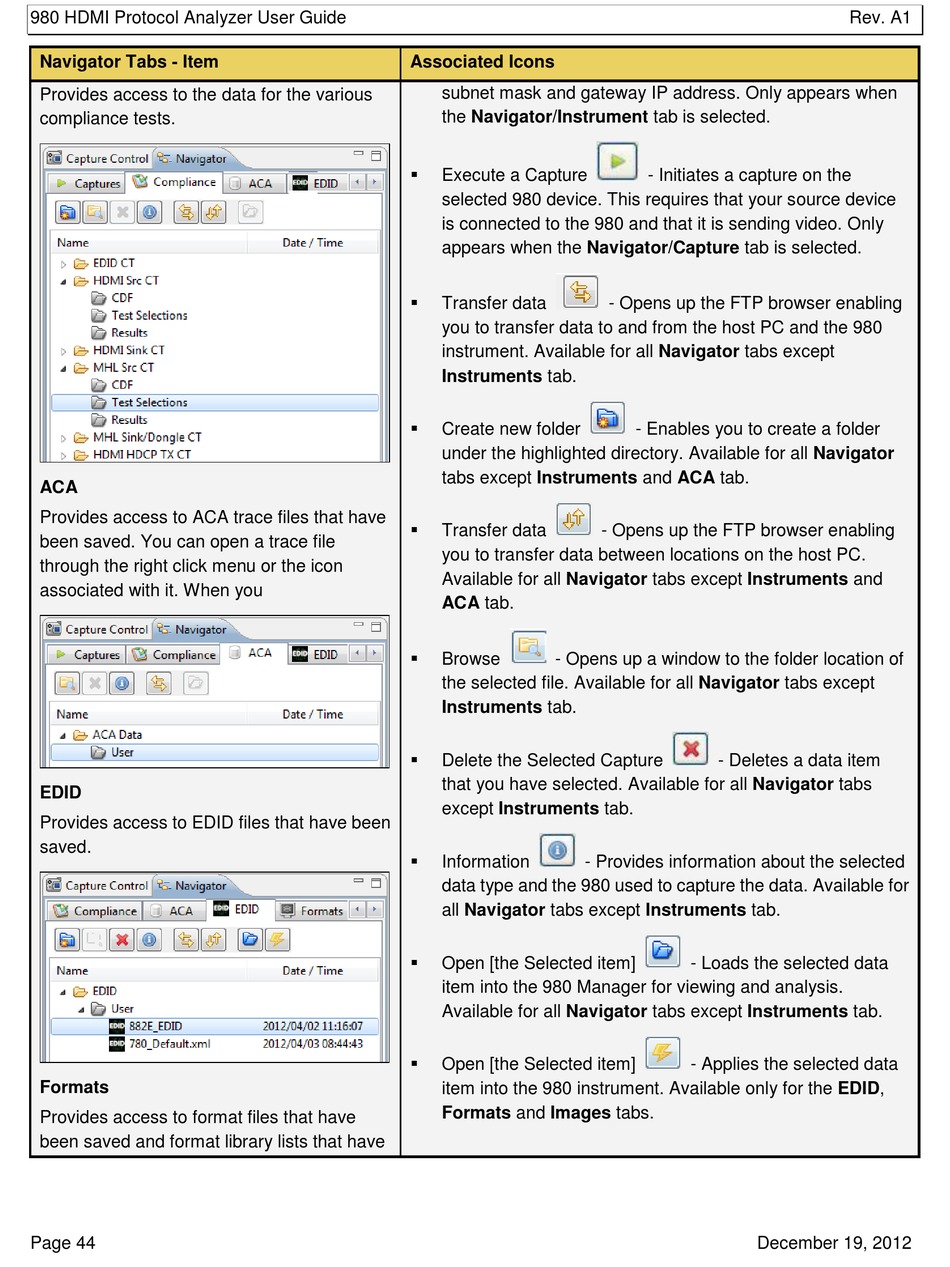

980 HDMI Protocol Analyzer User Guide
Navigator Tabs - Item
Provides access to the data for the various
compliance tests.
ACA
Provides access to ACA trace files that have
been saved. You can open a trace file
through the right click menu or the icon
associated with it. When you
EDID
Provides access to EDID files that have been
saved.
Formats
Provides access to format files that have
been saved and format library lists that have
Page 44
Associated Icons
subnet mask and gateway IP address. Only appears when
the Navigator/Instrument tab is selected.

Execute a Capture
selected 980 device. This requires that your source device
is connected to the 980 and that it is sending video. Only
appears when the Navigator/Capture tab is selected.

Transfer data
you to transfer data to and from the host PC and the 980
instrument. Available for all Navigator tabs except
Instruments tab.

Create new folder
under the highlighted directory. Available for all Navigator
tabs except Instruments and ACA tab.

Transfer data
you to transfer data between locations on the host PC.
Available for all Navigator tabs except Instruments and
ACA tab.

Browse - Opens up a window to the folder location of
the selected file. Available for all Navigator tabs except
Instruments tab.

Delete the Selected Capture
that you have selected. Available for all Navigator tabs
except Instruments tab.

Information - Provides information about the selected
data type and the 980 used to capture the data. Available for
all Navigator tabs except Instruments tab.

Open [the Selected item]
item into the 980 Manager for viewing and analysis.
Available for all Navigator tabs except Instruments tab.

Open [the Selected item]
item into the 980 instrument. Available only for the EDID,
Formats and Images tabs.
- Initiates a capture on the
- Opens up the FTP browser enabling
- Enables you to create a folder
- Opens up the FTP browser enabling
- Deletes a data item
- Loads the selected data
- Applies the selected data
