980 HDMI Protocol Analyzer User Guide

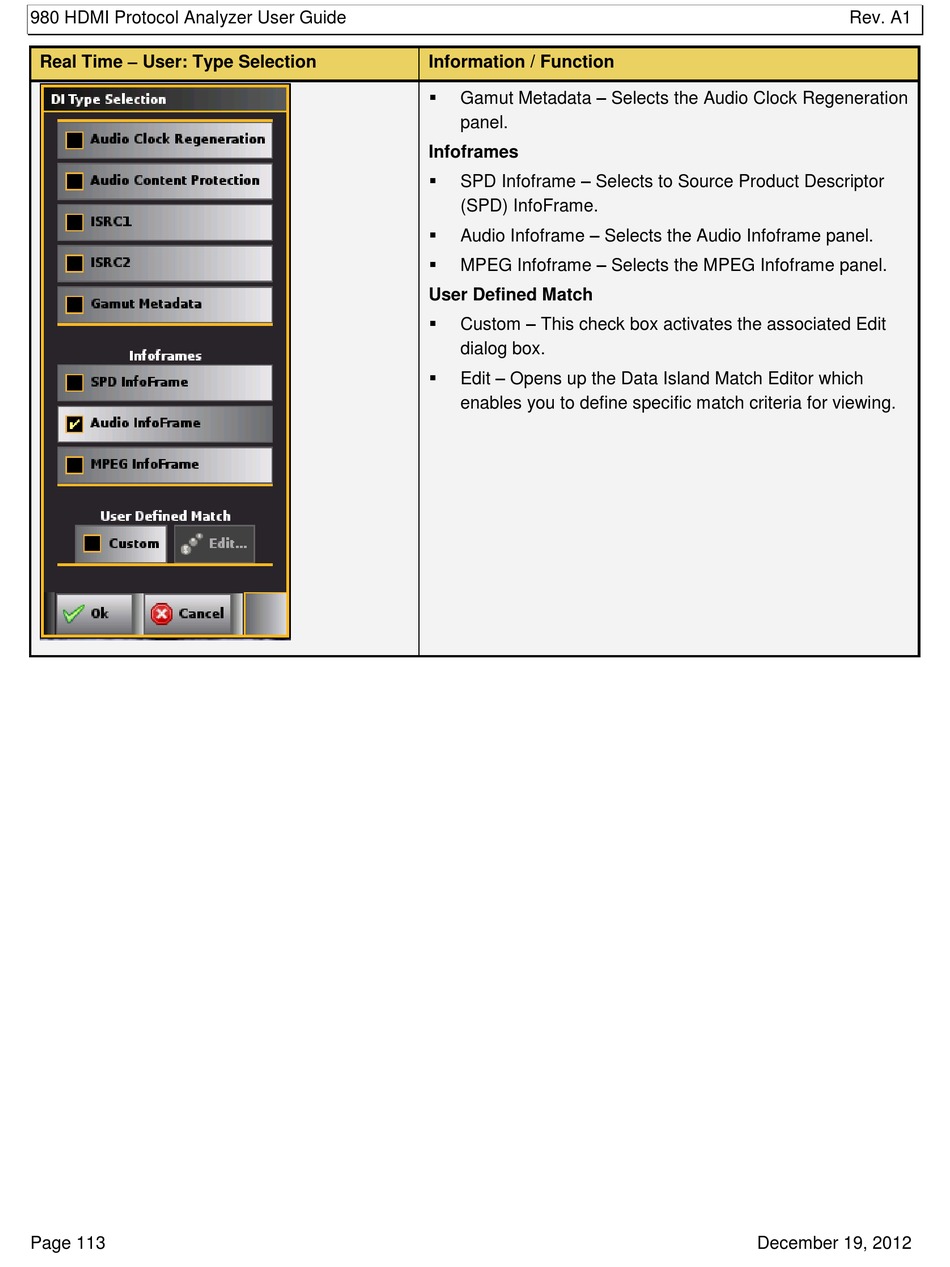

Real Time – User: Type Selection
Page 113
Information / Function
 Gamut Metadata – Selects the Audio Clock Regeneration
panel.
Infoframes
 SPD Infoframe – Selects to Source Product Descriptor
(SPD) InfoFrame.
 Audio Infoframe – Selects the Audio Infoframe panel.
 MPEG Infoframe – Selects the MPEG Infoframe panel.
User Defined Match
 Custom – This check box activates the associated Edit
dialog box.
 Edit – Opens up the Data Island Match Editor which
enables you to define specific match criteria for viewing.
Rev. A1
December 19, 2012
