The 980 HDMI Protocol Analyzer will capture the data. A series of dialog boxes will appear showing the
capturing in progress (one example shown below).
Note: If there is some action that needs to be taken by a user in order to cause the trigger condition occur, the

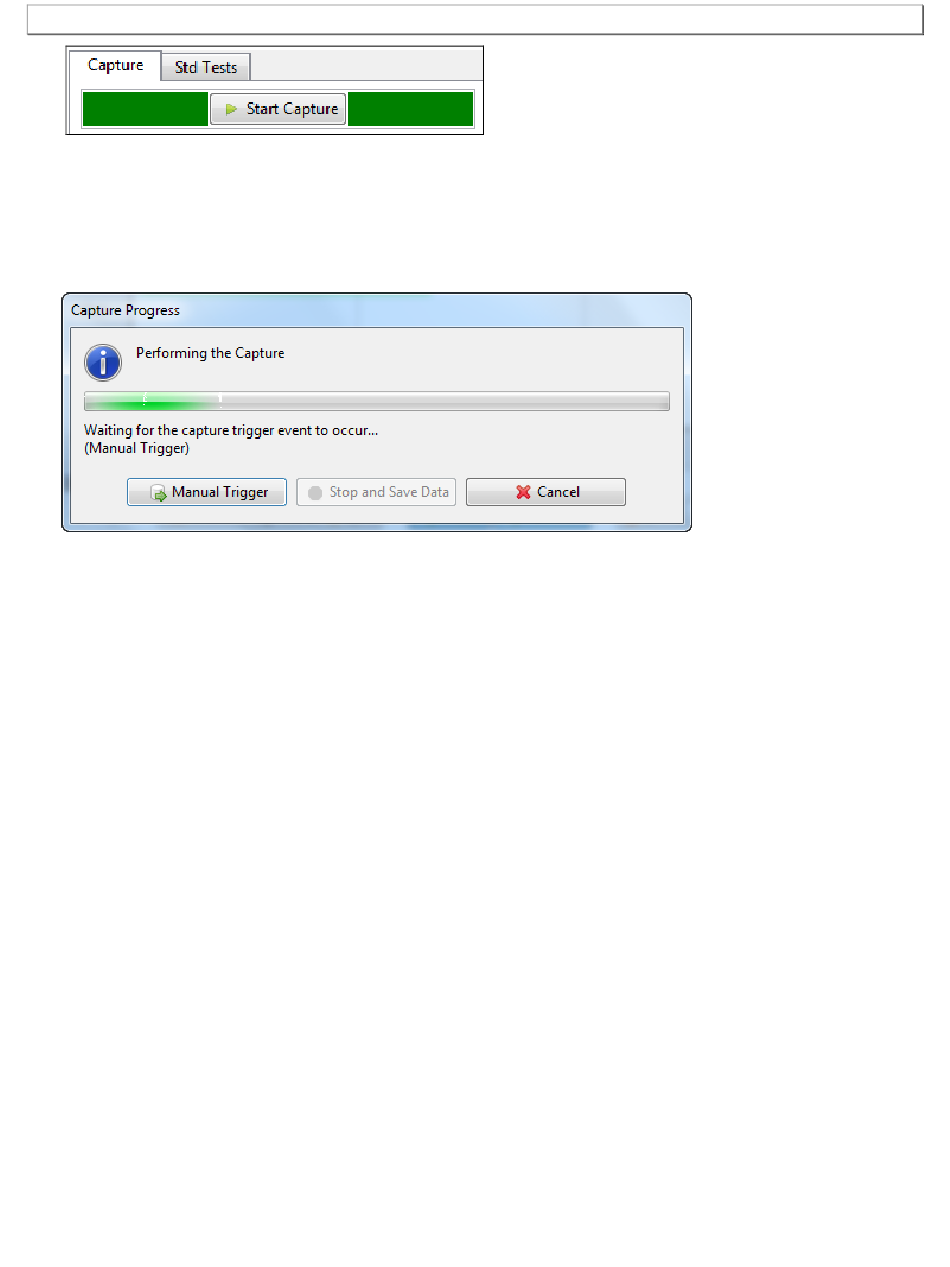

capture dialog box will stating "Waiting for capture trigger to occur..." This is shown in the following screen
shot.
