980 HDMI Protocol Analyzer User Guide
Rev. A1
9.3.3 Setting the 980 HDMI Protocol Analyzer mode to HDMI
Use the following procedures to set the 980 HDMI Protocol Analyzer to the HDMI mode.
To set the 980 HDMI Protocol Analyzer mode to HDMI:

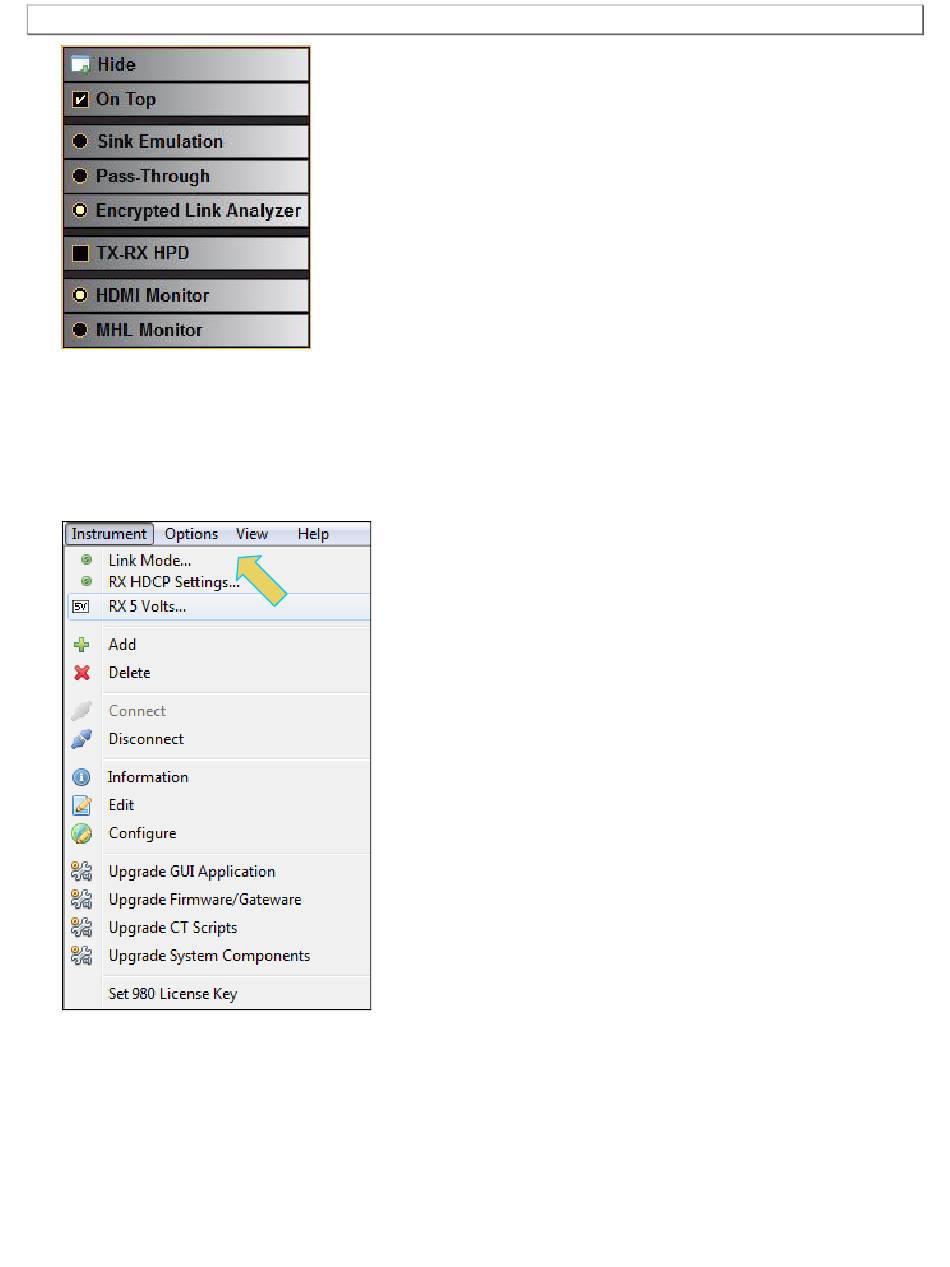

1. From the Instrument menu, select the Link Mode.
The following menu appears:
Page 214
December 19, 2012
