980 HDMI Protocol Analyzer User Guide

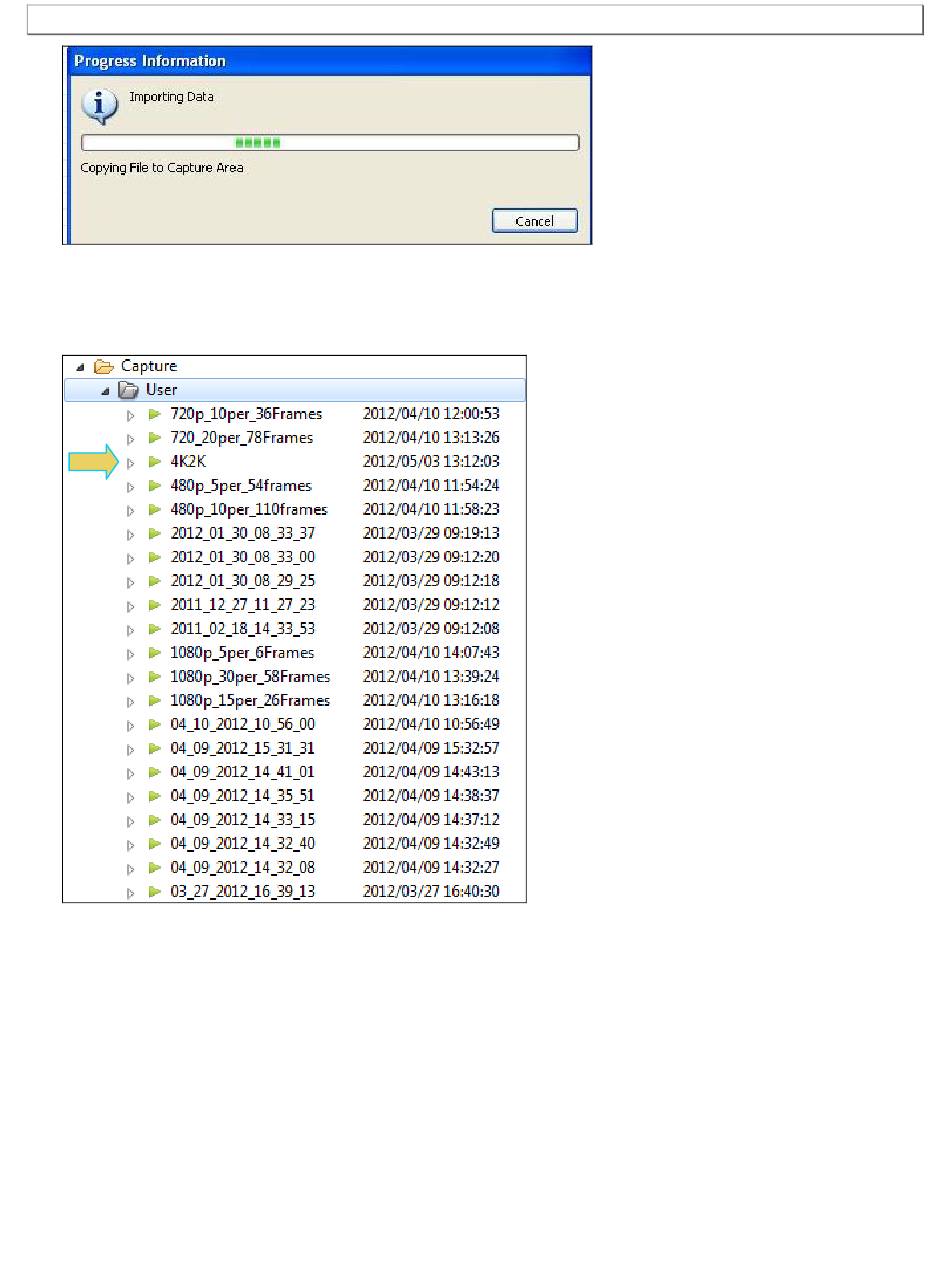

The imported file will then appear in the Data directory of the 980 Navigator panel as shown below. The
captured file is loaded automatically and has an asterisk in front of it to indicate that this capture is the one that
is loaded:
Relocating capture files to the 980 GUI Manager directory
If you receive a capture file from a colleague for analysis, you will need to be able to access it on your 980 GUI
Manager. To do this you will need to place the file in a directory that the 980 GUI Manager will be able to access it.
Use the following procedures.
1. Download the captured zip file from your FTP site, save it and unzip it on your PC that now has the 980 GUI
Manager installed.
