980 HDMI Protocol Analyzer User Guide
If you wish to use a different EDID from an HDTV that you have available you can quickly provision the 980
HDMI Protocol Analyzer with that EDID.

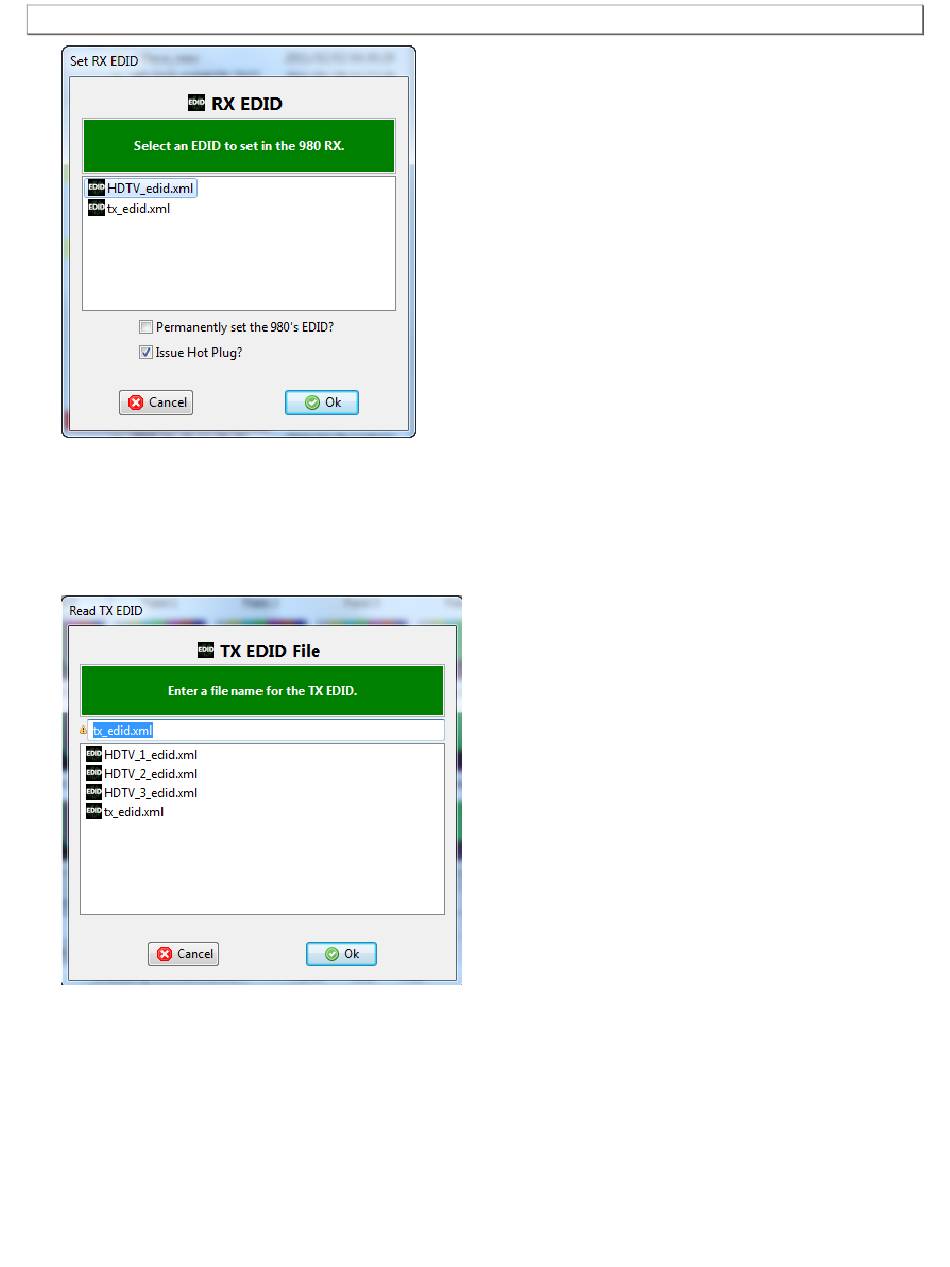

3. (optional) Connect the HDTV to the 980's Tx port and then initiating a Read 980 HDMI Protocol Analyzer Tx
EDID from the EDID pull-down menu. When you initiate a read of the EDID on the Tx port, the following dialog
box will appear:
4. Assign a name to the EDID and then click Ok to save the EDID for use on the 980 Rx port.
8.8

Viewing Incoming Video (Built-Embedded GUI only)

Prior to a capture you may wish to view the incoming video from the source device under test. This subsection
describes how to use the 980 HDMI Protocol Analyzer to view live video. Please note however that you can only
view the live video on the built-in GUI through the Real Time Video panel. You cannot view the incoming live video
on the 980 GUI Manager application.
